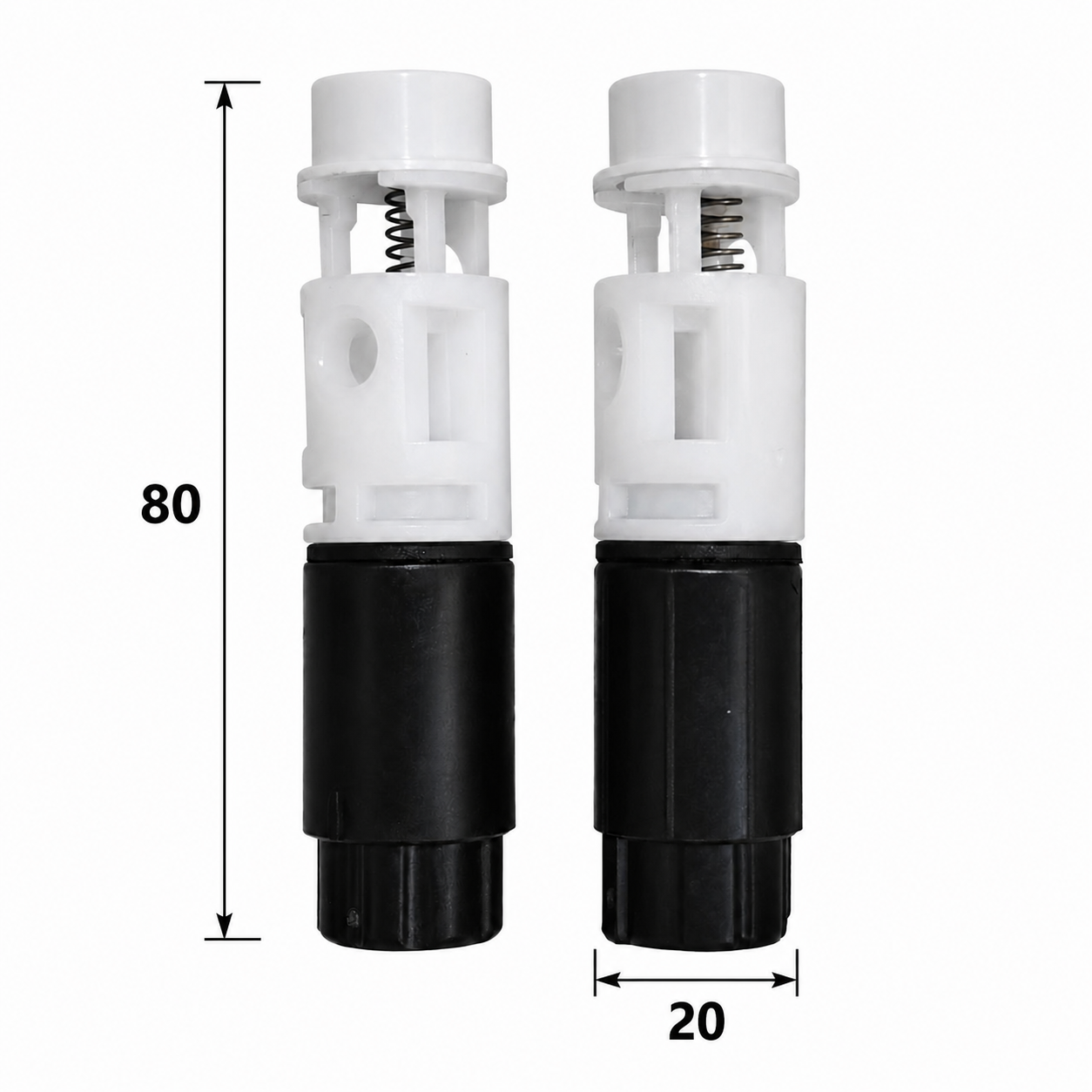

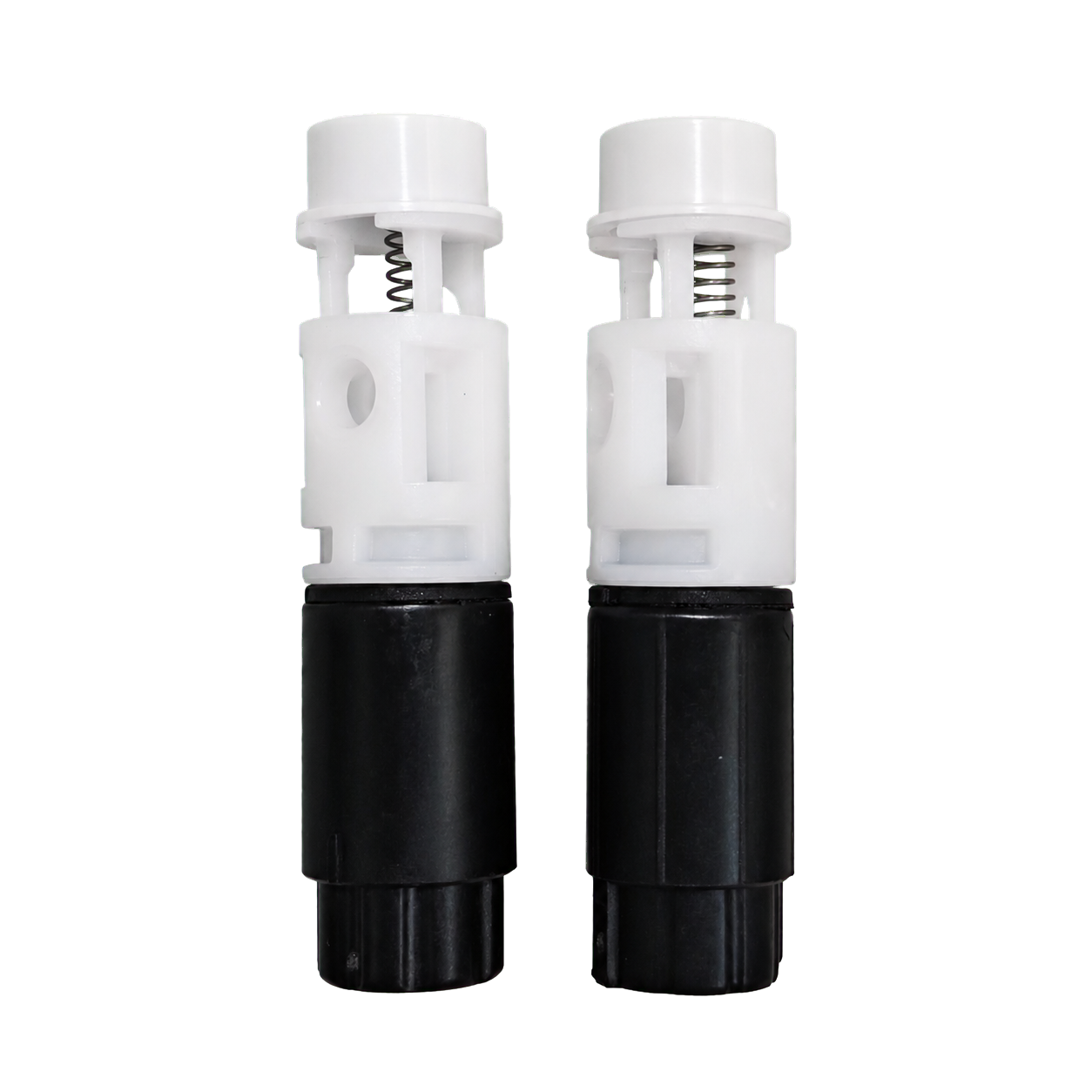

20 mm Diameter 2-Button Quick-Release Soft-Close Hinge Damper

Developed for removable PP and UF toilet seats, TY-D10-202K2 integrates soft-close damping with a two-button quick-release interface. Pressing both buttons releases the seat from its hinge mounts, providing clear access around the fixing area for easier cleaning. Factory-customized torque from 1.5 to 3.5 N·m helps the damper match different lid weights and hinge designs.

Designed for PP and UF soft-close toilet seats, TY-D28-202K combines a 20 mm diameter damper with a dual-button quick-release hinge system. Pressing the two release points allows the seat to detach in two clicks, making the hinge area easier to clean. Factory-customized torque from 1.5 to 3.5 N·m helps match different lid weights and OEM hinge structures.

TY-D16-202K is a 20 mm diameter two-button quick-release damper developed for PP and UF soft-close toilet seats. Its two-click mechanism allows the seat to be detached by pressing both release buttons, giving easier access around the hinge area for cleaning and maintenance. Factory-customized torque options from 1.5 to 3.5 N·m help OEM manufacturers match the closing response to different lid weights and hinge designs.

Designed for PP and UF toilet seats, TY-D13-232K combines a 23 mm diameter soft-close damper with a two-button quick-release system. Pressing both buttons unlocks the seat from the hinge assembly for fast removal, making cleaning around the mounting area easier. The damper controls lid descent, while factory-customized torque options from 1.5 to 3.5 N·m support different seat weights and hinge designs.

TY-D10-20KL is a 20 mm diameter keyless pull-out quick-release damper for UF soft-close toilet seats. Its internal clip structure secures the seat to the hinge mounting posts without release buttons, creating a simple connection that supports direct removal for cleaning and maintenance. Factory-customized torque options from 1.5 to 3.5 N·m allow the closing response to be matched to different lid weights and hinge designs.

TY-D25*-16KL is a premium 16 mm diameter super-slim damper for UF soft-close toilet seats. Its keyless pull-out quick-release structure uses internal clips to secure the seat without visible release buttons, supporting a cleaner hinge design. The seat can be removed directly for easier cleaning and maintenance. Factory-set torque options from 1.5 to 3.5 N·m help match different lid weights.

TY-D22-18 is a versatile 18 mm diameter rotary vane damper for products requiring smooth, controlled lid movement. Beyond PP and UF toilet seats, it can be integrated into washing machine lids, air cooler covers, rice cooker lids and other household appliances. Its compact structure supports flexible installation, while factory-set torque options from 1.5 to 3.5 N·m allow the closing response to be matched to different lid weights and product designs.

TY-D11-202KL combines keyless pull-out quick-release and soft-close functions in a 20 mm diameter damper for UF toilet seats. Internal retaining clips hold the seat securely on the hinge mounting posts without release buttons. When cleaning or maintenance is required, the seat can be pulled off directly for convenient access around the hinge area. Factory-set torque options from 1.5 to 3.5 N·m support different lid weights.

TY-D10-202K1 is a 20 mm diameter two-button damper for PP and UF soft-close toilet seats. Its Two Click quick-release structure allows the seat to be detached by pressing both buttons, providing easier access around the hinge area for cleaning and maintenance. Factory-customized torque options from 1.5 to 3.5 N·m help match the closing response to different lid weights and hinge layouts.

Designed for premium UF toilet seat systems, TY-D3-16KL uses a super-slim 16 mm diameter damper with a button-free lift-off connection. Internal retaining clips secure the seat when it is pressed onto the hinge mounting posts; lifting the seat straight upward releases it for cleaning. The slim profile supports refined hinge designs, while factory-customized torque options from 1.5 to 3.5 N·m match different lid weights.

TY-D1-242K is a 24 mm diameter two-button quick-release damper developed for PP and UF soft-close toilet seats. Its Two Click mechanism allows the seat to be detached by pressing the two release buttons, providing easier access around the hinge area for cleaning and maintenance. Factory-customized torque options from 1.5 to 4 N·m help match different seat weights and closing requirements.

TY-D28-20 is a 20 mm diameter vane damper developed for PP and UF soft-close toilet seats. Its PA66+50%GF shaft combines structural rigidity with dimensional stability, helping maintain consistent torque transfer during repeated lid movement. Factory-customized torque options from 1.5 to 3.5 N·m allow the closing performance to be matched to different seat weights and OEM hinge designs.

TY-D27-20 brings controlled motion to PP and UF toilet seat covers using a compact 20 mm diameter vane damper. As the lid closes, the rotary mechanism generates resistance to slow its descent and soften the final contact. A PA66+50%GF shaft reinforces the torque-bearing section for dependable power transmission. Factory-set torque options from 1.5 to 3.5 N·m are available for OEM seat development.

TY-D24-20 is a 20 mm diameter rotary vane damper designed for soft-close PP and UF toilet seats. The PA66+50%GF shaft provides high structural rigidity, helping transfer torque consistently and guide the seat or lid through a smooth closing motion. Available with factory-set torque options from 1.5 to 3.5 N·m, it can be matched to different lid weights and OEM hinge designs.

Created for PP and UF toilet seats that use a visible hinge layout, TY-D23-20 combines a 20 mm diameter vane damper with a decorative exposed, keyless structure. This configuration lets the damping component become part of the hinge presentation while delivering controlled soft closing. Its PA66+50%GF shaft offers high rigidity and dimensional stability, and factory-set torque options from 1.5 to 3.5 N·m support different seat designs.

For PP and UF toilet seat hinge systems, TY-D19-20 combines a 20 mm diameter concealed vane structure with a POM+30%GF reinforced shaft. The material’s stiffness, dimensional stability and wear resistance help maintain dependable torque transfer during repeated opening and closing. Factory-set torque options from 1.5 to 3.5 N·m provide controlled soft-close movement for different seat designs.

Built for manufacturers developing PP and UF soft-close toilet seats, TY-D18-20 integrates a 20 mm diameter vane damper within concealed hinge assemblies. The PA66+50%GF shaft combines stiffness with dimensional stability, helping transmit torque consistently through repeated opening and closing. Factory-customized torque from 1.5 to 3.5 N·m supports matching to different seat and lid designs.

Designed for space-limited PP and UF toilet seat hinges, TY-D17-16 uses a super-slim 16 mm diameter body to deliver controlled soft closing without adding bulk to the hinge system. A rigid zinc alloy shaft supports reliable torque transfer, while factory-customized torque options from 1.5 to 3.5 N·m help match different seat and lid weights.

Designed for toilet seat manufacturers seeking dependable long-term soft-close control, TY-D16-20 combines a concealed vane structure with a PA66+50%GF shaft. The reinforced shaft provides high rigidity and dimensional stability, helping maintain reliable torque transfer through repeated hinge movement. Rated for 50,000+ operating cycles, it supports PP and UF seats with factory-customized torque for different designs.

TY-D15-20 improves the closing experience of PP and UF toilet seats by slowing the lid before impact, helping reduce slamming and unwanted noise. Its concealed vane structure stays neatly inside the hinge for a clean finished appearance. The PA66+50%GF shaft adds rigidity and dimensional stability, while factory-customized 1.5–3.5 N·m torque allows the closing response to be matched to different seat designs.
