Ø16 mm Super-Slim Rotary Vane Damper with Zinc Alloy Shaft for PP/UF Toilet Seat

TY-D2-16 is an ultra-slim Ø16 mm soft-close vane damper for toilet seat and lid applications. Its compact diameter enables discreet hinge integration, minimizing exposed components for a cleaner, more streamlined appearance while delivering quiet, smooth and stable closing.
The zinc alloy shaft provides high strength, dimensional stability and corrosion resistance, while the PA66 reinforced with 50% glass fiber offers excellent rigidity, wear resistance and long-term structural stability.
Ø16 mm Super-Slim Rotary Vane Damper with Zinc Alloy Shaft for PP/UF Toilet Seat
Ø16 mm Super-Slim Rotary Vane Damper with Zinc Alloy Shaft for PP/UF Toilet Seat product view

Technical Specifications

Specification
Value
Product CODE
TY-D2-16
Product Type
Vane Damper One Button Damper Dual Button Damper Rotary Damper Pull-Out Damper
Slow Close Time
10-20S
Silicone Oil
Imported
Core / Shaft Material
PA66 + 50% GF Zinc Alloy POM+30%GF
Housing Material
POM+30%GF PA66+30%GF PBT PA66+50%GF
Opening Angle
110°
Rotation Direction
One-way Two-way
Adjustable Torque Or Not
Yes No
Torque Range
1.5-3.5 N·m 1.5-4 N·m 1.5-4.5 N·m Custom Torque
Color
Custom
Working Temperature
-10℃-50℃
Application
Toilet Seat Rice Cooker Air Cooler Washing Machine Air Purifier Coffee Machine Smart Trash Can Vacuum Dust Bin Other Home Appliances
OEM / ODM Service
Available

Dimensions & Technical Drawing

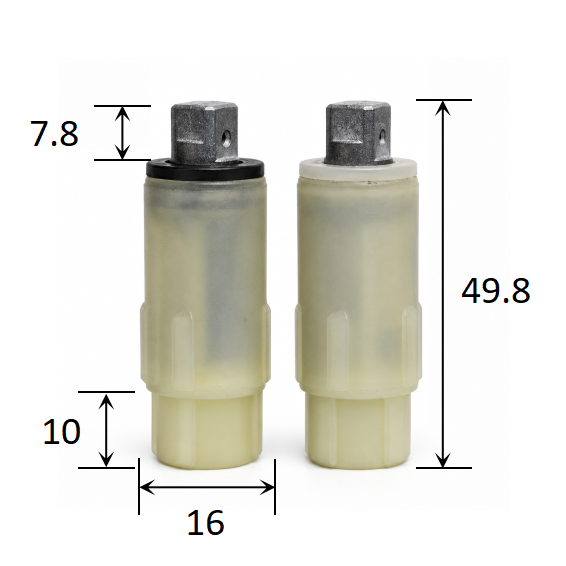

Ø16 mm Super-Slim Rotary Vane Damper with Zinc Alloy Shaft for PP/UF Toilet Seat dimensions

Development & Manufacturing Process

Development process for Ø16 mm Super-Slim Rotary Vane Damper with Zinc Alloy Shaft for PP/UF Toilet Seat

Applications & Use Cases

One Button Quick Release Toilet Seat
One Button Quick Release Toilet Seat
Two Button Quick Release Toilet Seat
Two Button Quick Release Toilet Seat
Lift-Off Quick Release Toilet Seat
Lift-Off Quick Release Toilet Seat
Soft Close Toilet Seat
Soft Close Toilet Seat
UF Toilet Seat
UF Toilet Seat
PP Toilet Seat
PP Toilet Seat
