20 mm Diameter Custom-Torque Vane Damper for Quiet Toilet Seat Closing

Built for manufacturers developing PP and UF soft-close toilet seats, TY-D18-20 integrates a 20 mm diameter vane damper within concealed hinge assemblies. The PA66+50%GF shaft combines stiffness with dimensional stability, helping transmit torque consistently through repeated opening and closing. Factory-customized torque from 1.5 to 3.5 N·m supports matching to different seat and lid designs.
20 mm Diameter Custom-Torque Vane Damper for Quiet Toilet Seat Closing

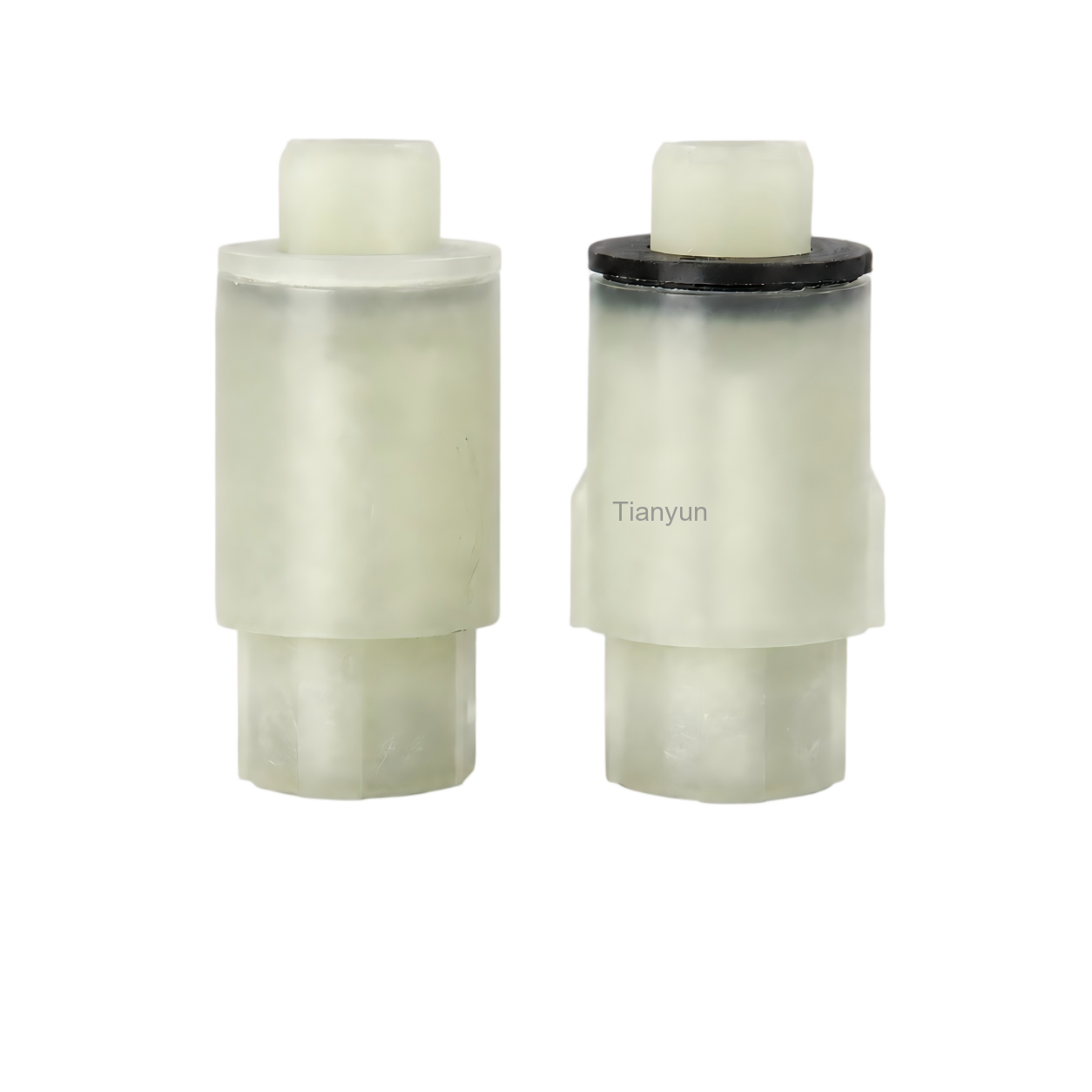

20 mm Diameter Custom-Torque Vane Damper for Quiet Toilet Seat Closing product view

Technical Specifications

Specification
Value
Product CODE
TY-D18-20
Product Type
Vane Damper One Button Damper Dual Button Damper Rotary Damper Pull-Out Damper
Slow Close Time
10-20S
Silicone Oil
Imported
Core / Shaft Material
PA66 + 50% GF Zinc Alloy POM+30%GF
Housing Material
POM+30%GF PA66+30%GF PBT PA66+50%GF
Opening Angle
110°
Rotation Direction
One-way Two-way
Adjustable Torque Or Not
Yes No
Torque Range
1.5-3.5 N·m 1.5-4 N·m 1.5-4.5 N·m Custom Torque
Color
Custom
Working Temperature
-10℃-50℃
Application
Toilet Seat Rice Cooker Air Cooler Washing Machine Air Purifier Coffee Machine Smart Trash Can Vacuum Dust Bin Other Home Appliances
OEM / ODM Service
Available

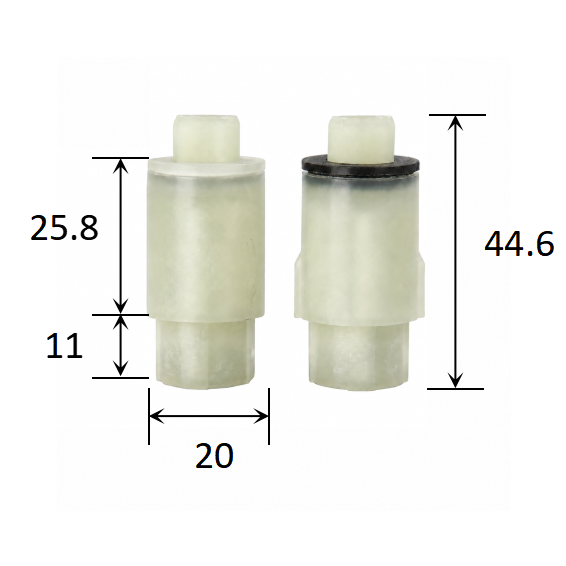

Dimensions & Technical Drawing

20 mm Diameter Custom-Torque Vane Damper for Quiet Toilet Seat Closing dimensions

Development & Manufacturing Process

Development process for 20 mm Diameter Custom-Torque Vane Damper for Quiet Toilet Seat Closing

Applications & Use Cases

One Button Quick Release Toilet Seat
One Button Quick Release Toilet Seat
Lift-Off Quick Release Toilet Seat
Lift-Off Quick Release Toilet Seat
Two Button Quick Release Toilet Seat
Two Button Quick Release Toilet Seat
Soft Close Quick Release Toilet Seat
Soft Close Quick Release Toilet Seat
UF Quick Release Toilet Seat
UF Quick Release Toilet Seat
