Home Products Vane Damper Ø20 mm 22 mm Diameter High Torque Soft Close Rotary Damper for UF Toilet Seats

22 mm Diameter High Torque Soft Close Rotary Damper for UF Toilet Seats

TY-D7-22 is designed for UF toilet seat projects requiring higher torque capacity. Its torque can be factory matched from 1.5–4.5 N·m to suit different cover weights and closing requirements. The PA66+50%GF shaft combines high rigidity with good dimensional stability for reliable torque transmission, while the concealed 22 mm structure integrates neatly into soft-close hinge assemblies.
22 mm Diameter High Torque Soft Close Rotary Damper for UF Toilet Seats

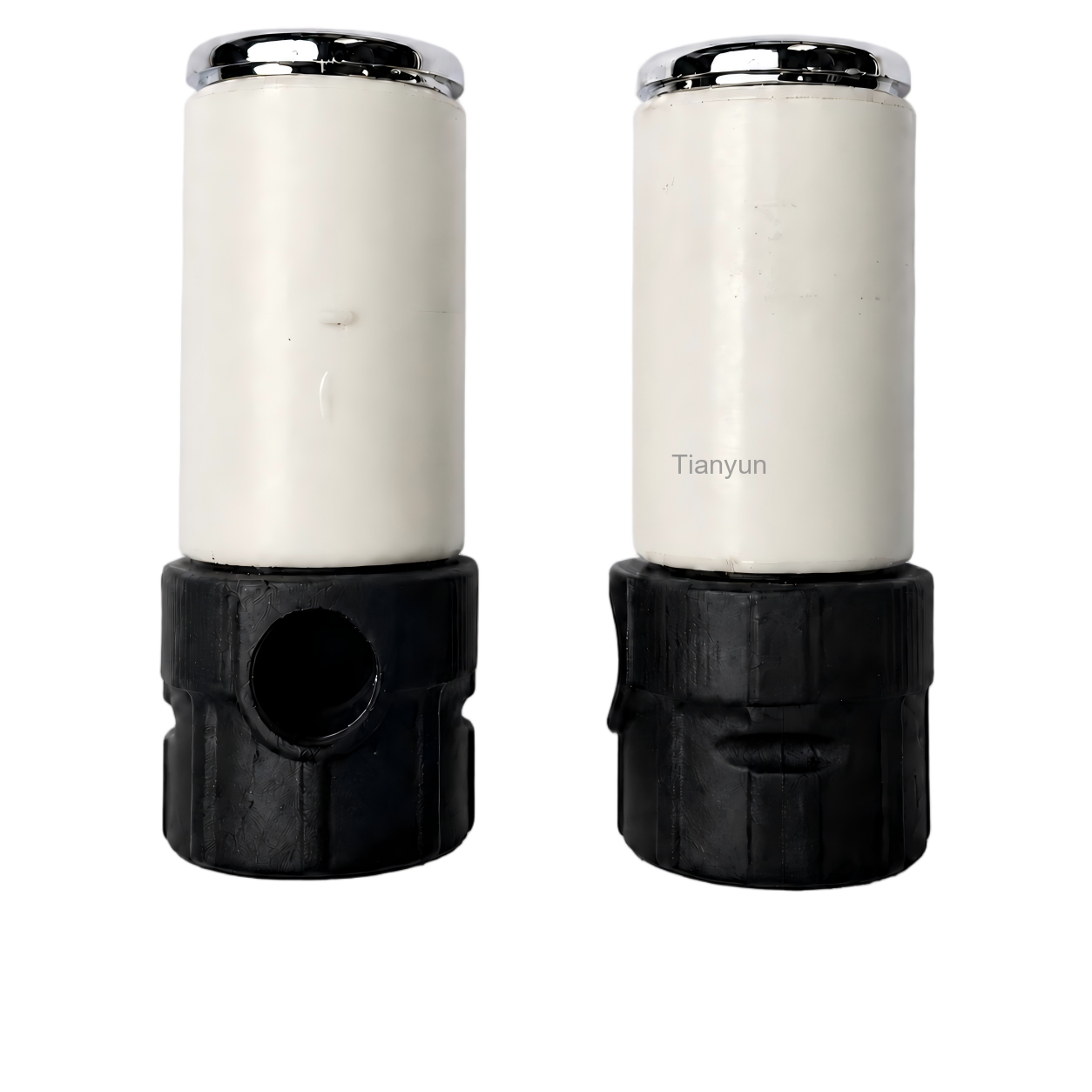

22 mm Diameter High Torque Soft Close Rotary Damper for UF Toilet Seats product view

Technical Specifications

Specification
Value
Product CODE
TY-D7-22
Product Type
Vane Damper One Button Damper Dual Button Damper Rotary Damper Pull-Out Damper
Slow Close Time
10-20S
Silicone Oil
Imported
Core / Shaft Material
PA66 + 50% GF Zinc Alloy POM+30%GF
Housing Material
POM+30%GF PA66+30%GF PBT PA66+50%GF
Opening Angle
110°
Rotation Direction
One-way Two-way
Adjustable Torque Or Not
Yes No
Torque Range
1.5-3.5 N·m 1.5-4 N·m 1.5-4.5 N·m Custom Torque
Color
Custom
Working Temperature
-10℃-50℃
Application
Toilet Seat Rice Cooker Air Cooler Washing Machine Air Purifier Coffee Machine Smart Trash Can Vacuum Dust Bin Other Home Appliances
OEM / ODM Service
Available

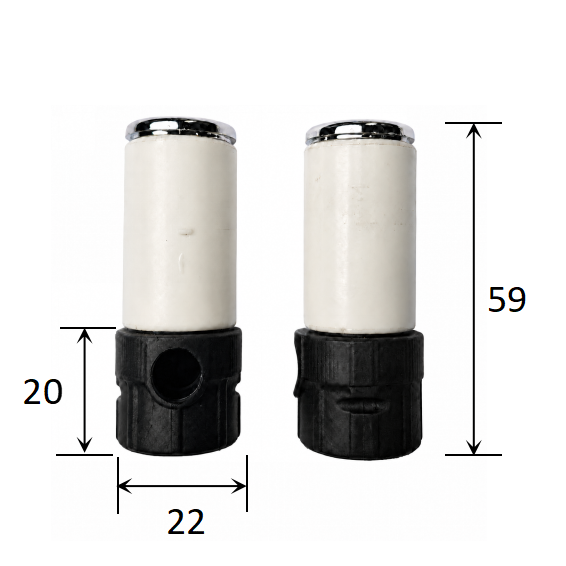

Dimensions & Technical Drawing

22 mm Diameter High Torque Soft Close Rotary Damper for UF Toilet Seats dimensions

Development & Manufacturing Process

Development process for 22 mm Diameter High Torque Soft Close Rotary Damper for UF Toilet Seats

Applications & Use Cases

MDF Toilet Seat
MDF Toilet Seat
Resin toilet seat
Resin toilet seat
Wooden toilet seat
Wooden toilet seat
Bamboo toilet seat
Bamboo toilet seat
