20 mm Diameter Soft Close Rotary Vane Damper for PP UF Toilet Seats

TY-D24-20 is a 20 mm diameter rotary vane damper designed for soft-close PP and UF toilet seats. The PA66+50%GF shaft provides high structural rigidity, helping transfer torque consistently and guide the seat or lid through a smooth closing motion. Available with factory-set torque options from 1.5 to 3.5 N·m, it can be matched to different lid weights and OEM hinge designs.
20 mm Diameter Soft Close Rotary Vane Damper for PP UF Toilet Seats

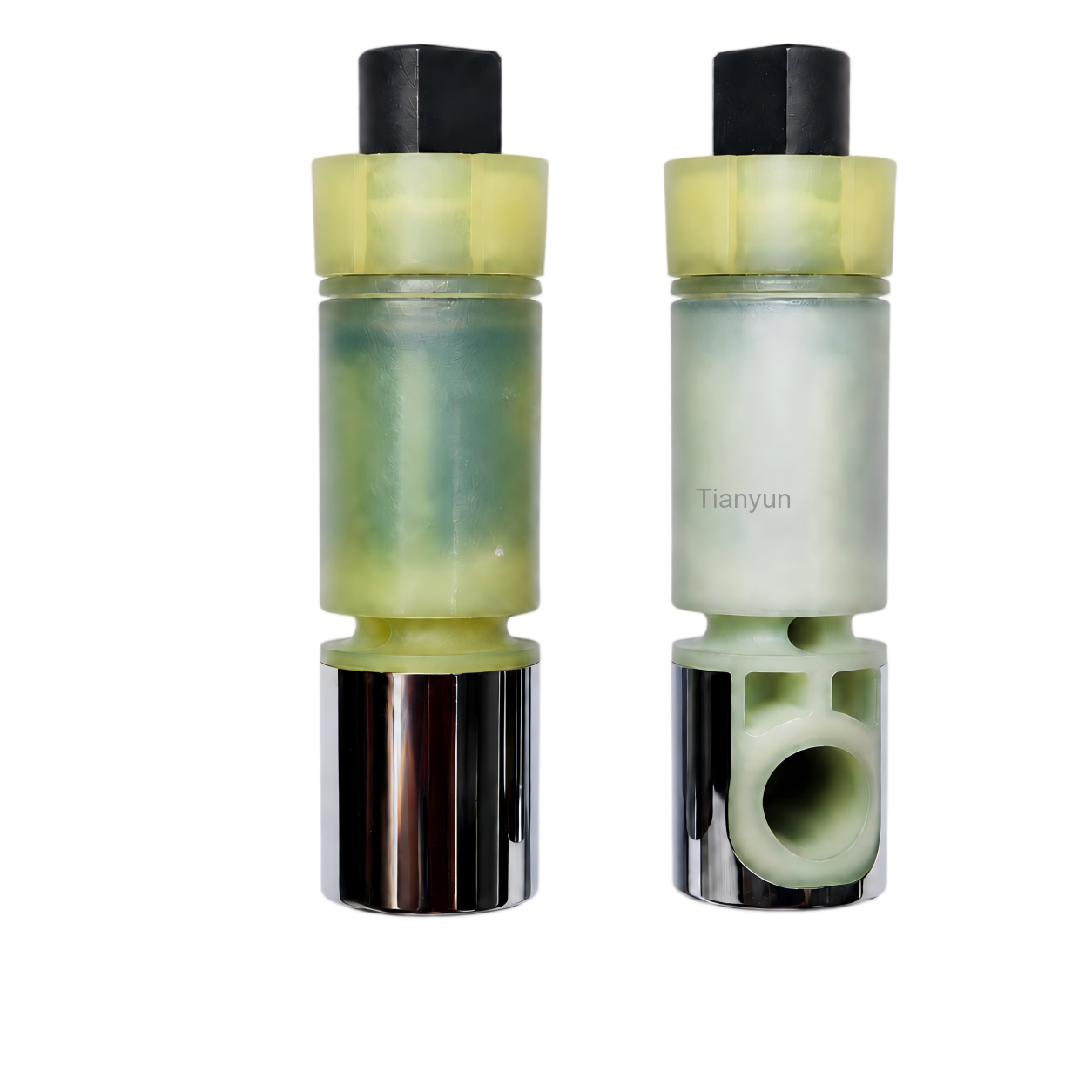

20 mm Diameter Soft Close Rotary Vane Damper for PP UF Toilet Seats product view

Technical Specifications

Specification
Value
Product CODE
TY-D24-20
Product Type
Vane Damper One Button Damper Dual Button Damper Rotary Damper Pull-Out Damper
Slow Close Time
10-20S
Silicone Oil
Imported
Core / Shaft Material
PA66 + 50% GF Zinc Alloy POM+30%GF
Housing Material
POM+30%GF PA66+30%GF PBT PA66+50%GF
Opening Angle
110°
Rotation Direction
One-way Two-way
Adjustable Torque Or Not
Yes No
Torque Range
1.5-3.5 N·m 1.5-4 N·m 1.5-4.5 N·m Custom Torque
Color
Custom
Working Temperature
-10℃-50℃
Application
Toilet Seat Rice Cooker Air Cooler Washing Machine Air Purifier Coffee Machine Smart Trash Can Vacuum Dust Bin Other Home Appliances
OEM / ODM Service
Available

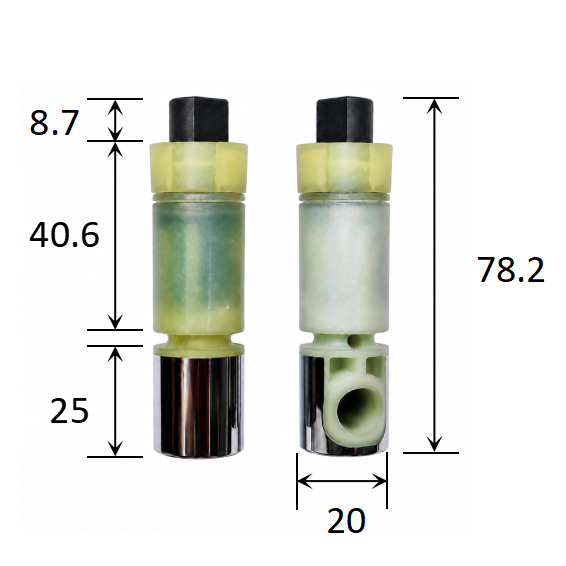

Dimensions & Technical Drawing

20 mm Diameter Soft Close Rotary Vane Damper for PP UF Toilet Seats dimensions

Development & Manufacturing Process

Development process for 20 mm Diameter Soft Close Rotary Vane Damper for PP UF Toilet Seats

Applications & Use Cases

Lift-Off Quick Release Toilet Seat
Lift-Off Quick Release Toilet Seat
Soft Close Toilet Seat
Soft Close Toilet Seat
PP Toilet Seat
PP Toilet Seat
UF Toilet Seat
UF Toilet Seat
