Home Products Two-Click Dampers Keyless Pull-Out Dampers 20 mm Diameter Pull-Out Quick-Release Damper for UF Toilet Seats

20 mm Diameter Pull-Out Quick-Release Damper for UF Toilet Seats

TY-D11-202KL combines keyless pull-out quick-release and soft-close functions in a 20 mm diameter damper for UF toilet seats. Internal retaining clips hold the seat securely on the hinge mounting posts without release buttons. When cleaning or maintenance is required, the seat can be pulled off directly for convenient access around the hinge area. Factory-set torque options from 1.5 to 3.5 N·m support different lid weights.
20 mm Diameter Pull-Out Quick-Release Damper for UF Toilet Seats

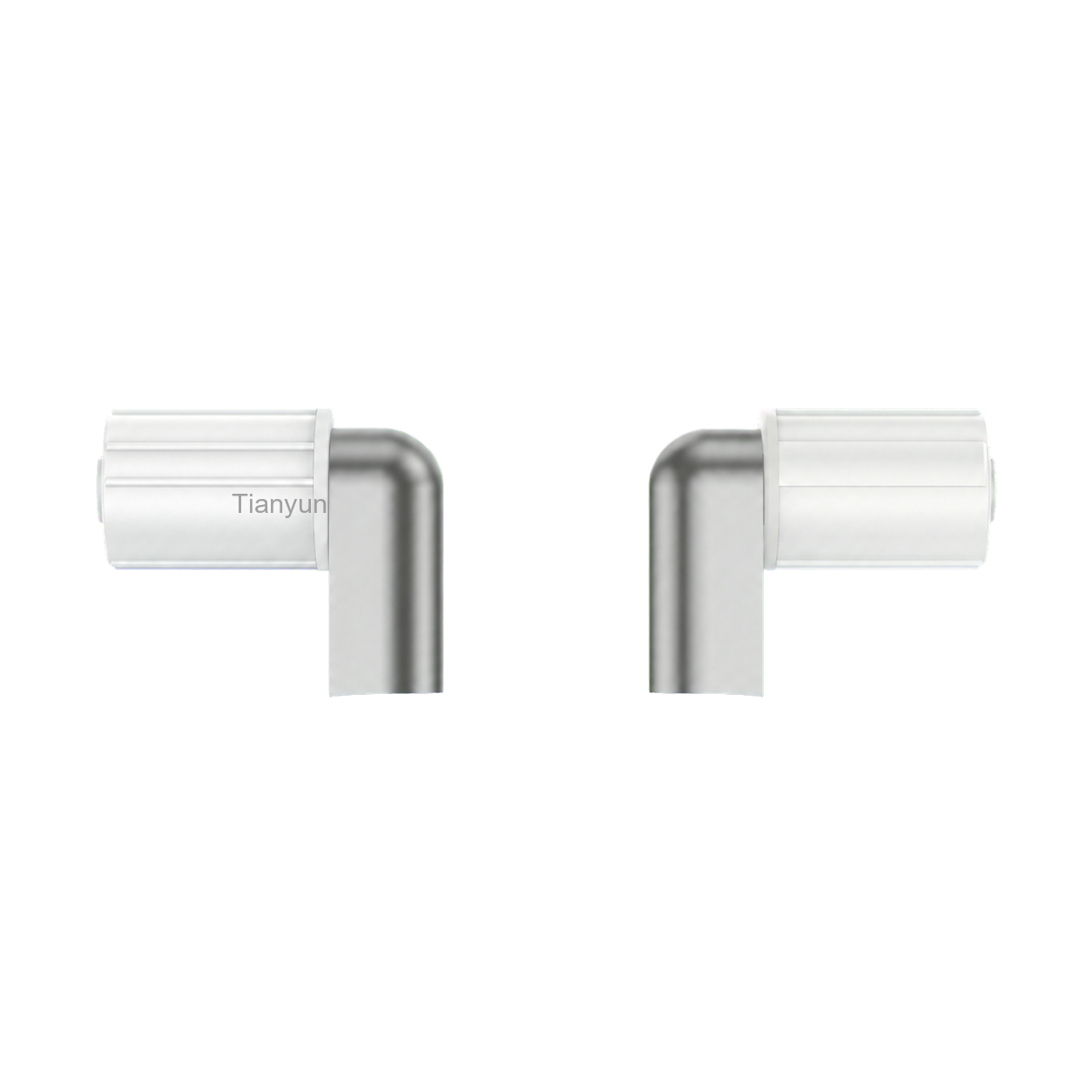

20 mm Diameter Pull-Out Quick-Release Damper for UF Toilet Seats product view

Technical Specifications

Specification
Value
Product CODE
TY-D11-202KL
Product Type
Vane Damper One Button Damper Dual Button Damper Rotary Damper Pull-Out Damper
Slow Close Time
10-20S
Silicone Oil
Imported
Core / Shaft Material
PA66 + 50% GF Zinc Alloy POM+30%GF
Housing Material
POM+30%GF PA66+30%GF PBT PA66+50%GF
Opening Angle
110°
Rotation Direction
One-way Two-way
Adjustable Torque Or Not
Yes No
Torque Range
1.5-3.5 N·m 1.5-4 N·m 1.5-4.5 N·m Custom Torque
Color
Custom
Working Temperature
-10℃-50℃
Application
Toilet Seat Rice Cooker Air Cooler Washing Machine Air Purifier Coffee Machine Smart Trash Can Vacuum Dust Bin Other Home Appliances
OEM / ODM Service
Available

Dimensions & Technical Drawing

20 mm Diameter Pull-Out Quick-Release Damper for UF Toilet Seats dimensions

Development & Manufacturing Process

Development process for 20 mm Diameter Pull-Out Quick-Release Damper for UF Toilet Seats

Applications & Use Cases

Lift-Off Quick Release Toilet Seat
Lift-Off Quick Release Toilet Seat
Soft Close Toilet Seat
Soft Close Toilet Seat
PP Toilet Seat
PP Toilet Seat
UF Toilet Seat
UF Toilet Seat
