M6 Nylon Expansion Top Fixing for Toilet Seats - No Metal Nut Insert

M6 nylon expansion top fixing for toilet seat hinges, featuring a design without an embedded metal nut. Tightening the screw draws the lower section upward and expands the nylon body against the mounting hole to help limit hinge movement. Top installation avoids reaching beneath the pan, making it practical where underside access is restricted. The ribbed sleeve supports grip in a correctly sized hole. Suitable for compatible seat assembly and replacement.
M6 Nylon Expansion Top Fixing for Toilet Seats - No Metal Nut Insert

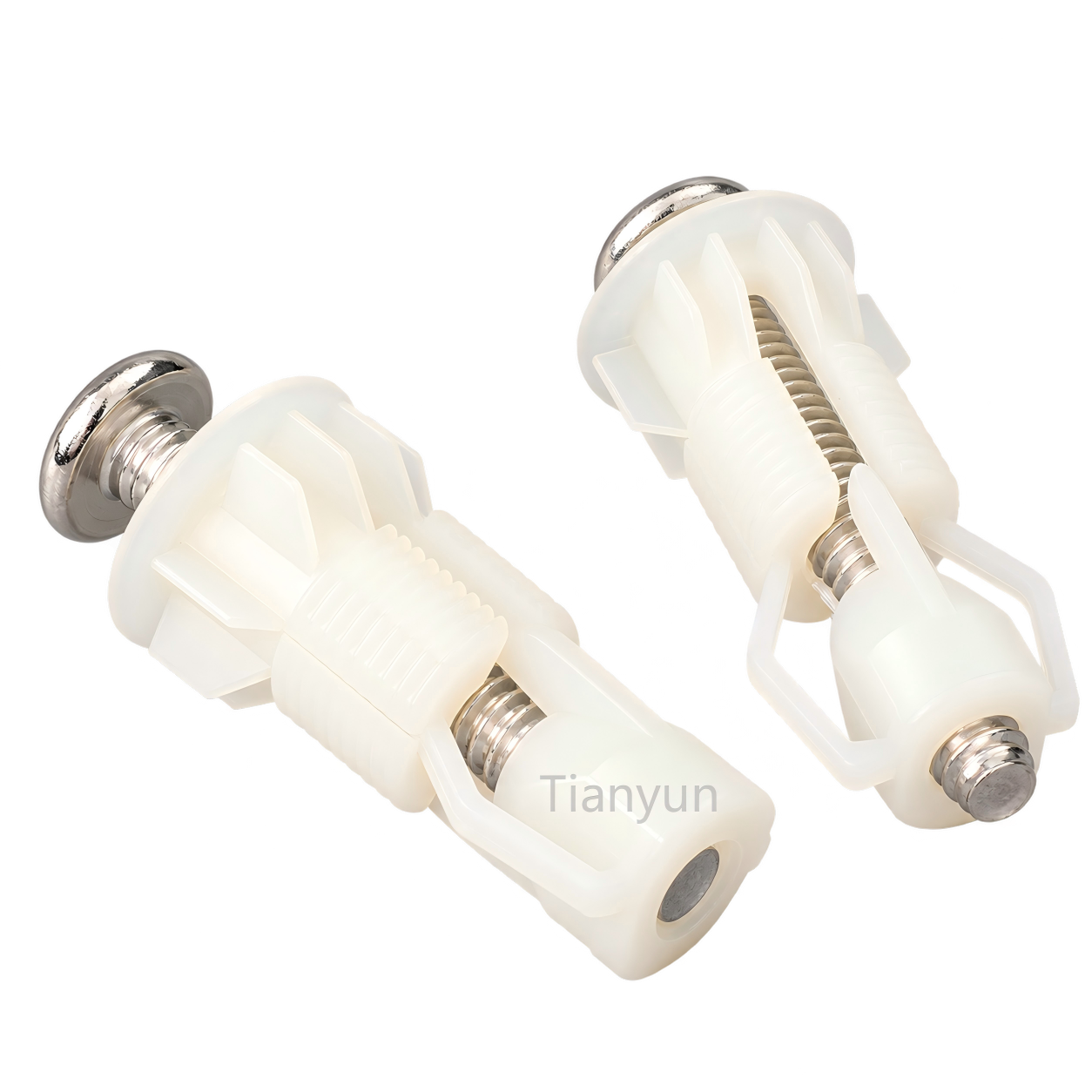

M6 Nylon Expansion Top Fixing for Toilet Seats - No Metal Nut Insert product view

Technical Specifications

Specification
Value
Installation:
Bottom Top
Screw Thread:
M5 M6 Custom
Screw Length:
45mm 55mm 60mm Custom
Color:
Custom
Material:
Full SUS304 Plastic+SUS304 Plastic
OEM / ODM Service:
Available
Compatible Hinge:
One Button Dual Button Keyless Traditional close
Seat Compatibility:
UF PP MDF Wooden Resin

Dimensions & Technical Drawing

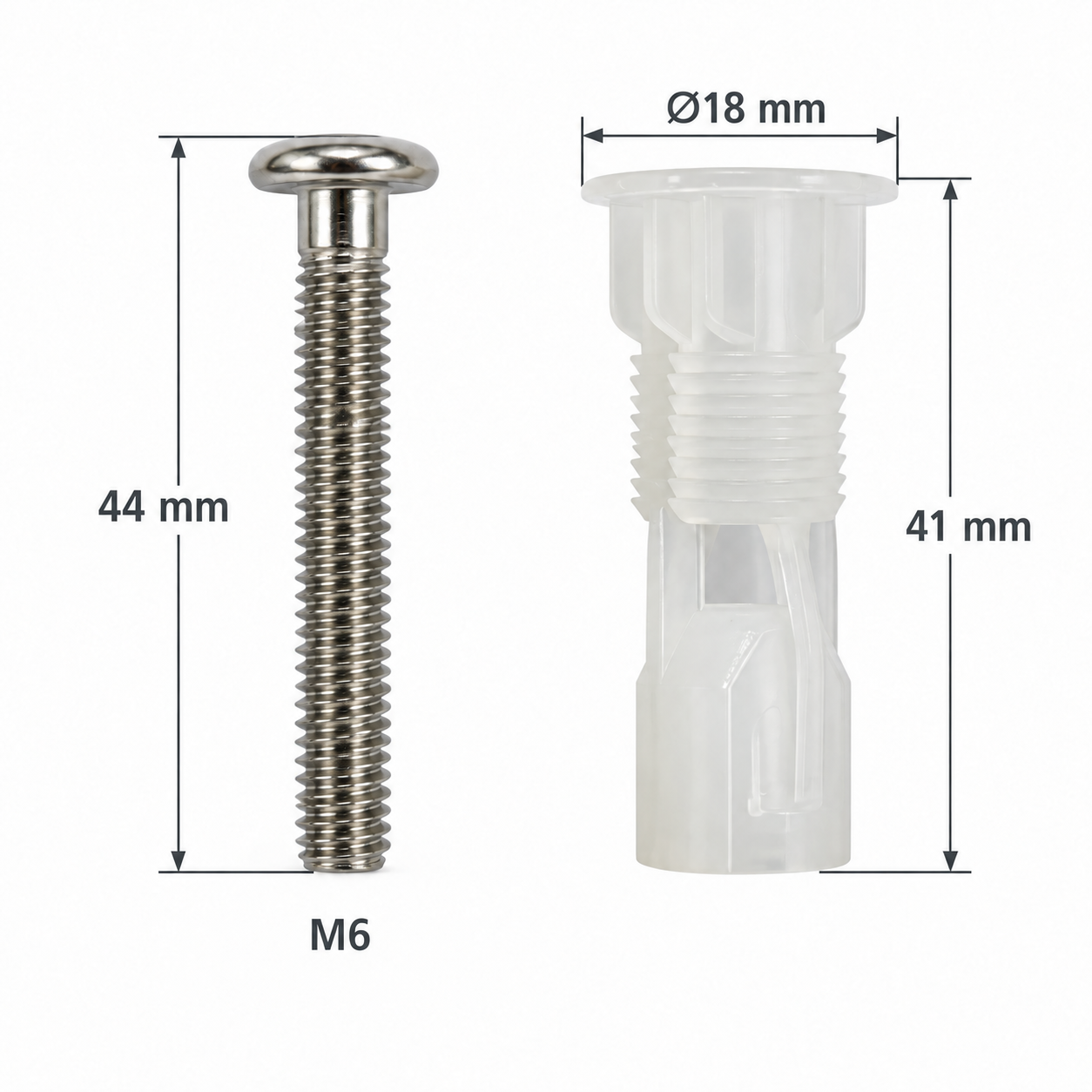

M6 Nylon Expansion Top Fixing for Toilet Seats - No Metal Nut Insert dimensions

Development & Manufacturing Process

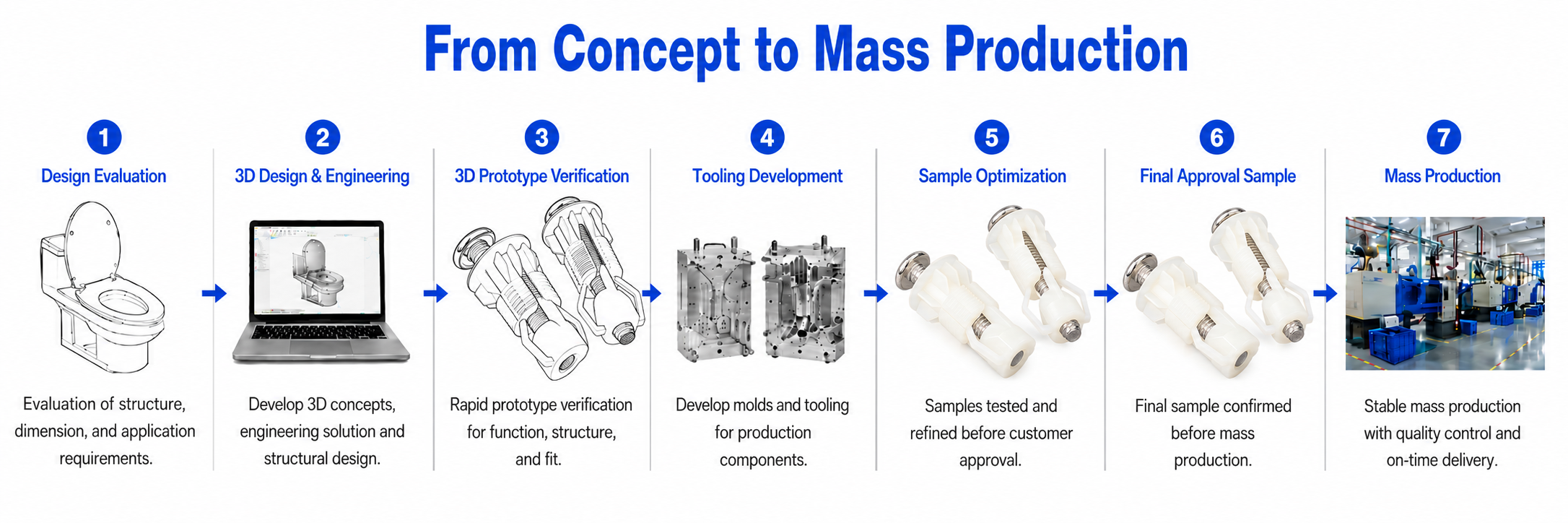

Development process for M6 Nylon Expansion Top Fixing for Toilet Seats - No Metal Nut Insert

Applications & Use Cases

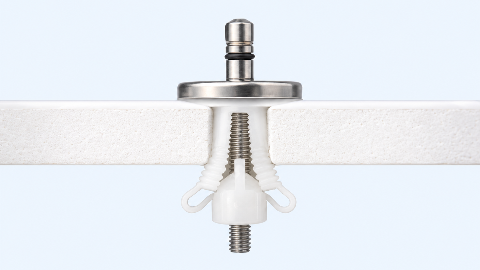

Adjustable Lift-Off Quick Release Hinge Base
Adjustable Lift-Off Quick Release Hinge Base

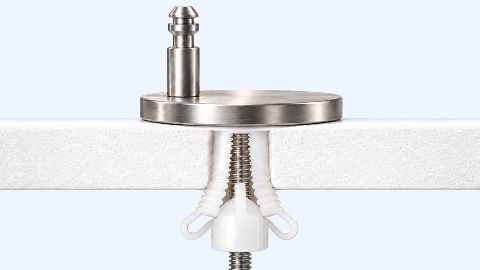

Adjustable Push Button/Lift-Off Quick Release Hinge Base
Adjustable Push Button/Lift-Off Quick Release Hinge Base

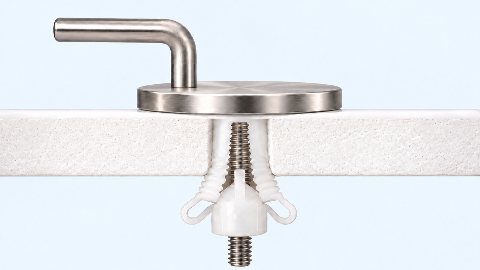

Adjustable Traditional Toilet Seat Hinge Base
Adjustable Traditional Toilet Seat Hinge Base
