Fixed Base Traditional Toilet Seat Hinge with Slot Top Lock for PP WC Seats

Fixed hinge base for traditional toilet seats with confirmed mounting dimensions, maintaining a preset position for volume production. The slotted top-lock plate passes through the ceramic mounting hole and is tightened from above to clamp beneath it, without underside access. For compatible blind-hole, enclosed and back-to-wall toilets. OEM/ODM development from drawings or samples, custom specifications and decorative cover finishes are available.
Fixed Base Traditional Toilet Seat Hinge with Slot Top Lock for PP WC Seats

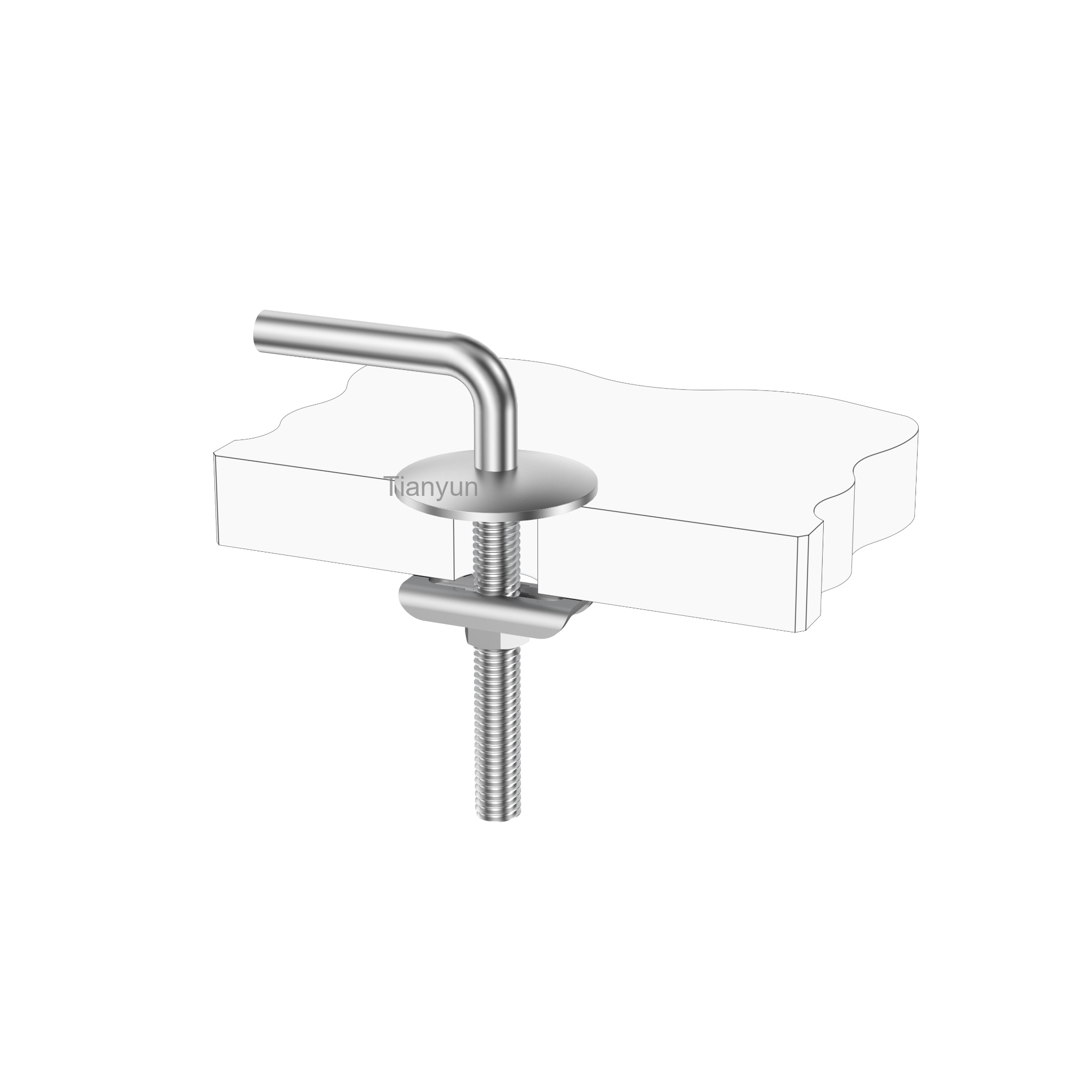

Fixed Base Traditional Toilet Seat Hinge with Slot Top Lock for PP WC Seats product view

Technical Specifications

Specification
Value
Quick Release Type
Click Pull-out Non
Installation
Bottom Top
Adjustable Or Not
Yes No
Pin Diameter
7mm 8mm 10mm Custom
Base Height
Custom
Base Shape
Round Teardrop Square Custom
Screw Thread
M5 M6 Custom
Screw Length
45mm 60mm 80mm Custom 55mm
Base&cover Diameter
45mm 50mm 55mm 60mm Custom 30mm
Base&cover Material
Full SUS304 Plastic+SUS304 Zinc Alloy
Surface Finish
Polished Brushed Matte Custom
Color
Custom
OEM / ODM Service
Available
Compatible Hinge
One Button Dual Button Keyless Traditional close
Seat Compatibility
UF PP MDF Wooden Resin

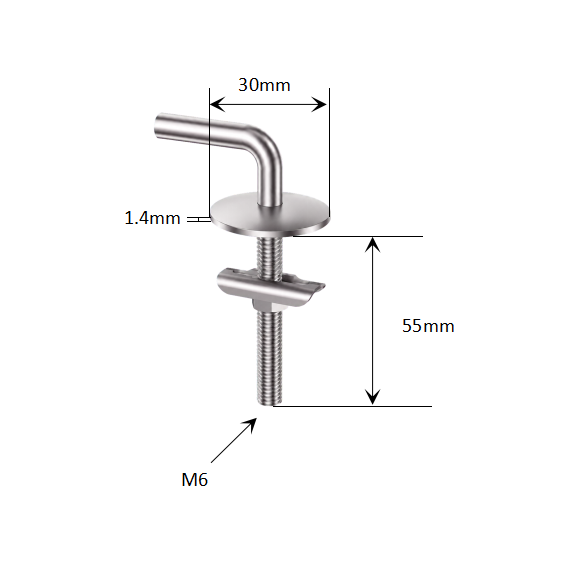

Dimensions & Technical Drawing

Fixed Base Traditional Toilet Seat Hinge with Slot Top Lock for PP WC Seats dimensions

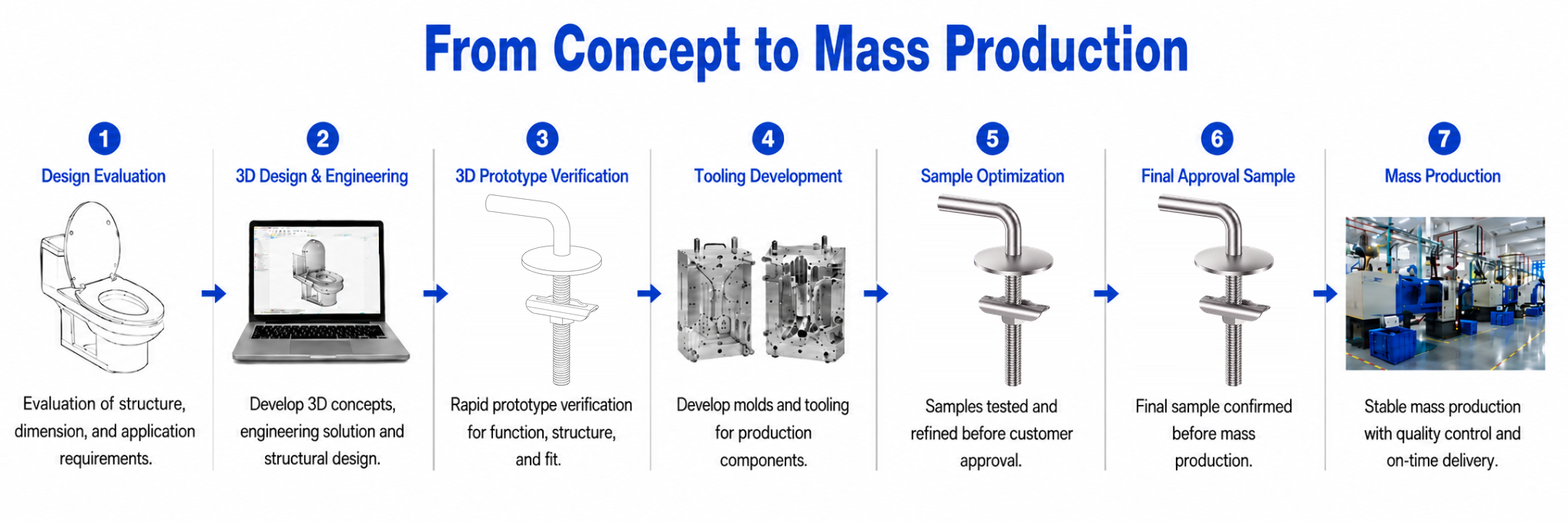

Development & Manufacturing Process

Development process for Fixed Base Traditional Toilet Seat Hinge with Slot Top Lock for PP WC Seats

Applications & Use Cases

PP Toilet Seat
PP Toilet Seat
UF Toilet Seat
UF Toilet Seat
