Quick Release Top Fix Toilet Seat Hinge Base with Fixed Mount and Nylon Expansion Plug

Name: Quick Release Top Fix Toilet Seat Hinge Base with Fixed Mount and Nylon Expansion Plug
Brand: Tianyun

This fixed quick release top fix hinge base uses a nylon expansion plug for installation from above, suiting WC pans where access beneath the ceramic is restricted. Tightening the M6 x 80 mm screw expands the plug inside a compatible mounting hole. The 30 mm round base is polished SUS304 and supports selected one-button and dual-button quick release hinges for PP and UF seats. Check hole diameter, depth and ceramic geometry before ordering because the base is not position-adjustable.

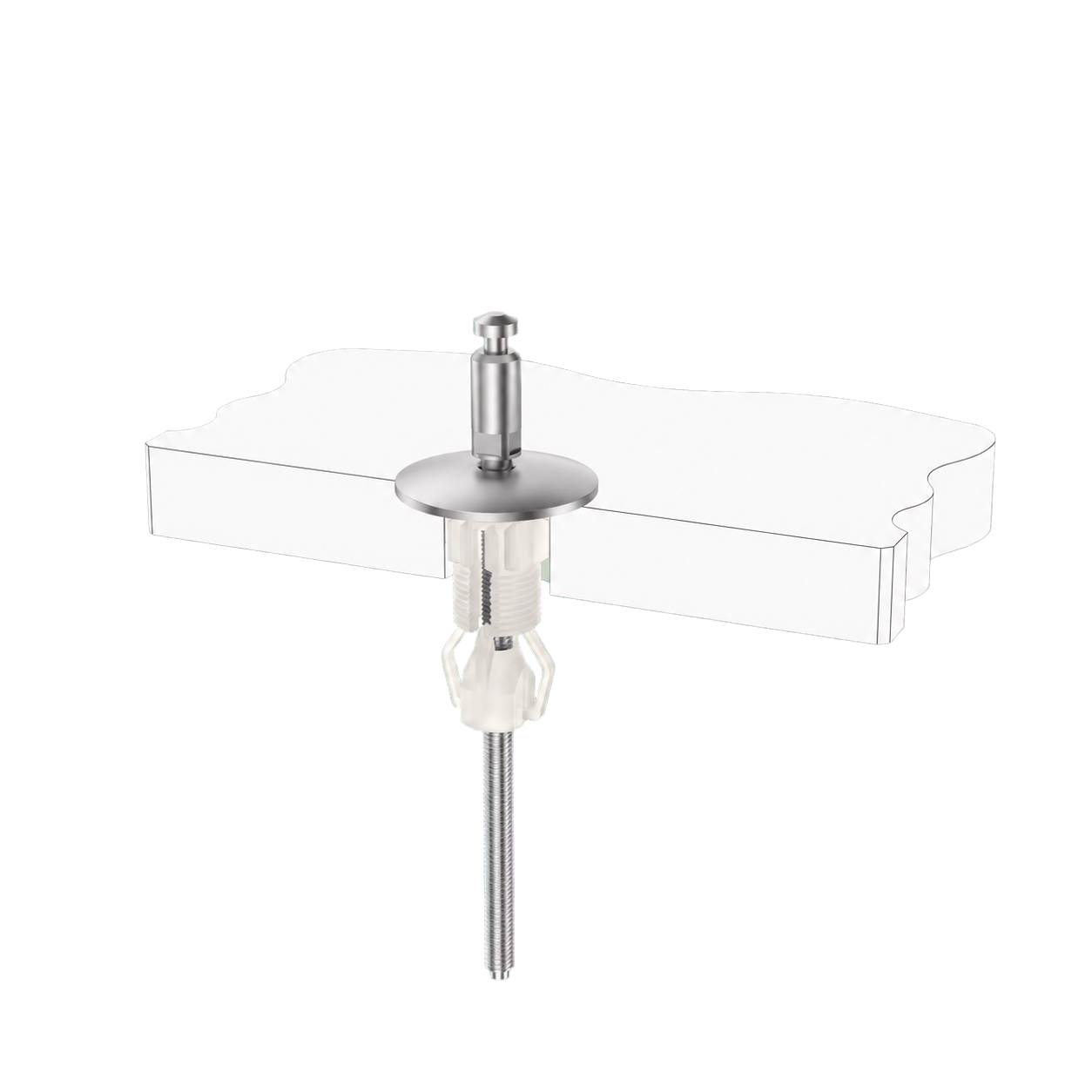

Quick Release Top Fix Toilet Seat Hinge Base with Fixed Mount and Nylon Expansion Plug product view

Technical Specifications

Specification

Value

Quick Release Type

Click Pull-out Non

Installation

Bottom Top

Adjustable Or Not

Yes No

Base Height

Custom

Base Shape

Round Teardrop Square

Screw Thread

M5 M6

Screw Length

45mm 60mm 80mm Custom 55mm

Base&cover Diameter

45mm 50mm 55mm 60mm Custom 30mm

Base&cover Material

Full SUS304 Plastic+SUS304

Surface Finish

Polished Brushed Matte Custom

Color

Custom

Compatible Hinge

One Button Dual Button Keyless Traditional close

Seat Compatibility

UF PP MDF Wooden Resin

OEM / ODM Service

Available

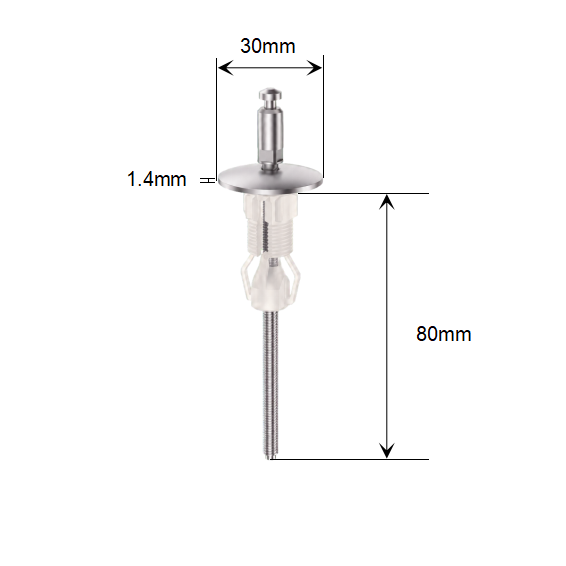

Dimensions & Technical Drawing

Quick Release Top Fix Toilet Seat Hinge Base with Fixed Mount and Nylon Expansion Plug dimensions

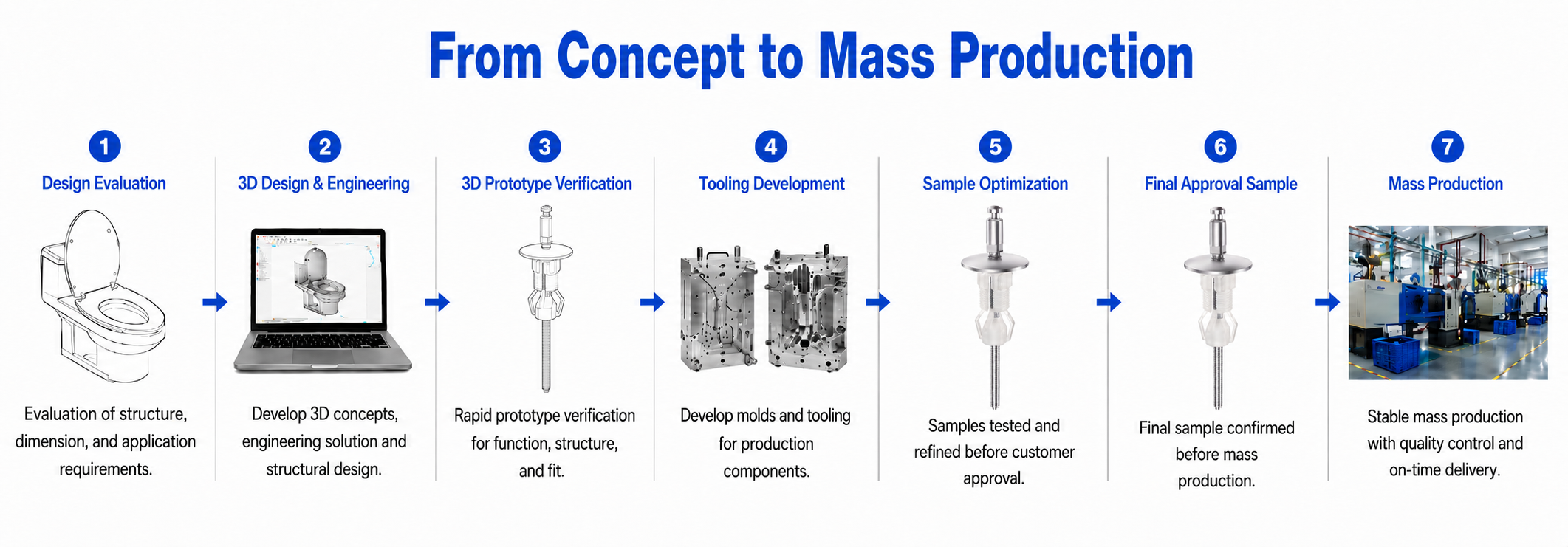

Development & Manufacturing Process

Development process for Quick Release Top Fix Toilet Seat Hinge Base with Fixed Mount and Nylon Expansion Plug

Applications & Use Cases

WC pans matched to nylon expansion plugs

Enclosed toilets with limited underside access

PP and UF quick release seat assembly

Matched replacement and bathroom repair projects

Frequently Asked Questions

How does the nylon expansion plug secure this toilet seat hinge?

The plug is inserted into a compatible ceramic mounting hole from above. As the M6 screw is tightened, the nylon body expands against the inside of the hole to hold the fixed hinge base in position.

When should a nylon expansion fixing be chosen instead of a metal toggle anchor?

The choice depends on the mounting-hole diameter, depth, internal clearance and required clamping method. Nylon expansion plugs suit holes designed for radial expansion, while toggle anchors need enough space below the opening to rotate or spread. Confirm the ceramic drawing before choosing.

Which ceramic-hole measurements are important for this expansion plug?

Check the hole diameter, usable depth, wall profile, hole spacing and surrounding ceramic condition. Also confirm that the 30 mm base and M6 x 80 mm screw fit the seat and pan assembly.

Can the nylon expansion plug be reused after removal?

Reuse is not recommended without inspection because an expanded plug may remain deformed or lose holding consistency after removal. For service work, inspect the ceramic hole and use a correctly matched replacement plug when necessary.

Does this fixed base allow hinge-position adjustment?

No. The base is intended for a confirmed mounting position. It is best suited to repeat production or replacement where the seat, hinge and ceramic dimensions are already known.

What should be supplied for an OEM nylon expansion fixing project?

Send the toilet seat and ceramic drawings, mounting-hole dimensions, hinge interface, required finish, expected quantity and any installation test requirements. Samples help verify expansion behavior and assembly fit before volume production.
