Push Button Quick Release Toilet Seat Mounting Kit with Fixed Base and Boat-Type Top Lock

This quick-release toilet seat mounting kit features a fixed stainless steel base and Boat-Type Top Lock. The fixed-position structure is designed for specified mounting dimensions; providing consistent hinge alignment and efficient repeat assembly. Beneath the ceramic; the metal Boat-Type Top Lock creates transverse clamping support to help keep the base stable. Compatible with one-button and two-button quick-release dampers; with OEM development available.
Push Button Quick Release Toilet Seat Mounting Kit with Fixed Base and Boat-Type Top Lock

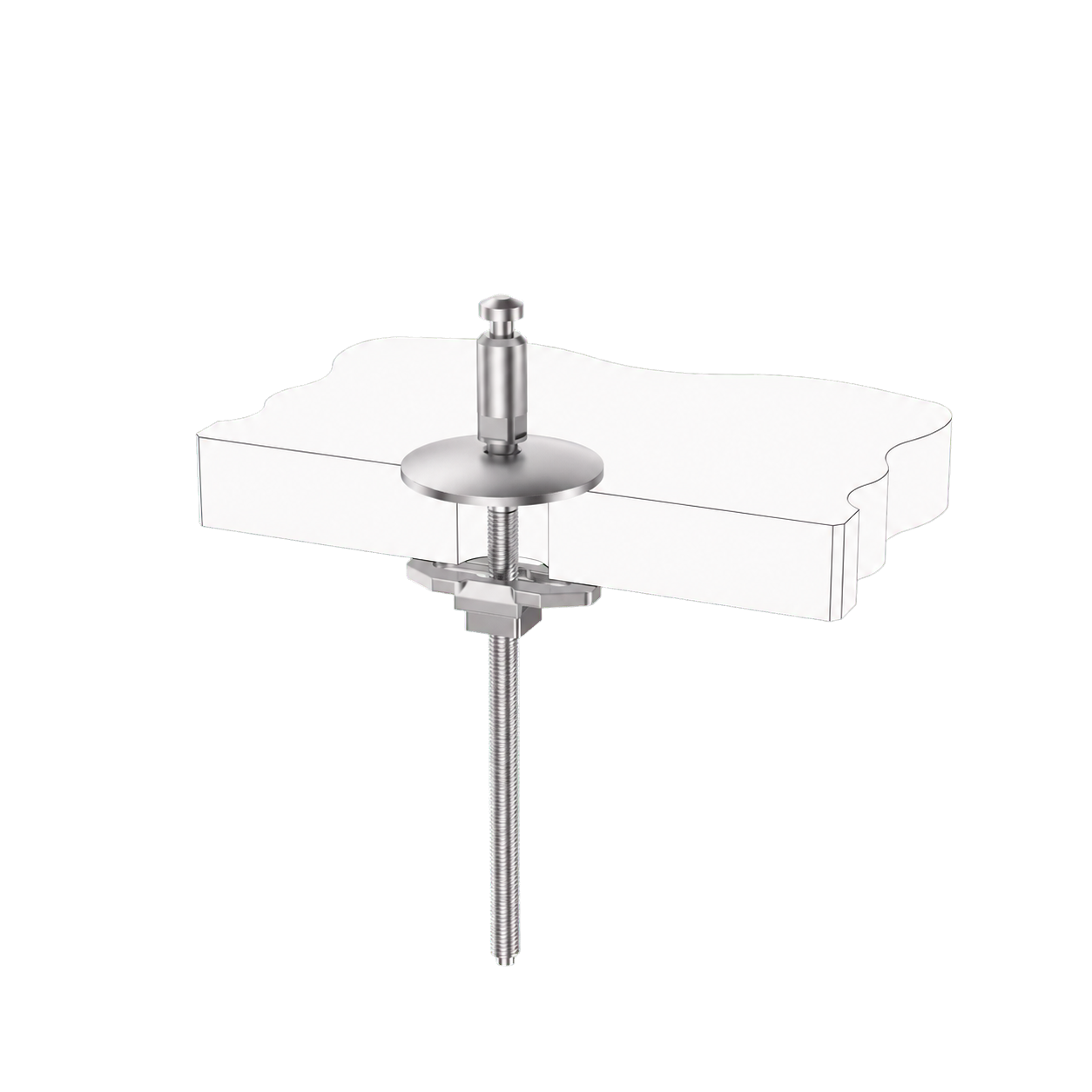

Push Button Quick Release Toilet Seat Mounting Kit with Fixed Base and Boat-Type Top Lock product view

Technical Specifications

Specification
Value
Quick Release Type
Click Pull-out Non
Installation
Bottom Top
Adjustable Or Not
Yes No
Pin Diameter
7mm 8mm 10mm Custom
Base Height
Custom
Base Shape
Round Teardrop Square Custom
Screw Thread
M5 M6 Custom
Screw Length
45mm 60mm 80mm Custom 55mm
Base&cover Diameter
45mm 50mm 55mm 60mm Custom 30mm
Base&cover Material
Full SUS304 Plastic+SUS304 Zinc Alloy
Surface Finish
Polished Brushed Matte Custom
Color
Custom
OEM / ODM Service
Available
Compatible Hinge
One Button Dual Button Keyless Traditional close
Seat Compatibility
UF PP MDF Wooden Resin

Dimensions & Technical Drawing

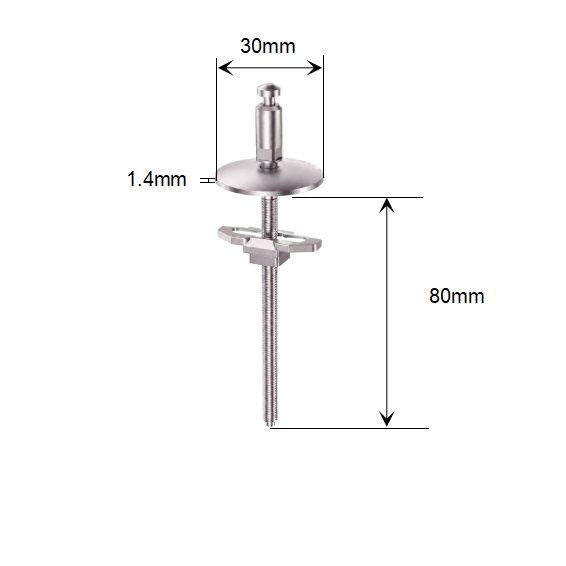

Push Button Quick Release Toilet Seat Mounting Kit with Fixed Base and Boat-Type Top Lock dimensions

Development & Manufacturing Process

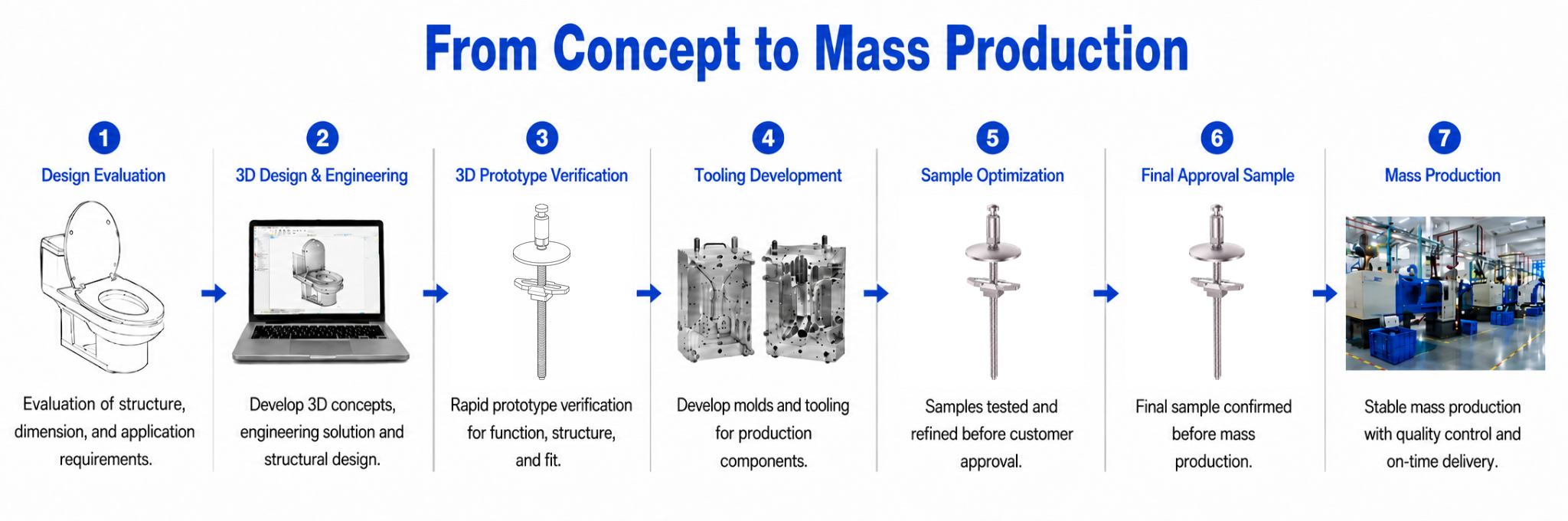

Development process for Push Button Quick Release Toilet Seat Mounting Kit with Fixed Base and Boat-Type Top Lock

Applications & Use Cases

One Button Quick Release Toilet Seat
One Button Quick Release Toilet Seat
Two Button Quick Release Toilet Seat
Two Button Quick Release Toilet Seat
Pull-Out Quick Release Toilet Seat
Pull-Out Quick Release Toilet Seat
Soft Close Toilet Seat
Soft Close Toilet Seat
