Quick-Release Toilet Seat Top Fixing Kit with Fixed Pull-Out Base and Special Lock

This quick-release toilet seat top fixing kit combines a fixed stainless steel keyless pull-out base with a special-shaped top lock. The base connects directly to the damper, so the seat lifts off without pressing a button for easier cleaning. Installed entirely from above, it suits blind-hole, enclosed and back-to-wall toilet pans where underside access is restricted. OEM bases are available to match customer dampers, samples or drawings.
Quick-Release Toilet Seat Top Fixing Kit with Fixed Pull-Out Base and Special Lock

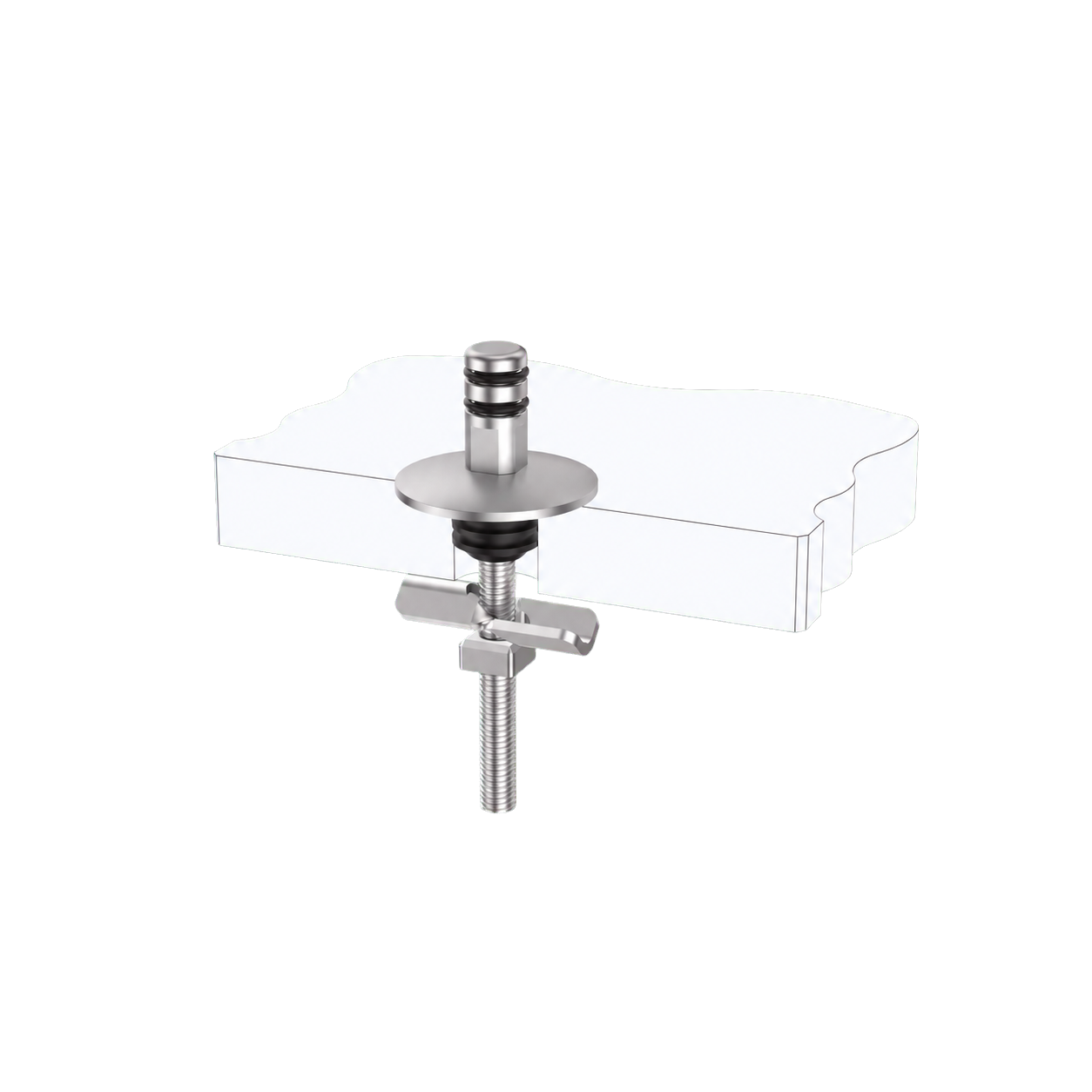

Quick-Release Toilet Seat Top Fixing Kit with Fixed Pull-Out Base and Special Lock product view

Technical Specifications

Specification
Value
Quick Release Type
Click Pull-out Non
Installation
Bottom Top
Adjustable Or Not
Yes No
Base Height
Custom
Base Shape
Round Teardrop Square
Screw Thread
M5 M6
Screw Length
45mm 60mm 80mm Custom 55mm
Base&cover Diameter
45mm 50mm 55mm 60mm Custom 30mm
Base&cover Material
Full SUS304 Plastic+SUS304
Surface Finish
Polished Brushed Matte Custom
Color
Custom
Compatible Hinge
One Button Dual Button Keyless Traditional close
Seat Compatibility
UF PP MDF Wooden Resin
OEM / ODM Service
Available

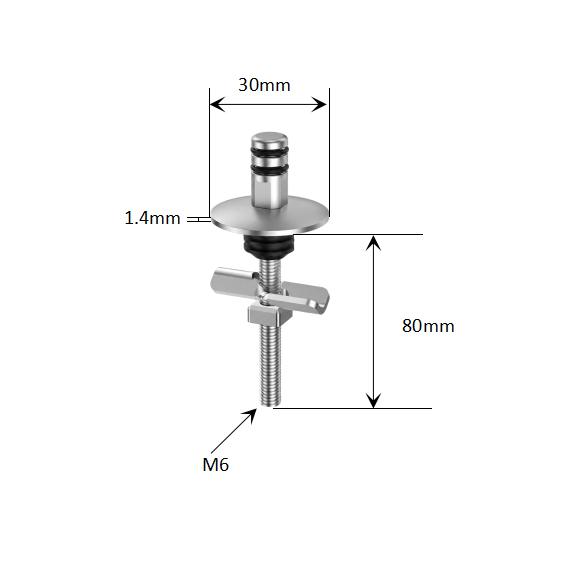

Dimensions & Technical Drawing

Quick-Release Toilet Seat Top Fixing Kit with Fixed Pull-Out Base and Special Lock dimensions

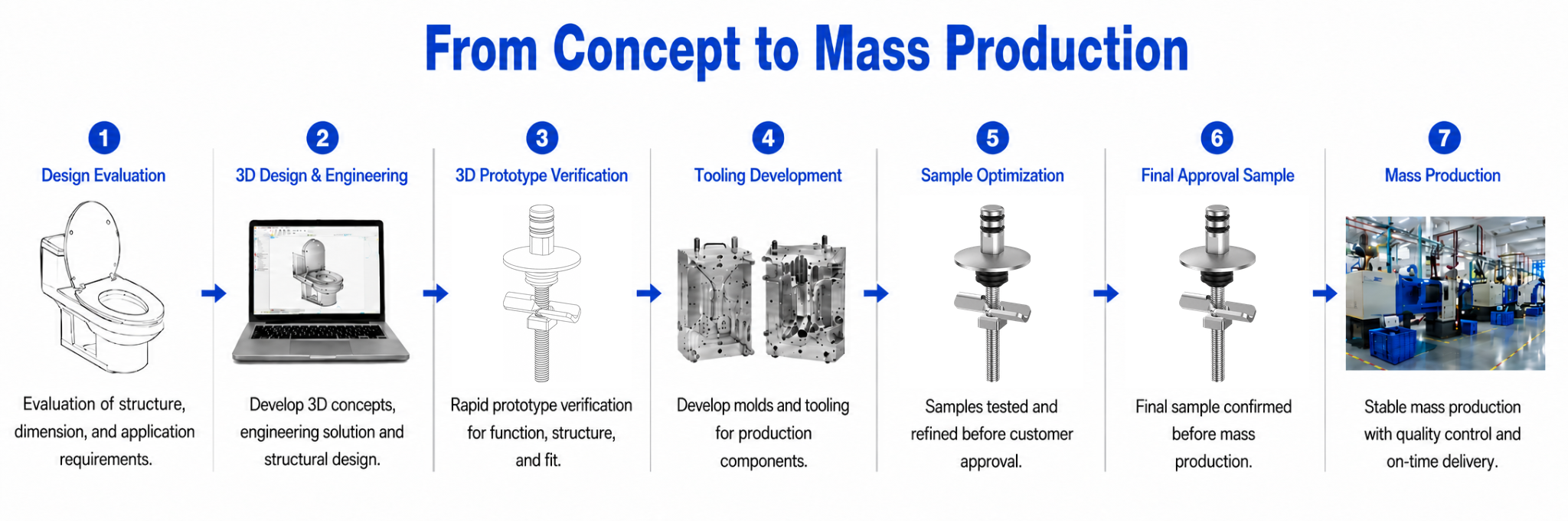

Development & Manufacturing Process

Development process for Quick-Release Toilet Seat Top Fixing Kit with Fixed Pull-Out Base and Special Lock

Applications & Use Cases

Quick-Release Toilet Seat Top Fixing Kit with Fixed Pull-Out Base and Special Lock application
Quick-Release Toilet Seat Top Fixing Kit with Fixed Pull-Out Base and Special Lock application
Quick-Release Toilet Seat Top Fixing Kit with Fixed Pull-Out Base and Special Lock application
Quick-Release Toilet Seat Top Fixing Kit with Fixed Pull-Out Base and Special Lock application
