Quick-Release Toilet Seat Top Fixing Kit with Fixed Pull-Out Base and Slot Top Lock

Built for toilet pans with inaccessible undersides, this top-mount hinge set uses a slot-type lock that can be secured through the fixing hole from above. Its stainless steel fixed base maintains a consistent hinge position for standardized assembly. A keyless pull-out connection links the base directly to the damper, allowing the seat to lift off without pressing a button. Custom development is available based on customer-supplied samples or technical drawings.
Quick-Release Toilet Seat Top Fixing Kit with Fixed Pull-Out Base and Slot Top Lock

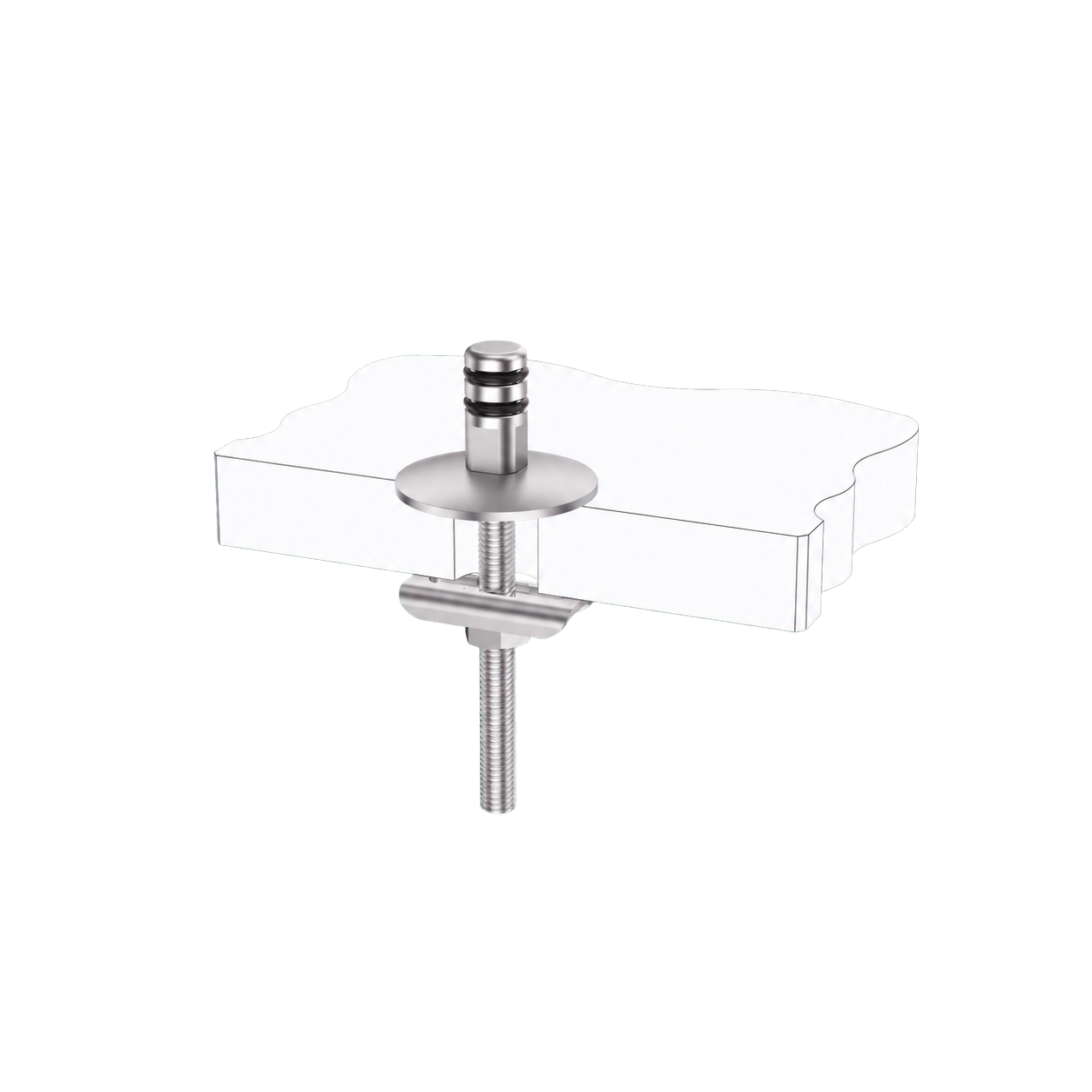

Quick-Release Toilet Seat Top Fixing Kit with Fixed Pull-Out Base and Slot Top Lock product view

Technical Specifications

Specification
Value
Quick Release Type
Click Pull-out Non
Installation
Bottom Top
Adjustable Or Not
Yes No
Base Height
Custom
Base Shape
Round Teardrop Square
Screw Thread
M5 M6
Screw Length
45mm 60mm 80mm Custom 55mm
Base&cover Diameter
45mm 50mm 55mm 60mm Custom 30mm
Base&cover Material
Full SUS304 Plastic+SUS304
Surface Finish
Polished Brushed Matte Custom
Color
Custom
Compatible Hinge
One Button Dual Button Keyless Traditional close
Seat Compatibility
UF PP MDF Wooden Resin
OEM / ODM Service
Available

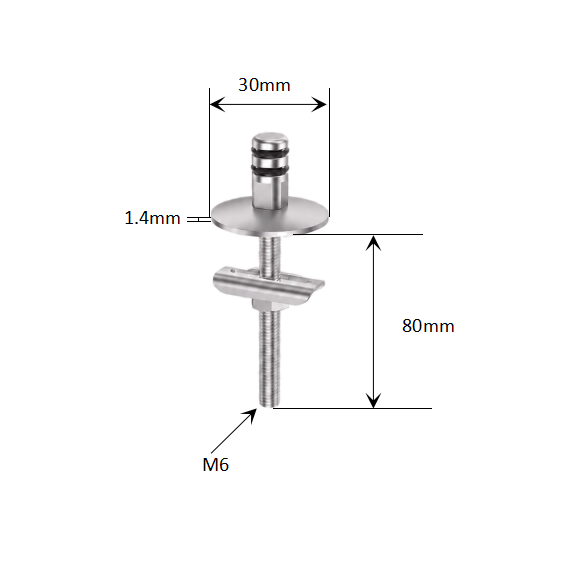

Dimensions & Technical Drawing

Quick-Release Toilet Seat Top Fixing Kit with Fixed Pull-Out Base and Slot Top Lock dimensions

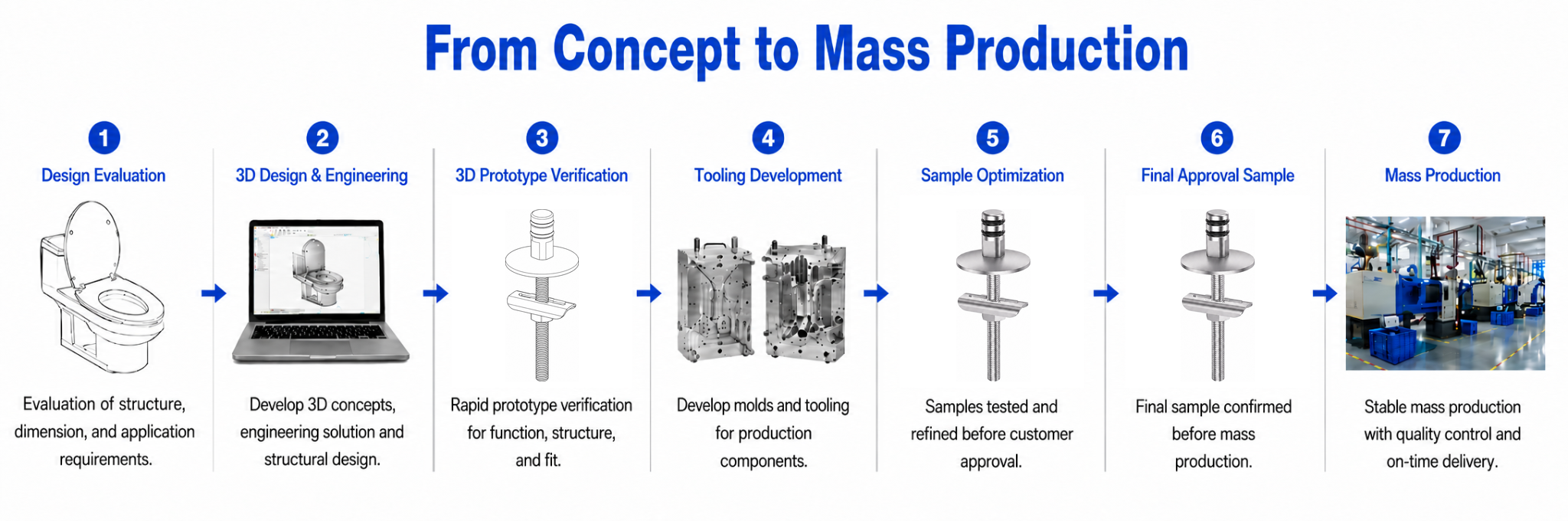

Development & Manufacturing Process

Development process for Quick-Release Toilet Seat Top Fixing Kit with Fixed Pull-Out Base and Slot Top Lock

Applications & Use Cases

Quick-Release Toilet Seat Top Fixing Kit with Fixed Pull-Out Base and Slot Top Lock application
Quick-Release Toilet Seat Top Fixing Kit with Fixed Pull-Out Base and Slot Top Lock application
Quick-Release Toilet Seat Top Fixing Kit with Fixed Pull-Out Base and Slot Top Lock application
Quick-Release Toilet Seat Top Fixing Kit with Fixed Pull-Out Base and Slot Top Lock application
