Fixed Lift-Off Quick-Release Toilet Seat Hinge Kit and Boat-Type Top Lock

This lift-off toilet seat hinge kit combines a fixed stainless steel keyless pull-out base with a Boat-Type Top Lock. The direct plug-in connection allows the seat to be removed by lifting upward, without pressing a release button. Its fixed structure maintains consistent hinge alignment for predefined mounting dimensions. The top-fix system installs from above, making it suitable for enclosed and back-to-wall toilet pans. OEM customization is available from samples or drawings.
Fixed Lift-Off Quick-Release Toilet Seat Hinge Kit and Boat-Type Top Lock
Fixed Lift-Off Quick-Release Toilet Seat Hinge Kit and Boat-Type Top Lock product view

Technical Specifications

Specification
Value
Quick Release Type
Click Pull-out Non
Installation
Bottom Top
Adjustable Or Not
Yes No
Base Height
Custom
Base Shape
Round Teardrop Square
Screw Thread
M5 M6
Screw Length
45mm 60mm 80mm Custom 55mm
Base&cover Diameter
45mm 50mm 55mm 60mm Custom 30mm
Base&cover Material
Full SUS304 Plastic+SUS304
Surface Finish
Polished Brushed Matte Custom
Color
Custom
Compatible Hinge
One Button Dual Button Keyless Traditional close
Seat Compatibility
UF PP MDF Wooden Resin
OEM / ODM Service
Available

Dimensions & Technical Drawing

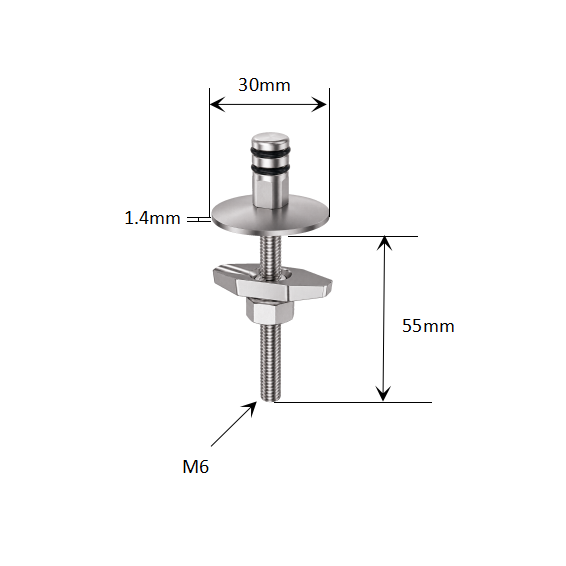

Fixed Lift-Off Quick-Release Toilet Seat Hinge Kit and Boat-Type Top Lock dimensions

Development & Manufacturing Process

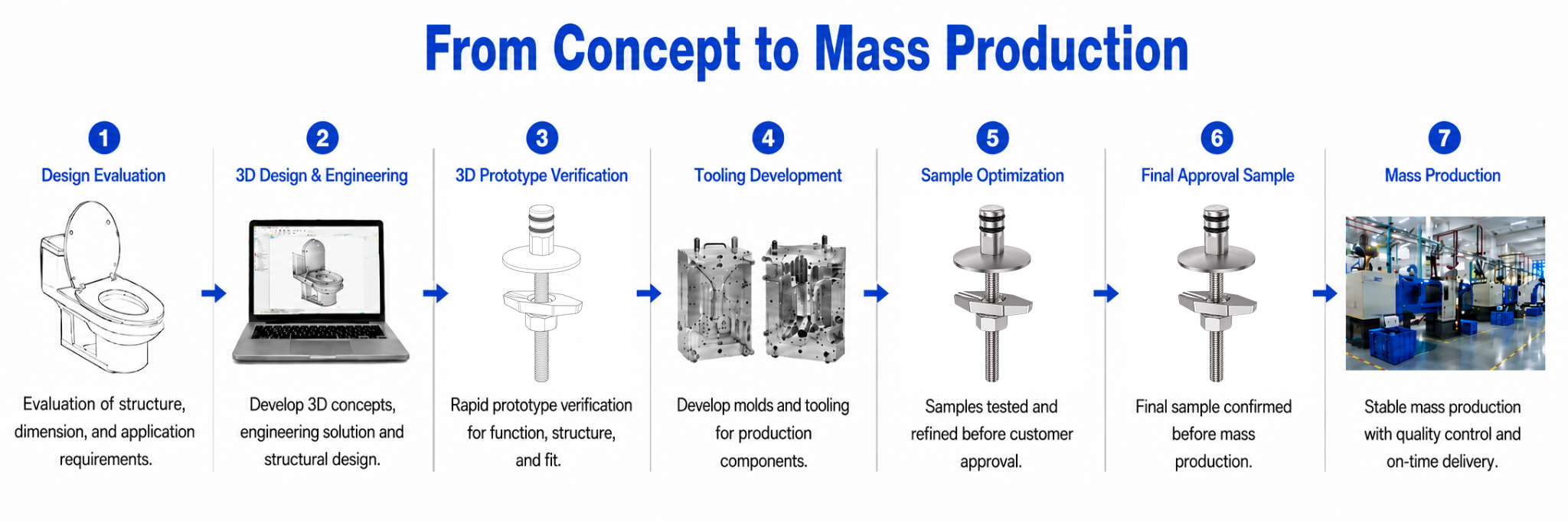

Development process for Fixed Lift-Off Quick-Release Toilet Seat Hinge Kit and Boat-Type Top Lock

Applications & Use Cases

Fixed Lift-Off Quick-Release Toilet Seat Hinge Kit and Boat-Type Top Lock application
Fixed Lift-Off Quick-Release Toilet Seat Hinge Kit and Boat-Type Top Lock application
Fixed Lift-Off Quick-Release Toilet Seat Hinge Kit and Boat-Type Top Lock application
Fixed Lift-Off Quick-Release Toilet Seat Hinge Kit and Boat-Type Top Lock application
