220 mm One Touch Quick Release Damper Hinge for Soft Close Toilet Seats

Created for PP/UF toilet seats, TY-D25/L220 combines a 220 mm hinge with one-button quick release and controlled soft closing. A single press releases the seat from its mounting base, providing easier access for thorough cleaning. Its 25 mm diameter one-button damper is available with customized torque to match different lid weights and OEM hinge structures.
220 mm One Touch Quick Release Damper Hinge for Soft Close Toilet Seats

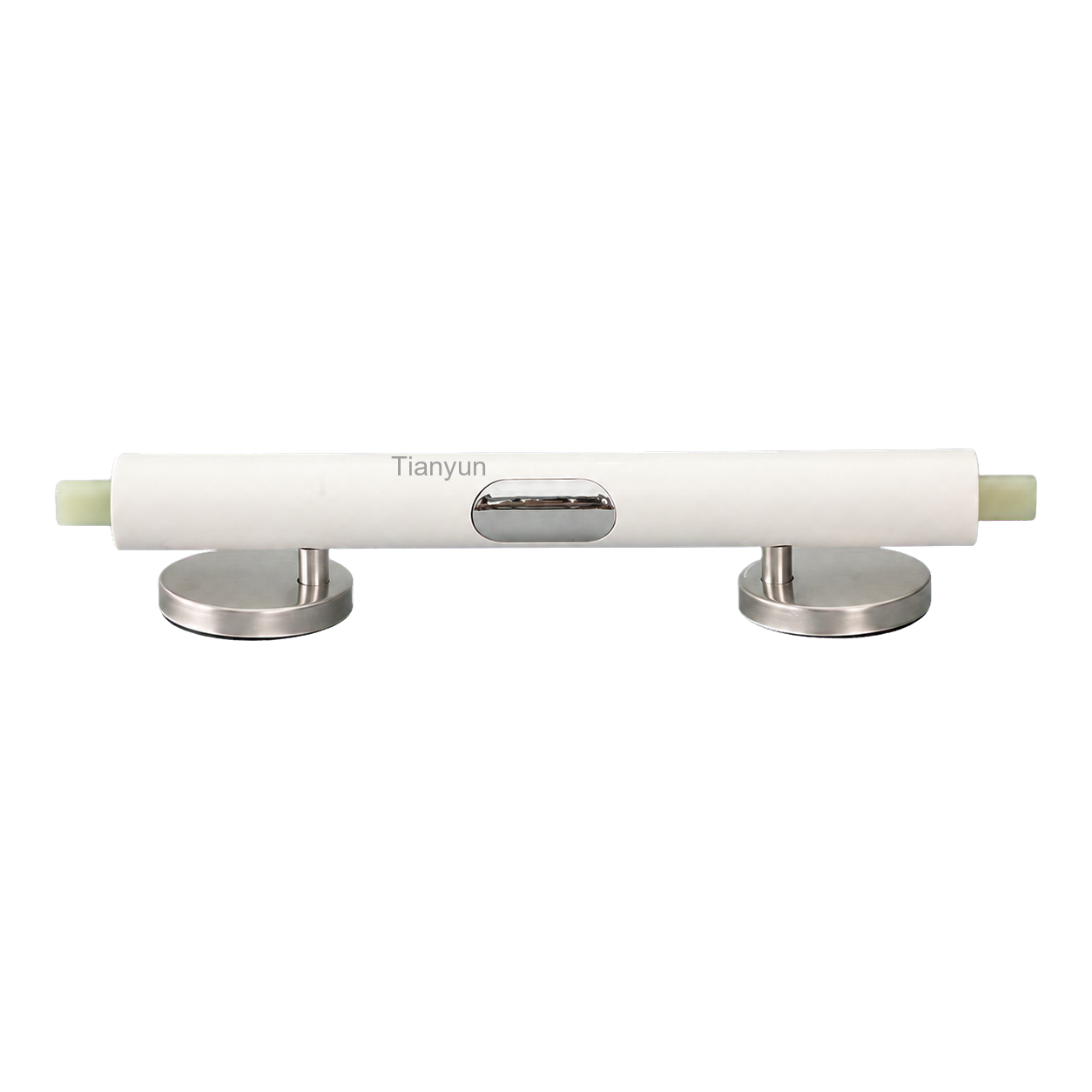

220 mm One Touch Quick Release Damper Hinge for Soft Close Toilet Seats product view

Technical Specifications

Specification
Value
Product CODE
TY-D25/L220
Product Type
Vane Damper One Button Damper Dual Button Damper Rotary Damper Pull-Out Damper
Slow Close Time
10-20S
Silicone Oil
Imported
Core / Shaft Material
PA66 + 50% GF Zinc Alloy POM+30%GF
Housing Material
POM+30%GF PA66+30%GF PBT PA66+50%GF
Opening Angle
110°
Rotation Direction
One-way Two-way
Adjustable Torque Or Not
Yes No
Torque Range
1.5-3.5 N·m 1.5-4 N·m 1.5-4.5 N·m Custom Torque
Color
Custom
Working Temperature
-10℃-50℃
Application
Toilet Seat Rice Cooker Air Cooler Washing Machine Air Purifier Coffee Machine Smart Trash Can Vacuum Dust Bin Other Home Appliances
OEM / ODM Service
Available

Dimensions & Technical Drawing

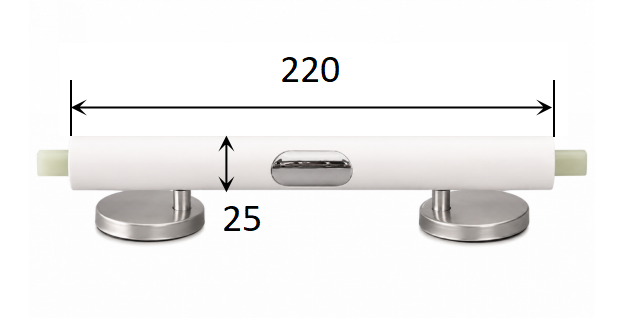

220 mm One Touch Quick Release Damper Hinge for Soft Close Toilet Seats dimensions

Development & Manufacturing Process

Development process for 220 mm One Touch Quick Release Damper Hinge for Soft Close Toilet Seats

Applications & Use Cases

One Click Quick Release Toilet Seat
One Click Quick Release Toilet Seat
Soft Close Toilet Seat
Soft Close Toilet Seat
PP Toilet Seat
PP Toilet Seat
UF Toilet Seat
UF Toilet Seat
