230 mm Push Button Quick Release Hinge Soft Close Damper for PP UF WC Lid

TY-D20/L230 is a 230 mm soft-close hinge developed for PP/UF toilet seats. Its one-button quick-release mechanism lets users detach the seat with a single press, providing clear access to the mounting area for deep cleaning. The 20 mm diameter one-button damper delivers controlled closing and supports customized torque for different lid weights and OEM hinge structures.
230 mm Push Button Quick Release Hinge Soft Close Damper for PP UF WC Lid

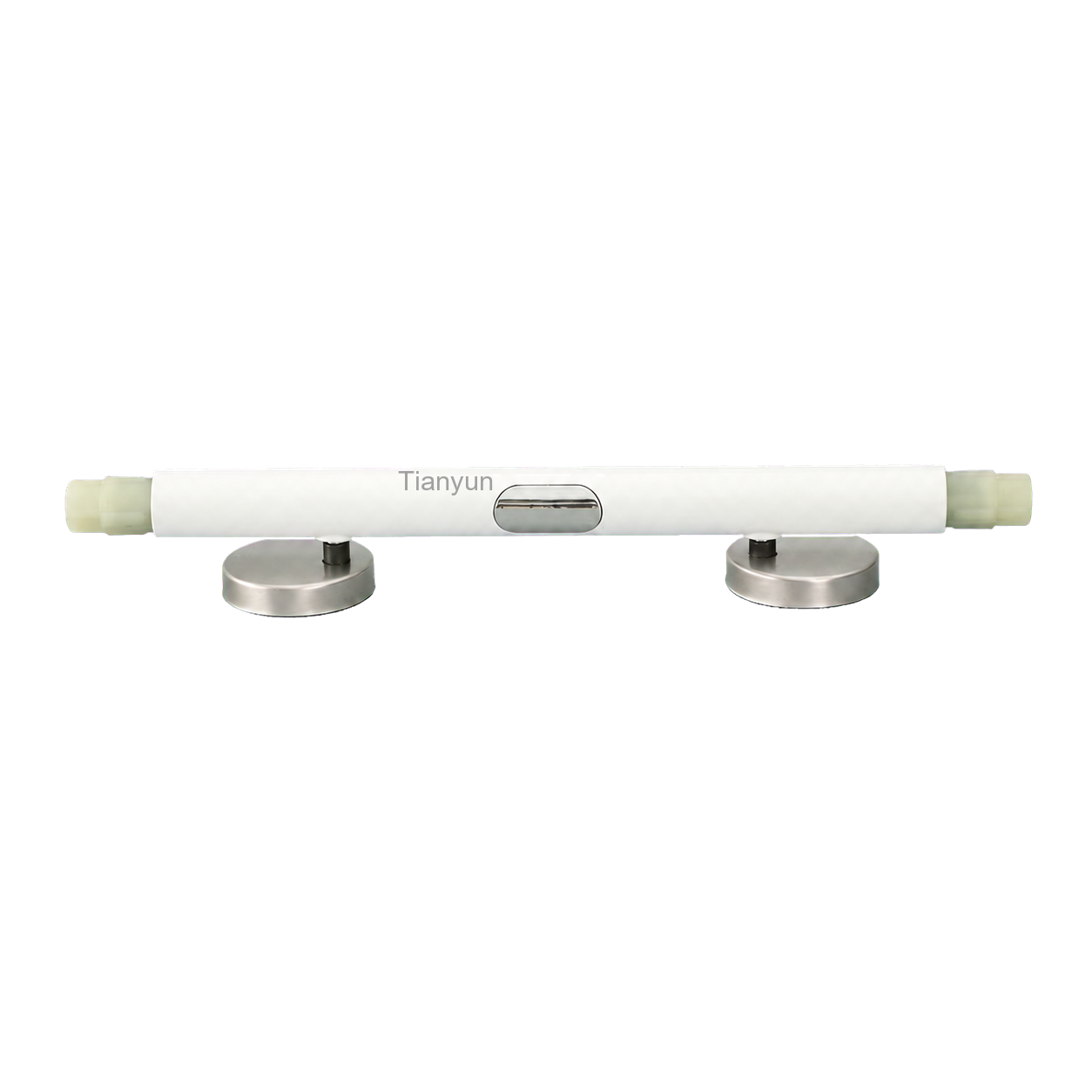

230 mm Push Button Quick Release Hinge Soft Close Damper for PP UF WC Lid product view

Technical Specifications

Specification
Value
Product CODE
TY-D20/L230
Product Type
Vane Damper One Button Damper Dual Button Damper Rotary Damper Pull-Out Damper
Slow Close Time
10-20S
Silicone Oil
Imported
Core / Shaft Material
PA66 + 50% GF Zinc Alloy POM+30%GF
Housing Material
POM+30%GF PA66+30%GF PBT PA66+50%GF
Opening Angle
110°
Rotation Direction
One-way Two-way
Adjustable Torque Or Not
Yes No
Torque Range
1.5-3.5 N·m 1.5-4 N·m 1.5-4.5 N·m Custom Torque
Color
Custom
Working Temperature
-10℃-50℃
Application
Toilet Seat Rice Cooker Air Cooler Washing Machine Air Purifier Coffee Machine Smart Trash Can Vacuum Dust Bin Other Home Appliances
OEM / ODM Service
Available

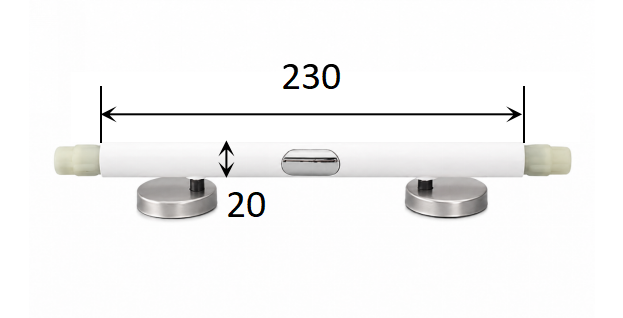

Dimensions & Technical Drawing

230 mm Push Button Quick Release Hinge Soft Close Damper for PP UF WC Lid dimensions

Development & Manufacturing Process

Development process for 230 mm Push Button Quick Release Hinge Soft Close Damper for PP UF WC Lid

Applications & Use Cases

One Click Quick Release Toilet Seat
One Click Quick Release Toilet Seat
Soft Close Toilet Seat
Soft Close Toilet Seat
PP Toilet Seat
PP Toilet Seat
UF Toilet Seat
UF Toilet Seat
