Adjustable Traditional Toilet Seat Hinge Hardware with Special Top Lock for Classic WC Seats

Built for customized traditional toilet seat production, this adjustable hinge hardware provides flexible base positioning to support accurate seat alignment. The Special Top Lock secures the assembly through the ceramic mounting hole, with tightening completed from above for toilets where underside access is limited. Suitable for matched OEM and ODM production; lock profile, connection structure, base dimensions and screw specifications can be developed to project requirements.
Adjustable Traditional Toilet Seat Hinge Hardware with Special Top Lock for Classic WC Seats

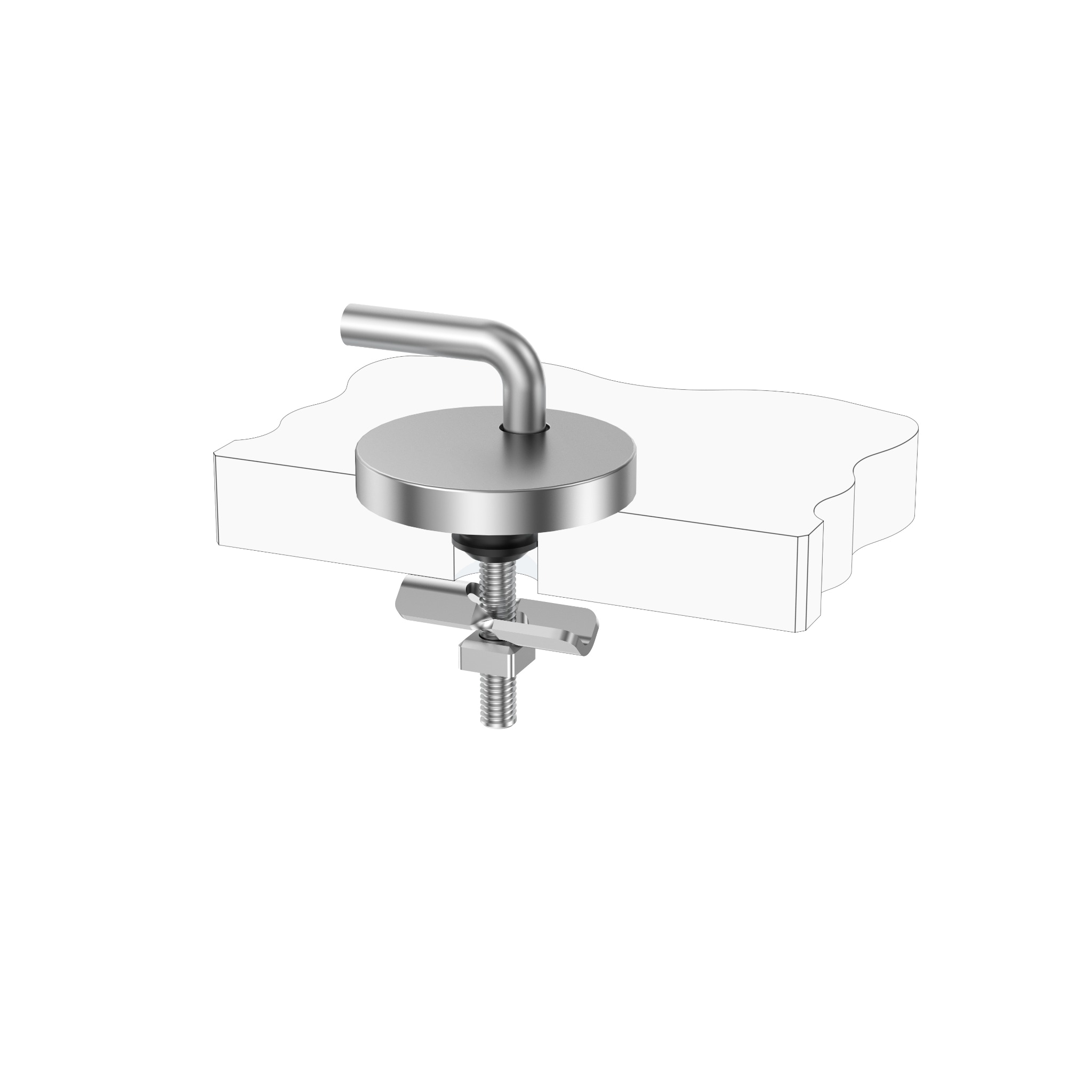

Adjustable Traditional Toilet Seat Hinge Hardware with Special Top Lock for Classic WC Seats product view

Technical Specifications

Specification
Value
Quick Release Type
Click Pull-out Non
Installation
Bottom Top
Adjustable Or Not
Yes No
Base Height
Custom
Base Shape
Round Teardrop Square
Screw Thread
M5 M6
Screw Length
45mm 60mm 80mm Custom 55mm
Base&cover Diameter
45mm 50mm 55mm 60mm Custom 30mm
Base&cover Material
Full SUS304 Plastic+SUS304
Surface Finish
Polished Brushed Matte Custom
Color
Custom
Compatible Hinge
One Button Dual Button Keyless Traditional close
Seat Compatibility
UF PP MDF Wooden Resin
OEM / ODM Service
Available

Dimensions & Technical Drawing

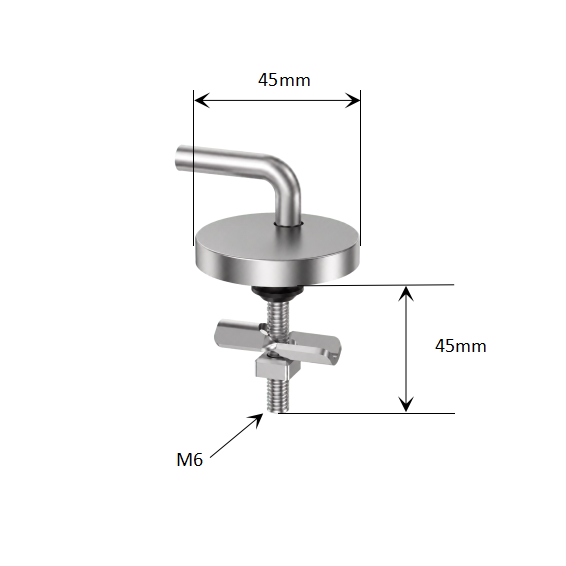

Adjustable Traditional Toilet Seat Hinge Hardware with Special Top Lock for Classic WC Seats dimensions

Development & Manufacturing Process

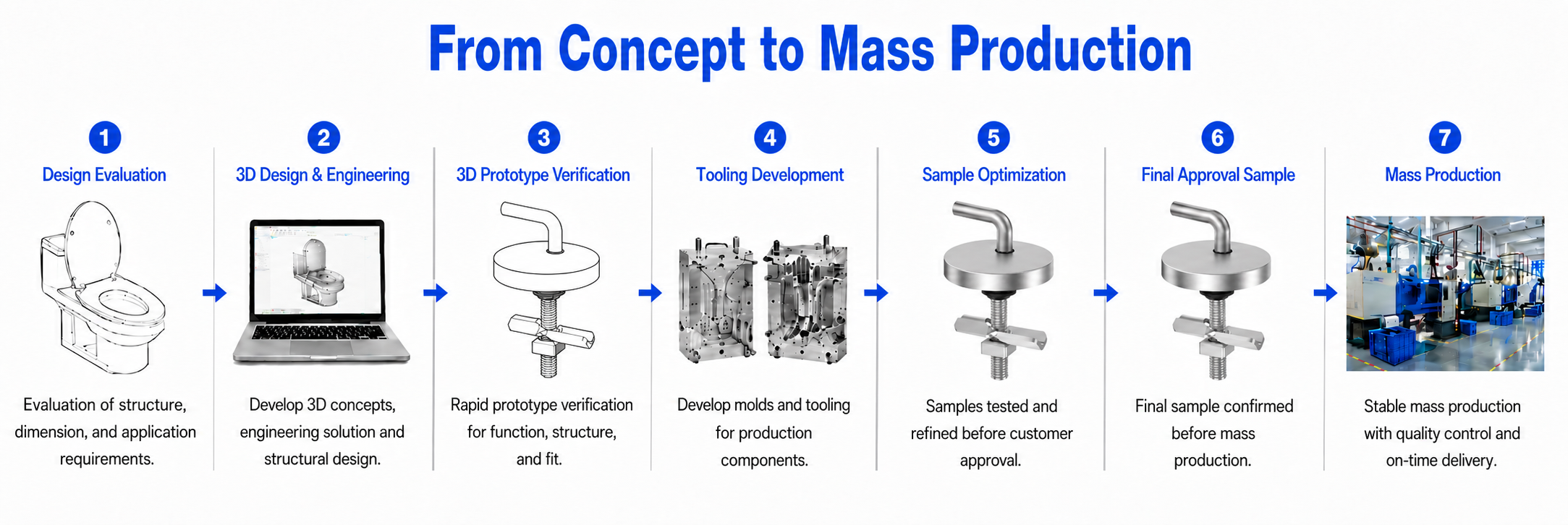

Development process for Adjustable Traditional Toilet Seat Hinge Hardware with Special Top Lock for Classic WC Seats

Applications & Use Cases

Adjustable Traditional Toilet Seat Hinge Hardware with Special Top Lock for Classic WC Seats application
Adjustable Traditional Toilet Seat Hinge Hardware with Special Top Lock for Classic WC Seats application
Adjustable Traditional Toilet Seat Hinge Hardware with Special Top Lock for Classic WC Seats application
Adjustable Traditional Toilet Seat Hinge Hardware with Special Top Lock for Classic WC Seats application
