M5 Lift-Off Top Fix Adjustable Toilet Seat Hinge Kit for One-Click Quick-Release Dampers

This adjustable quick-release toilet seat mounting base uses a new M5 Lift-Off Top Fixing toggle for fast blind-hole installation from above the pan. As tightened, the internal wings expand beneath the ceramic to create a secure mechanical grip, helping reduce hinge movement and loose seats. Suitable for one- or two-button dampers, with brushed, matte or mirror-polished covers. OEM customization is available from samples, images or drawings.
M5 Lift-Off Top Fix Adjustable Toilet Seat Hinge Kit for One-Click Quick-Release Dampers

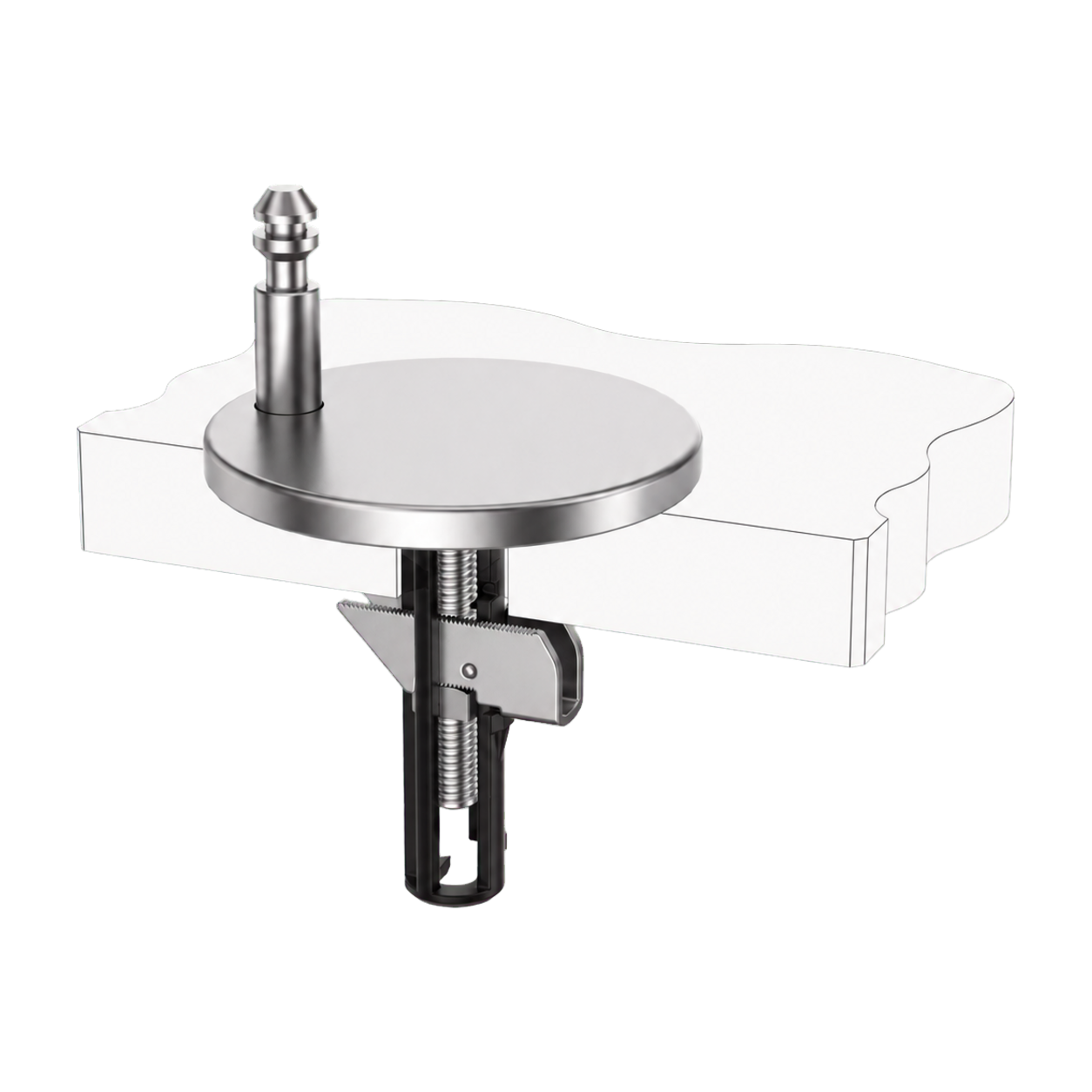

M5 Lift-Off Top Fix Adjustable Toilet Seat Hinge Kit for One-Click Quick-Release Dampers product view

Technical Specifications

Specification
Value
Quick Release Type
Click Pull-out Non
Installation
Bottom Top
Adjustable Or Not
Yes No
Pin Diameter
7mm 8mm 10mm Custom
Base Height
Custom
Base Shape
Round Teardrop Square Custom
Screw Thread
M5 M6 Custom
Screw Length
45mm 60mm 80mm Custom 55mm
Base&cover Diameter
45mm 50mm 55mm 60mm Custom 30mm
Base&cover Material
Full SUS304 Plastic+SUS304 Zinc Alloy
Surface Finish
Polished Brushed Matte Custom
Color
Custom
OEM / ODM Service
Available
Compatible Hinge
One Button Dual Button Keyless Traditional close
Seat Compatibility
UF PP MDF Wooden Resin

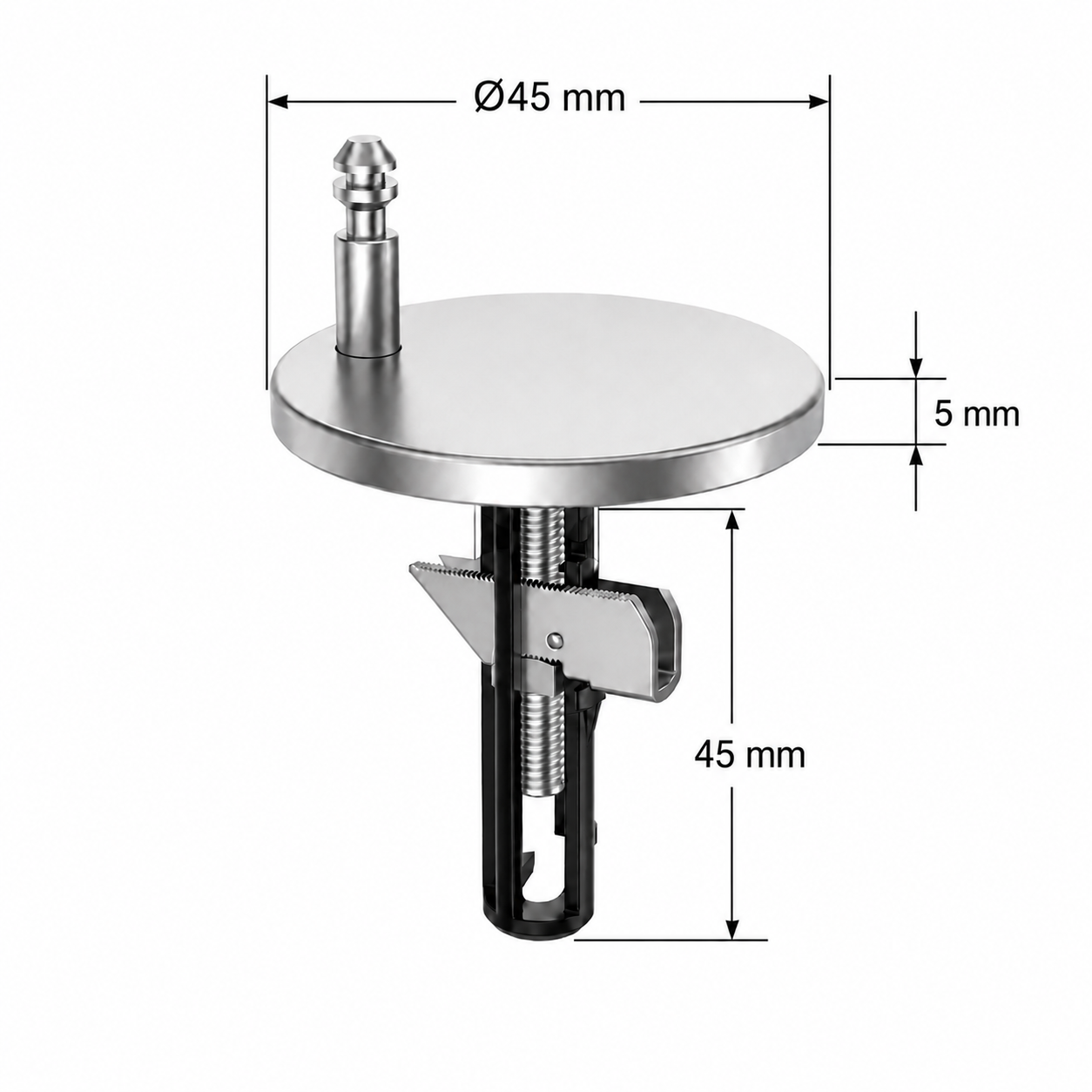

Dimensions & Technical Drawing

M5 Lift-Off Top Fix Adjustable Toilet Seat Hinge Kit for One-Click Quick-Release Dampers dimensions

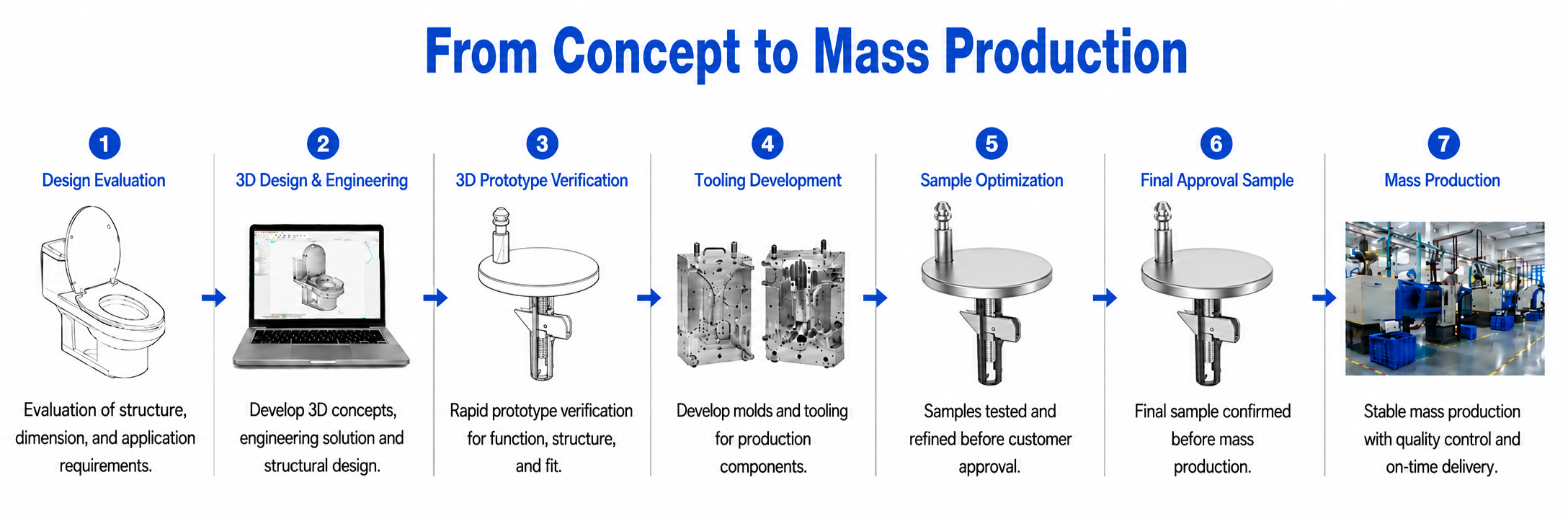

Development & Manufacturing Process

Development process for M5 Lift-Off Top Fix Adjustable Toilet Seat Hinge Kit for One-Click Quick-Release Dampers

Applications & Use Cases

One Button Quick Release Damper
One Button Quick Release Damper
Two Button Quick Release Damper
Two Button Quick Release Damper
Pull-Out  Quick Release Damper
Pull-Out Quick Release Damper
Soft Close Toilet Seat
Soft Close Toilet Seat
