Home Products Toilet Seat Fixing Systems Adjustable Quick-Release Fixing Kits Push-Button Quick-Release Toilet Seat Mounting Kit with Adjustable Base and Boat-Type Top Lock

Push-Button Quick-Release Toilet Seat Mounting Kit with Adjustable Base and Boat-Type Top Lock

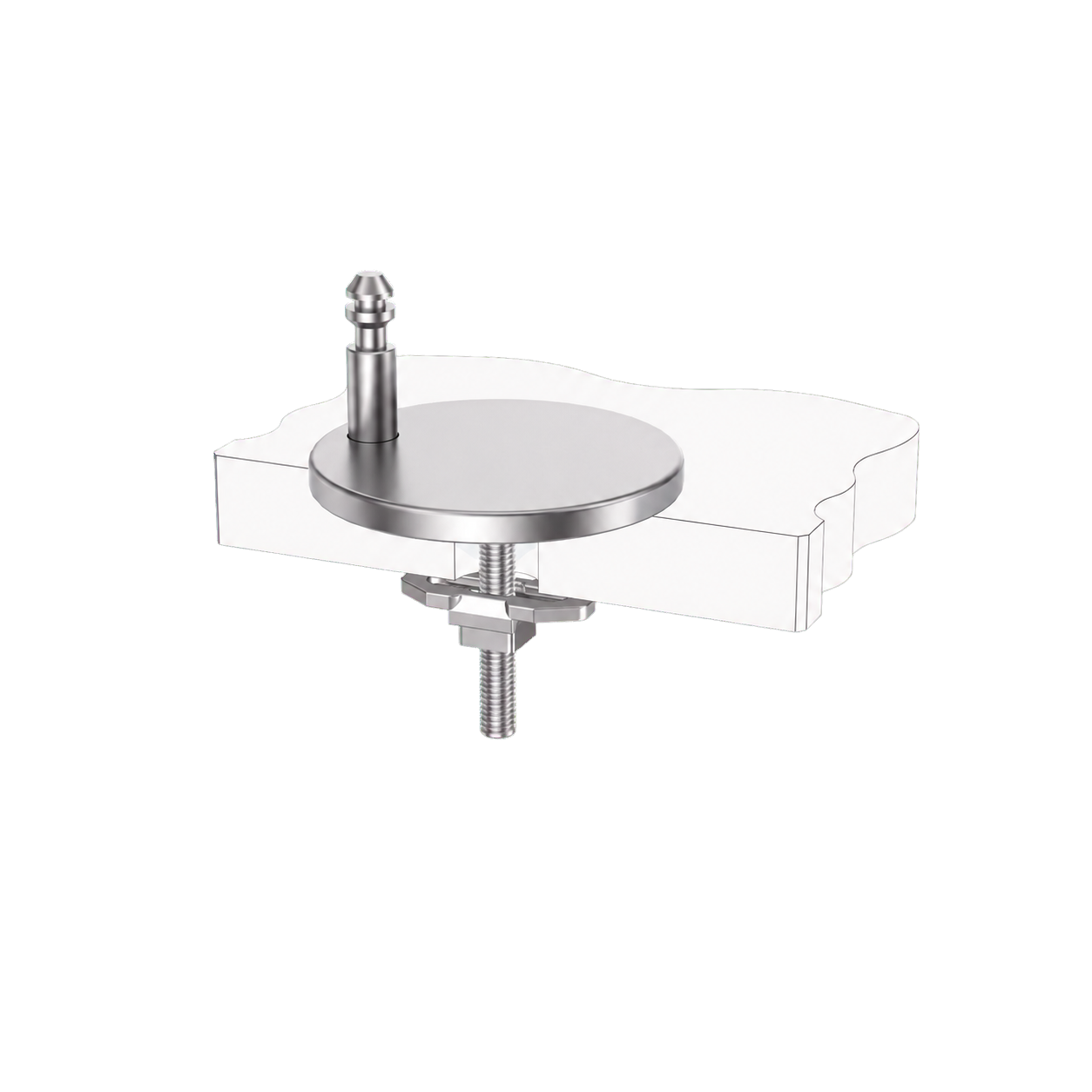

This push-button quick-release toilet seat kit combines a multi-directional adjustable stainless steel base with a Boat-Type Top Lock. The metal lock forms a stable transverse clamp beneath the ceramic, helping secure the mounting base and reduce hinge movement. Compatible with one-button and two-button quick-release dampers. Decorative covers are available in brushed, matte or mirror-polished finishes, with OEM customization based on samples, images or drawings.
Push-Button Quick-Release Toilet Seat Mounting Kit with Adjustable Base and Boat-Type Top Lock
Push-Button Quick-Release Toilet Seat Mounting Kit with Adjustable Base and Boat-Type Top Lock product view

Technical Specifications

Specification
Value
Quick Release Type
Click Pull-out Non
Installation
Bottom Top
Adjustable Or Not
Yes No
Pin Diameter
7mm 8mm 10mm Custom
Base Height
Custom
Base Shape
Round Teardrop Square Custom
Screw Thread
M5 M6 Custom
Screw Length
45mm 60mm 80mm Custom 55mm
Base&cover Diameter
45mm 50mm 55mm 60mm Custom 30mm
Base&cover Material
Full SUS304 Plastic+SUS304 Zinc Alloy
Surface Finish
Polished Brushed Matte Custom
Color
Custom
OEM / ODM Service
Available
Compatible Hinge
One Button Dual Button Keyless Traditional close
Seat Compatibility
UF PP MDF Wooden Resin

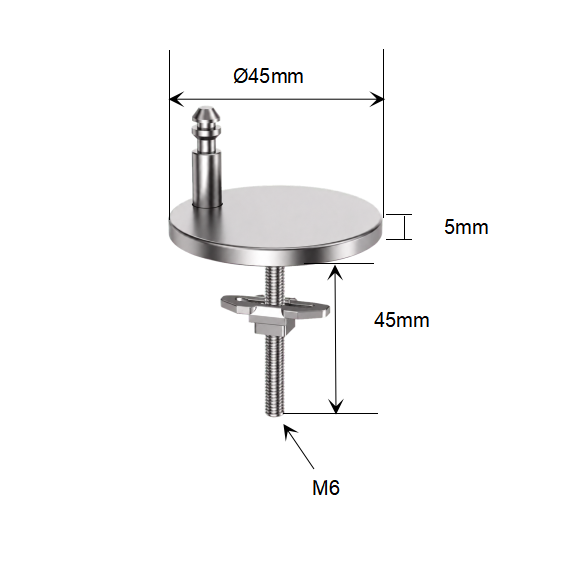

Dimensions & Technical Drawing

Push-Button Quick-Release Toilet Seat Mounting Kit with Adjustable Base and Boat-Type Top Lock dimensions

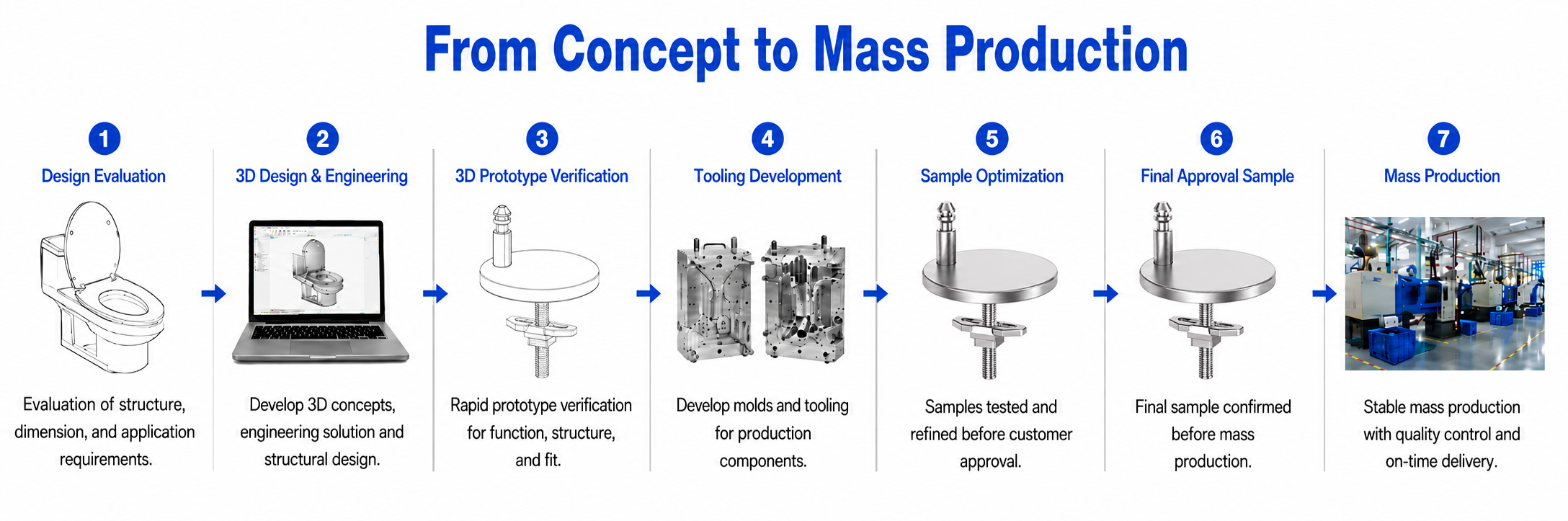

Development & Manufacturing Process

Development process for Push-Button Quick-Release Toilet Seat Mounting Kit with Adjustable Base and Boat-Type Top Lock

Applications & Use Cases

One Button Quick Release Damper
One Button Quick Release Damper
Two Button Quick Release Damper
Two Button Quick Release Damper
Pull-Out  Quick Release Damper
Pull-Out Quick Release Damper
PP Toilet
PP Toilet
UF Toilet
UF Toilet
