Home Products Toilet Seat Fixing Systems Adjustable Lift-Off Kits Adjustable Quick-Release Toilet Seat Top Fixing Kit with Pull-Out Base and Special-Shaped Lock

Adjustable Quick-Release Toilet Seat Top Fixing Kit with Pull-Out Base and Special-Shaped Lock

This adjustable quick-release toilet seat top fixing kit combines a stainless steel pull-out base with a special-shaped lock. The base moves in multiple directions for precise hinge alignment and connects directly to the damper, allowing the seat to lift away without pressing a button. All fasteners are tightened from above, making installation easier on blind-hole, enclosed and back-to-wall pans. OEM bases can be developed from damper specifications, samples or drawings.
Adjustable Quick-Release Toilet Seat Top Fixing Kit with Pull-Out Base and Special-Shaped Lock

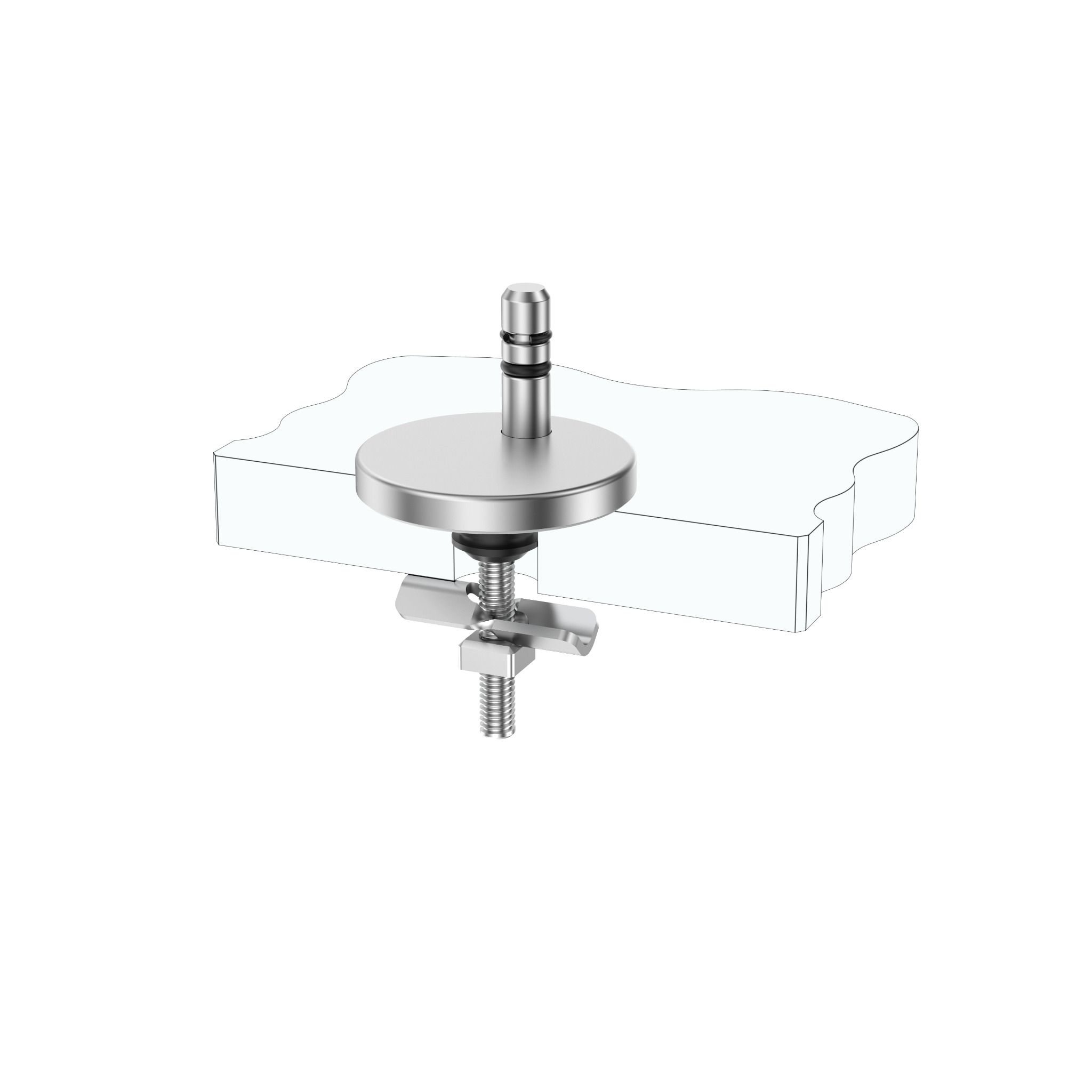

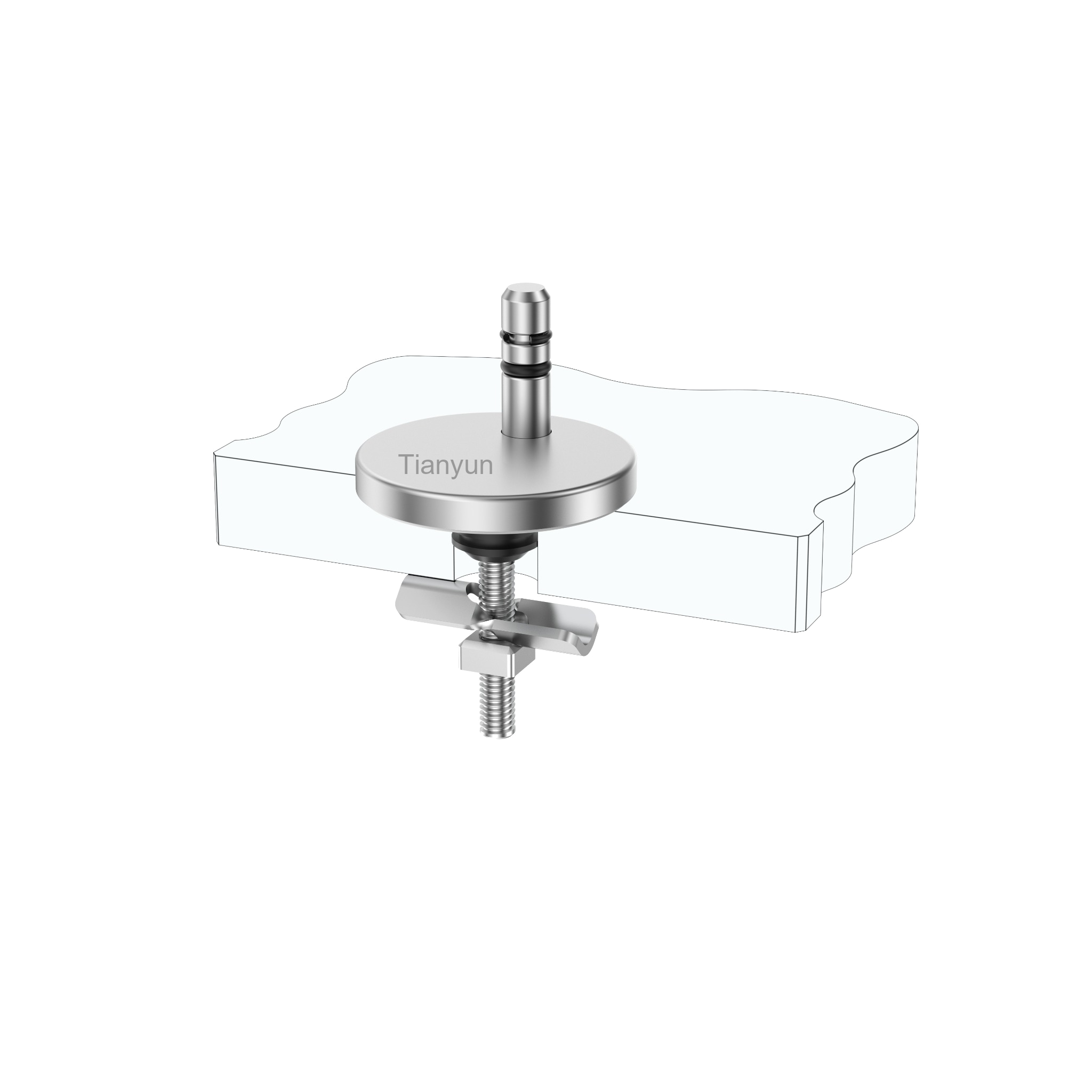

Adjustable Quick-Release Toilet Seat Top Fixing Kit with Pull-Out Base and Special-Shaped Lock product view

Technical Specifications

Specification
Value
Quick Release Type
Click Pull-out Non
Installation
Bottom Top
Adjustable Or Not
Yes No
Base Height
Custom
Base Shape
Round Teardrop Square
Screw Thread
M5 M6
Screw Length
45mm 60mm 80mm Custom 55mm
Base&cover Diameter
45mm 50mm 55mm 60mm Custom 30mm
Base&cover Material
Full SUS304 Plastic+SUS304
Surface Finish
Polished Brushed Matte Custom
Color
Custom
Compatible Hinge
One Button Dual Button Keyless Traditional close
Seat Compatibility
UF PP MDF Wooden Resin
OEM / ODM Service
Available

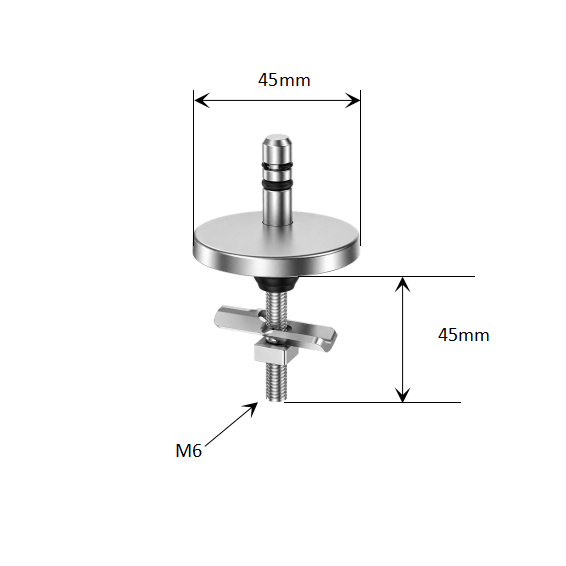

Dimensions & Technical Drawing

Adjustable Quick-Release Toilet Seat Top Fixing Kit with Pull-Out Base and Special-Shaped Lock dimensions

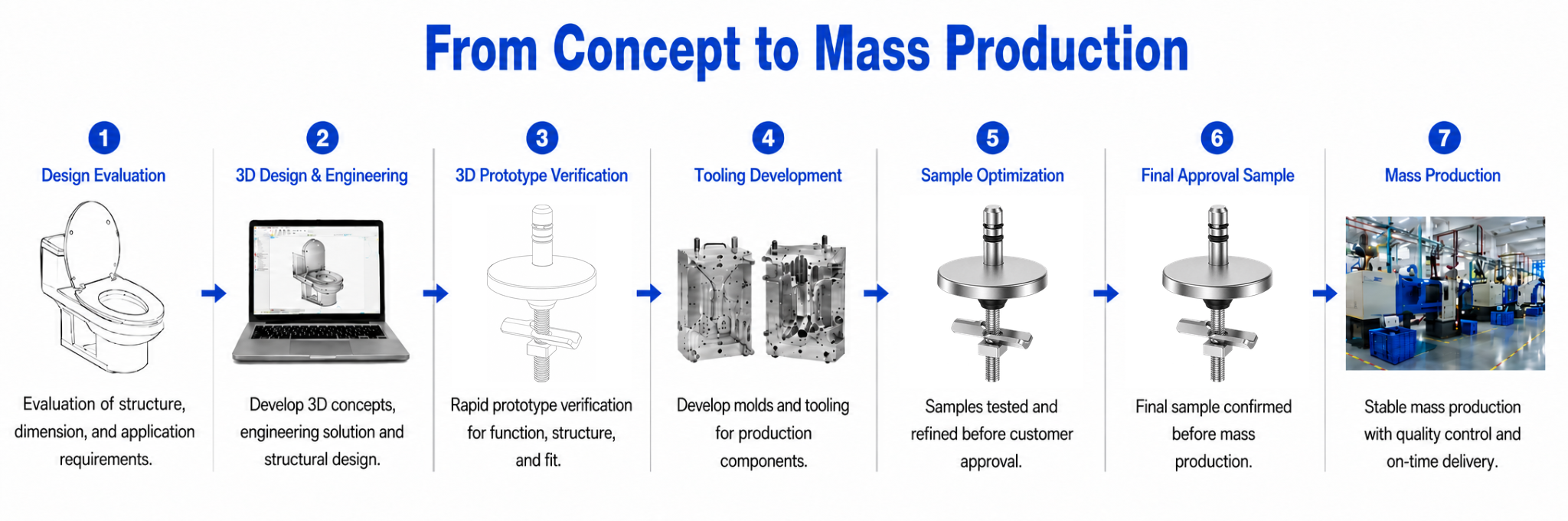

Development & Manufacturing Process

Development process for Adjustable Quick-Release Toilet Seat Top Fixing Kit with Pull-Out Base and Special-Shaped Lock

Applications & Use Cases

Adjustable Quick-Release Toilet Seat Top Fixing Kit with Pull-Out Base and Special-Shaped Lock application
Adjustable Quick-Release Toilet Seat Top Fixing Kit with Pull-Out Base and Special-Shaped Lock application
Adjustable Quick-Release Toilet Seat Top Fixing Kit with Pull-Out Base and Special-Shaped Lock application
Adjustable Quick-Release Toilet Seat Top Fixing Kit with Pull-Out Base and Special-Shaped Lock application
