Adjustable Quick-Release Toilet Seat Hinge Assembly with Pull-Out Base and Slot Top Lock

This hinge assembly combines an adjustable stainless steel pull-out base with a slot top lock. The base can be repositioned in multiple directions for accurate alignment with the ceramic mounting holes. Its direct damper connection allows the seat to be removed without pressing a release button. The slot-shaped fastener secures the assembly beneath the pan, while all tightening is completed from above. Ideal for blind-hole, enclosed and back-to-wall toilets, with OEM customization available.
Adjustable Quick-Release Toilet Seat Hinge Assembly with Pull-Out Base and Slot Top Lock

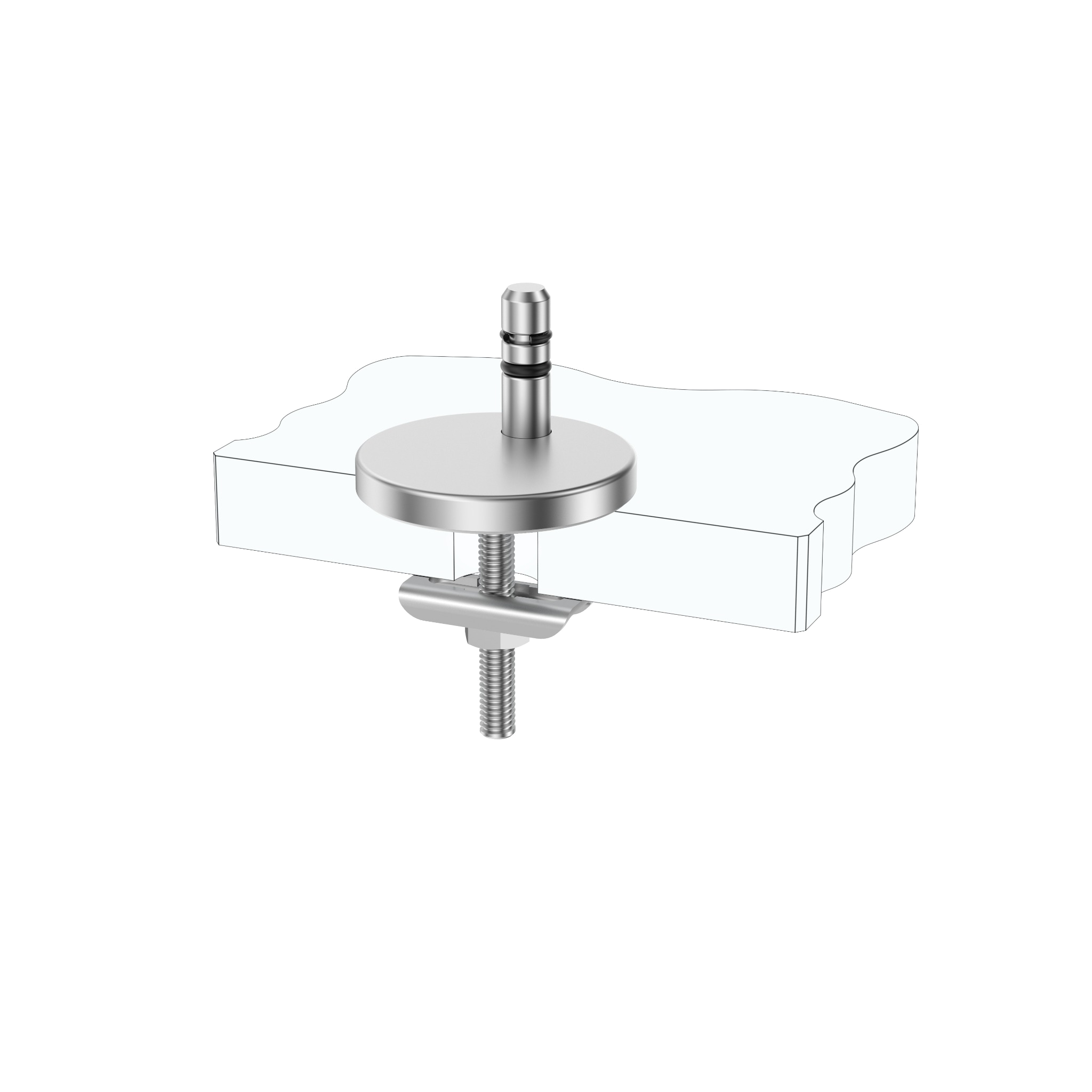

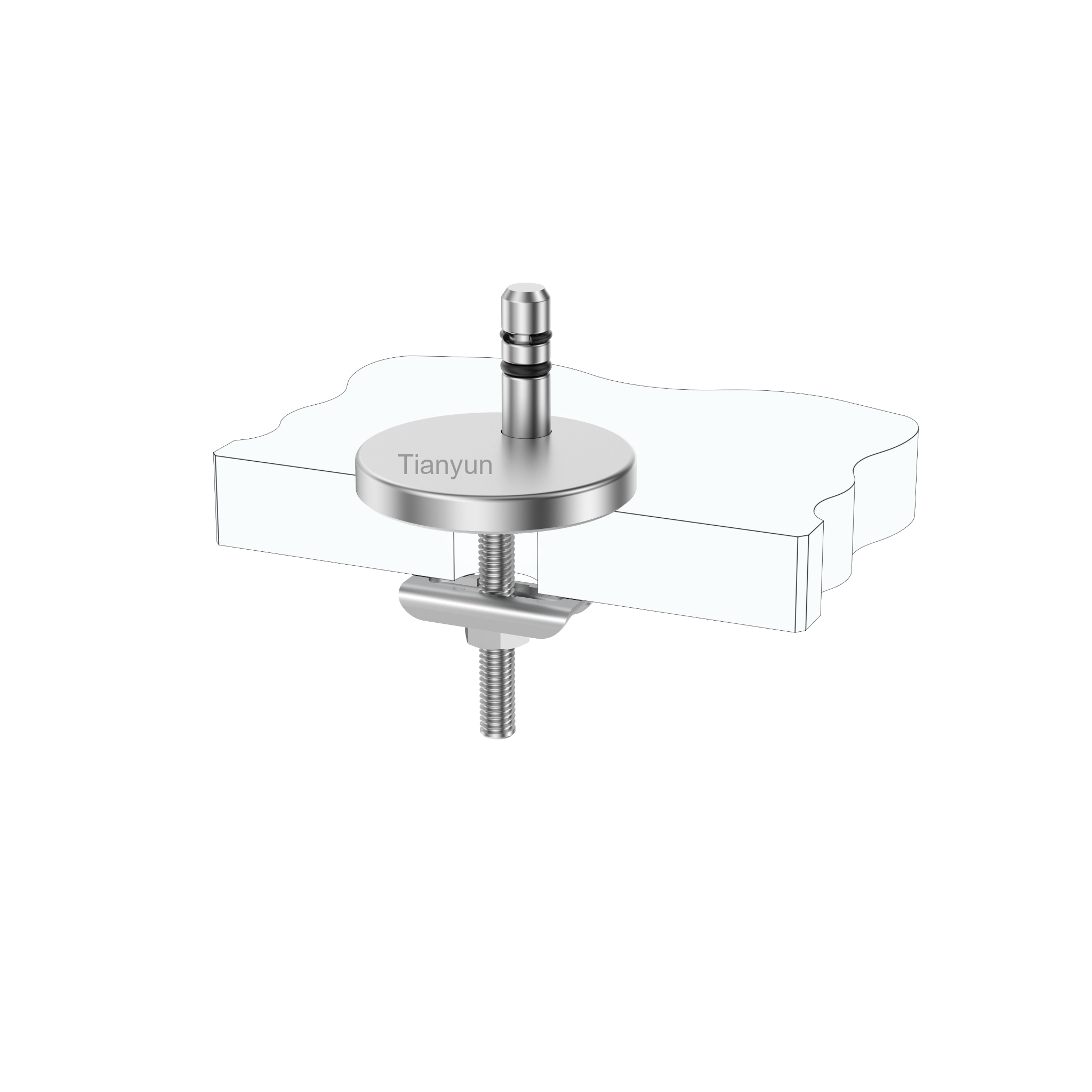

Adjustable Quick-Release Toilet Seat Hinge Assembly with Pull-Out Base and Slot Top Lock product view

Technical Specifications

Specification
Value
Quick Release Type
Click Pull-out Non
Installation
Bottom Top
Adjustable Or Not
Yes No
Base Height
Custom
Base Shape
Round Teardrop Square
Screw Thread
M5 M6
Screw Length
45mm 60mm 80mm Custom 55mm
Base&cover Diameter
45mm 50mm 55mm 60mm Custom 30mm
Base&cover Material
Full SUS304 Plastic+SUS304
Surface Finish
Polished Brushed Matte Custom
Color
Custom
Compatible Hinge
One Button Dual Button Keyless Traditional close
Seat Compatibility
UF PP MDF Wooden Resin
OEM / ODM Service
Available

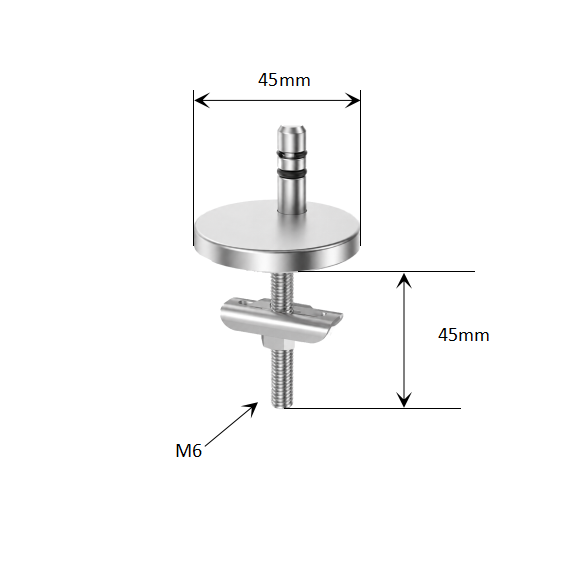

Dimensions & Technical Drawing

Adjustable Quick-Release Toilet Seat Hinge Assembly with Pull-Out Base and Slot Top Lock dimensions

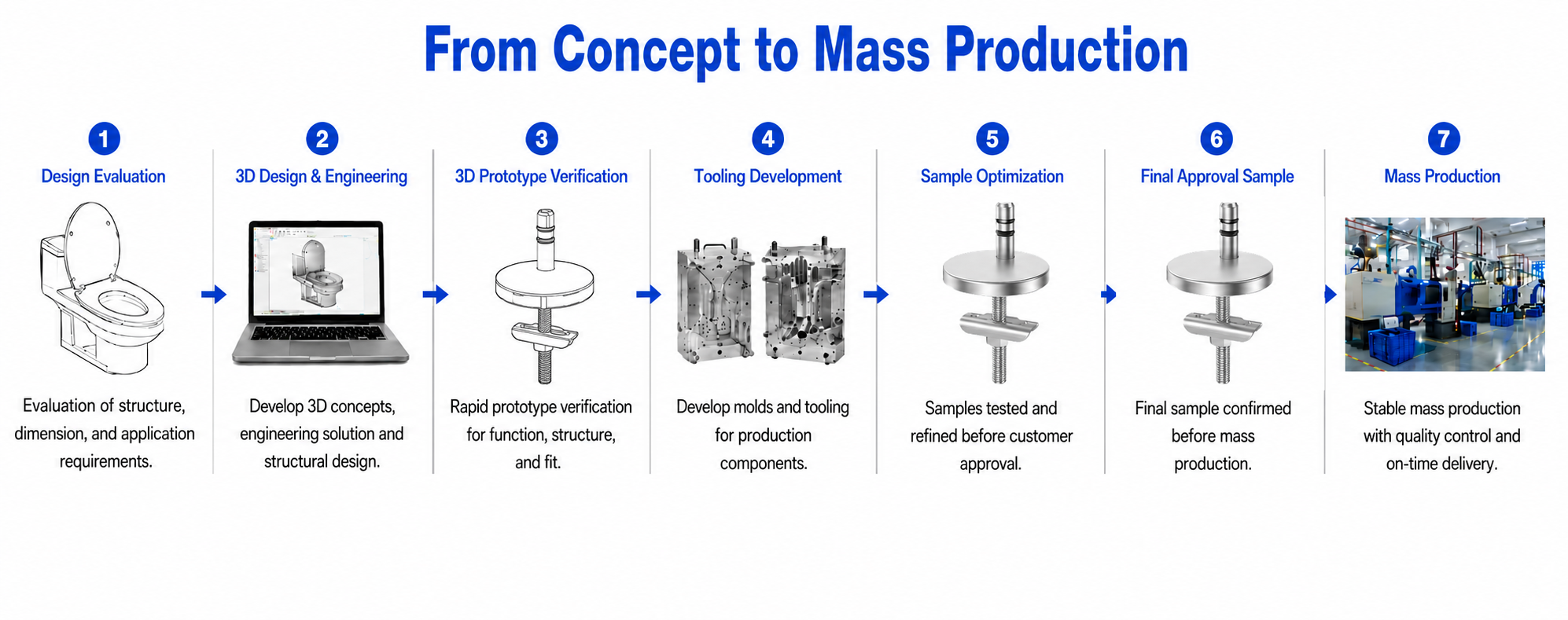

Development & Manufacturing Process

Development process for Adjustable Quick-Release Toilet Seat Hinge Assembly with Pull-Out Base and Slot Top Lock

Applications & Use Cases

Adjustable Quick-Release Toilet Seat Hinge Assembly with Pull-Out Base and Slot Top Lock application
Adjustable Quick-Release Toilet Seat Hinge Assembly with Pull-Out Base and Slot Top Lock application
Adjustable Quick-Release Toilet Seat Hinge Assembly with Pull-Out Base and Slot Top Lock application
Adjustable Quick-Release Toilet Seat Hinge Assembly with Pull-Out Base and Slot Top Lock application
