TY-S028 Top-Mount Adjustable Toilet Seat Soft Close Hinges Rotary Damper D-shape Base Chrome

Custom top-mount hinges, install entirely from above, ideal for one-piece toilets and tight spaces.D-shape base with slotted adjustment for fine-tuning hole spacing. Zinc alloy chrome with rotary damper for silent soft close. Produced to your drawings or samples. B2B factory direct, OEM/ODM custom production.
TY-S028 Top-Mount Adjustable Toilet Seat Soft Close Hinges Rotary Damper D-shape Base Chrome

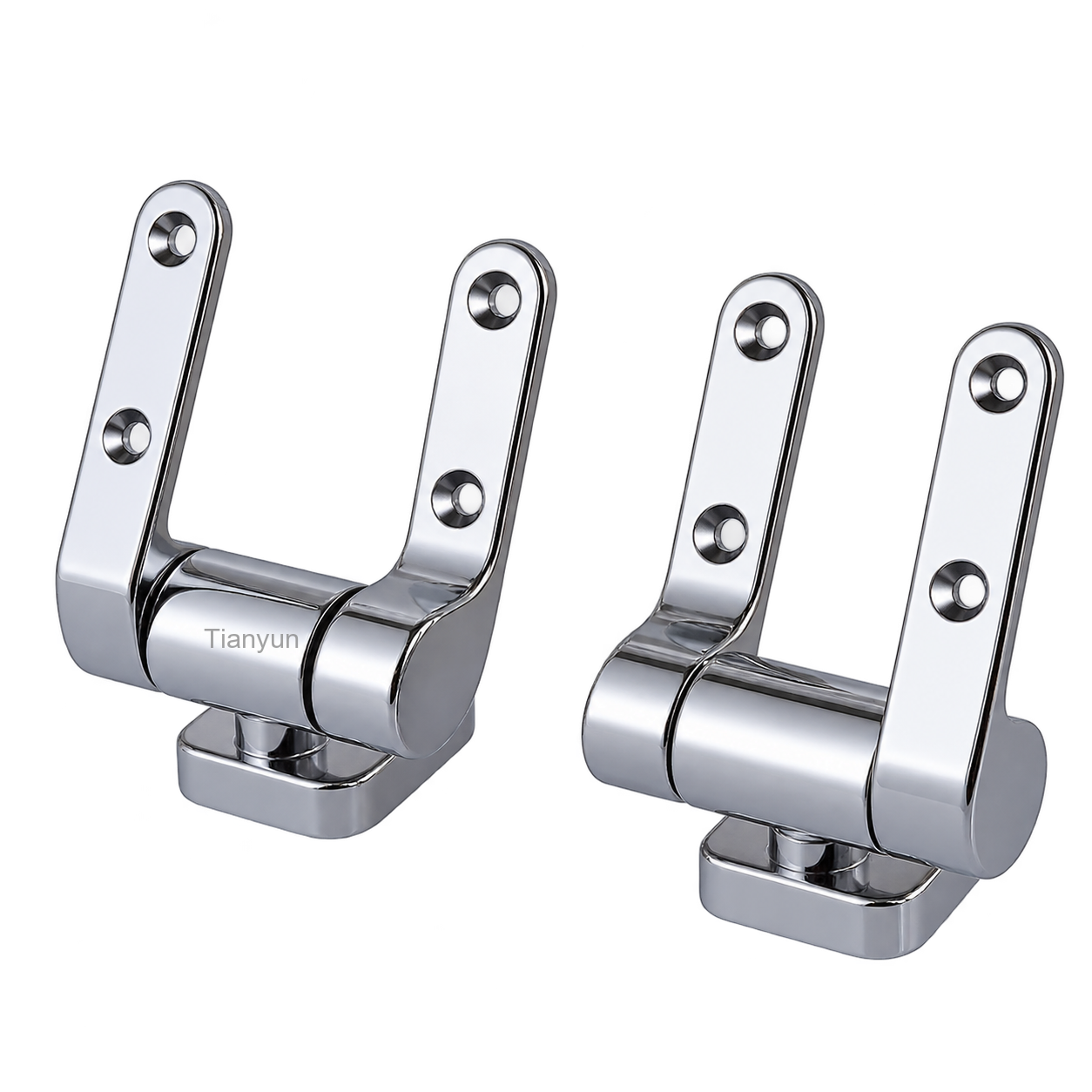

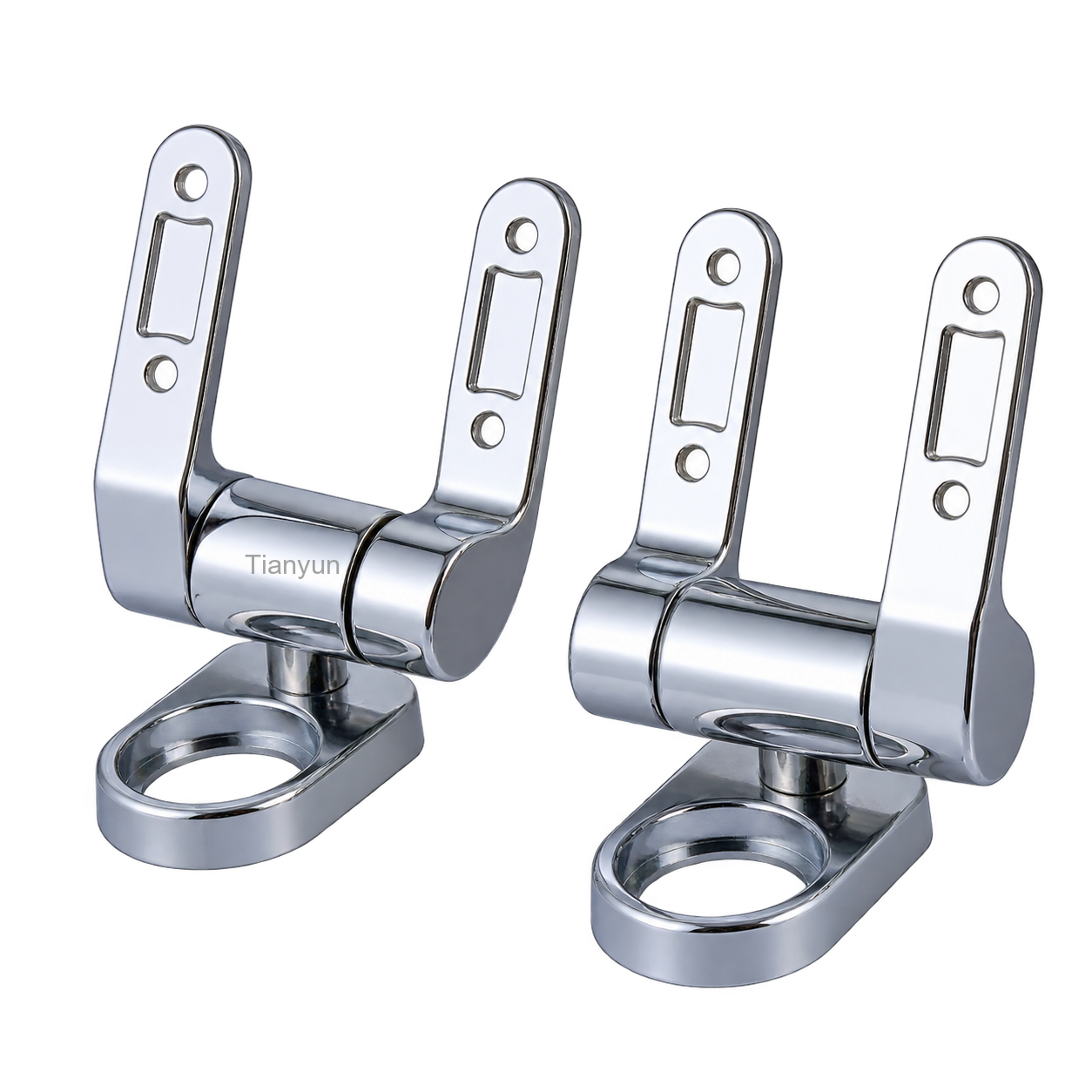

TY-S028 Top-Mount Adjustable Toilet Seat Soft Close Hinges Rotary Damper D-shape Base Chrome product view
TY-S028 Top-Mount Adjustable Toilet Seat Soft Close Hinges Rotary Damper D-shape Base Chrome product view
TY-S028 Top-Mount Adjustable Toilet Seat Soft Close Hinges Rotary Damper D-shape Base Chrome product view
TY-S028 Top-Mount Adjustable Toilet Seat Soft Close Hinges Rotary Damper D-shape Base Chrome product view

Technical Specifications

Specification
Value
Quick Release Type
Click Pull-out Non
Installation
Bottom Top
Adjustable Or Not
Yes No
Pin Diameter
7mm 8mm 10mm Custom
Base Height
Custom
Base Shape
Round Teardrop Square Custom
Screw Thread
M5 M6 Custom
Screw Length
45mm 60mm 80mm Custom 55mm
Base&cover Diameter
45mm 50mm 55mm 60mm Custom 30mm
Base&cover Material
Full SUS304 Plastic+SUS304 Zinc Alloy
Surface Finish
Polished Brushed Matte Custom
Color
Custom
OEM / ODM Service
Available
Compatible Hinge
One Button Dual Button Keyless Traditional close
Seat Compatibility
UF PP MDF Wooden Resin

Dimensions & Technical Drawing

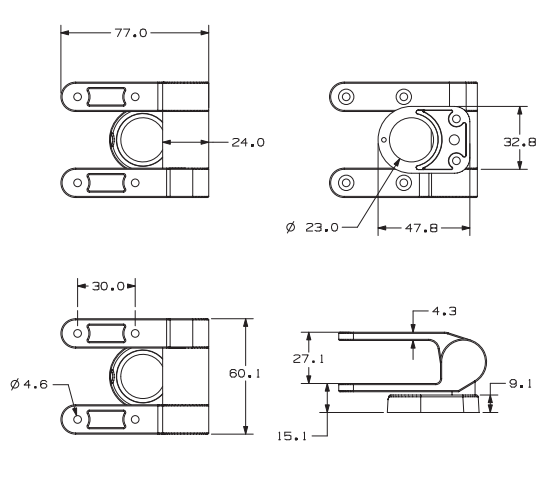

TY-S028 Top-Mount Adjustable Toilet Seat Soft Close Hinges Rotary Damper D-shape Base Chrome dimensions

Development & Manufacturing Process

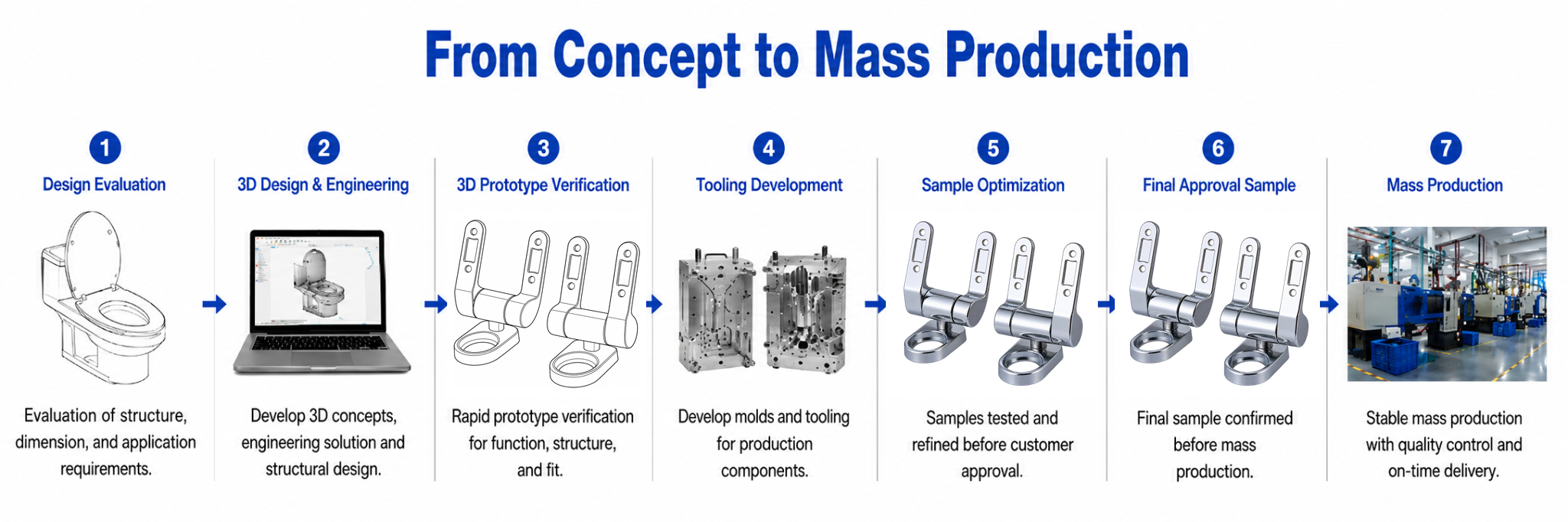

Development process for TY-S028 Top-Mount Adjustable Toilet Seat Soft Close Hinges Rotary Damper D-shape Base Chrome

Applications & Use Cases

MDF Toilet Seat
MDF Toilet Seat
Wooden Toilet Seat
Wooden Toilet Seat
Resin Toilet Seat
Resin Toilet Seat
Bamboo Toilet Seat
Bamboo Toilet Seat
