TY-S021 D-Shaped Base Zinc Alloy Soft-Closing Hinge for Wood and MDF Toilet Seats

Featuring a D-shaped mounting base with a flat rear edge and curved front profile, this zinc alloy soft-closing hinge creates a compact connection between compatible toilet seats and ceramic fixtures. The damping mechanism controls the closing movement of heavier wood, MDF and resin seats, helping reduce noise and sudden impact. Tianyun supports custom damping torque, hinge dimensions, fixing configurations and surface finishes for OEM and ODM projects.
TY-S021 D-Shaped Base Zinc Alloy Soft-Closing Hinge for Wood and MDF Toilet Seats

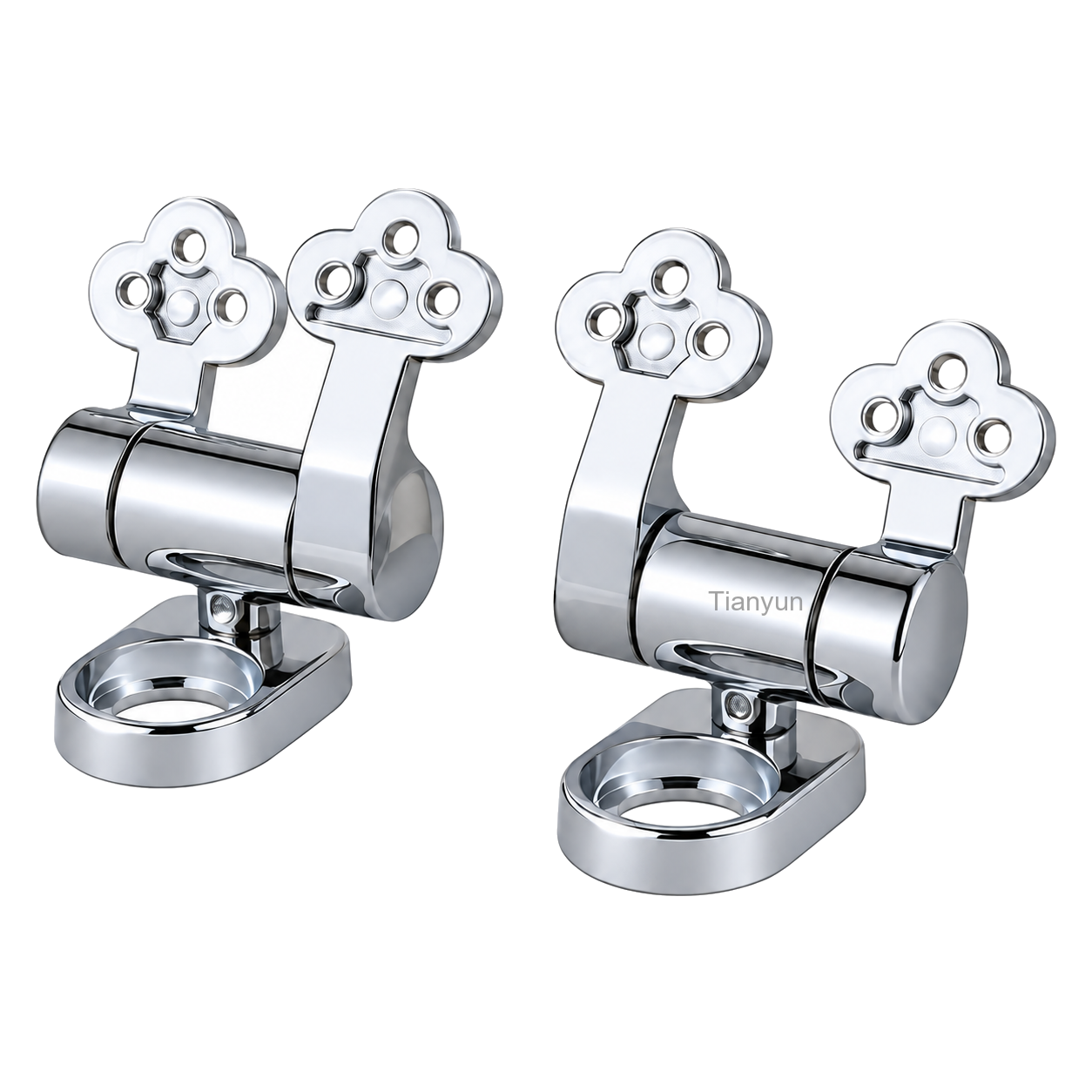

TY-S021 D-Shaped Base Zinc Alloy Soft-Closing Hinge for Wood and MDF Toilet Seats product view

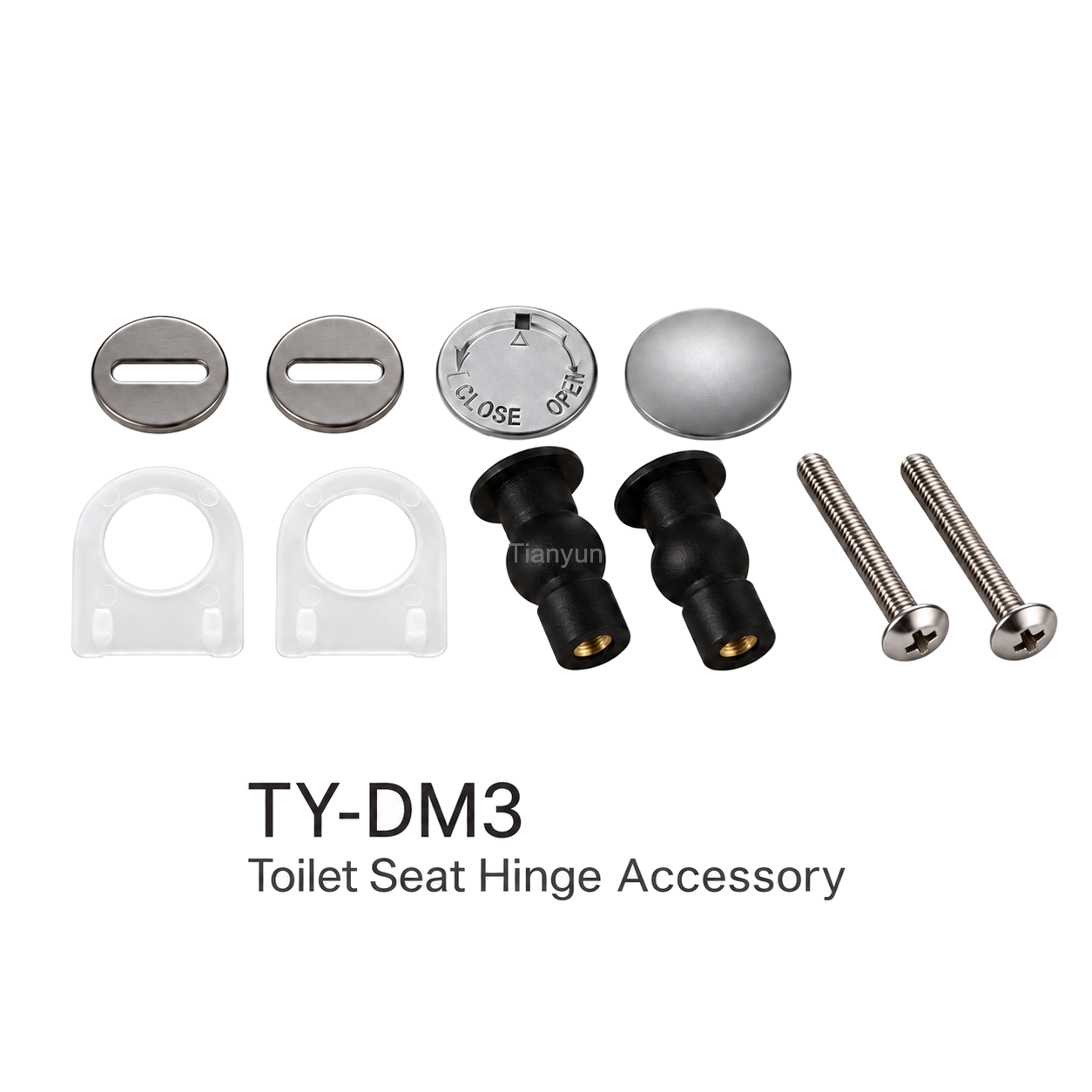

TY-S021 D-Shaped Base Zinc Alloy Soft-Closing Hinge for Wood and MDF Toilet Seats product view

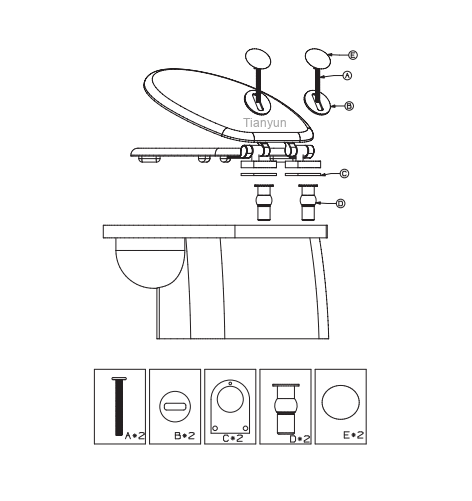

TY-S021 D-Shaped Base Zinc Alloy Soft-Closing Hinge for Wood and MDF Toilet Seats product view
TY-S021 D-Shaped Base Zinc Alloy Soft-Closing Hinge for Wood and MDF Toilet Seats product view

Technical Specifications

Specification
Value
Quick Release Type
Click Pull-out Non
Installation
Bottom Top
Adjustable Or Not
Yes No
Pin Diameter
7mm 8mm 10mm Custom
Base Height
Custom
Base Shape
Round Teardrop Square Custom
Screw Thread
M5 M6 Custom
Screw Length
45mm 60mm 80mm Custom 55mm
Base&cover Diameter
45mm 50mm 55mm 60mm Custom 30mm
Base&cover Material
Full SUS304 Plastic+SUS304 Zinc Alloy
Surface Finish
Polished Brushed Matte Custom
Color
Custom
OEM / ODM Service
Available
Compatible Hinge
One Button Dual Button Keyless Traditional close
Seat Compatibility
UF PP MDF Wooden Resin

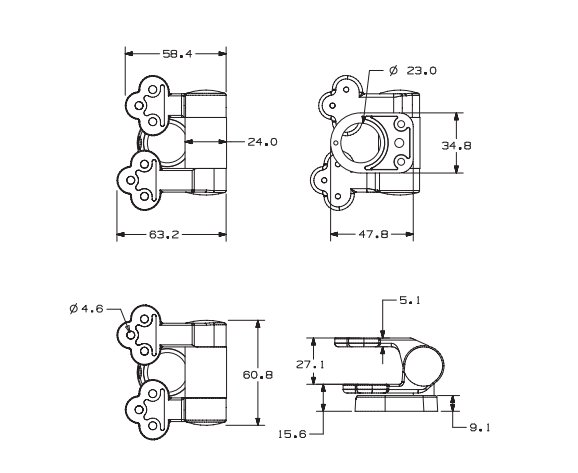

Dimensions & Technical Drawing

TY-S021 D-Shaped Base Zinc Alloy Soft-Closing Hinge for Wood and MDF Toilet Seats dimensions

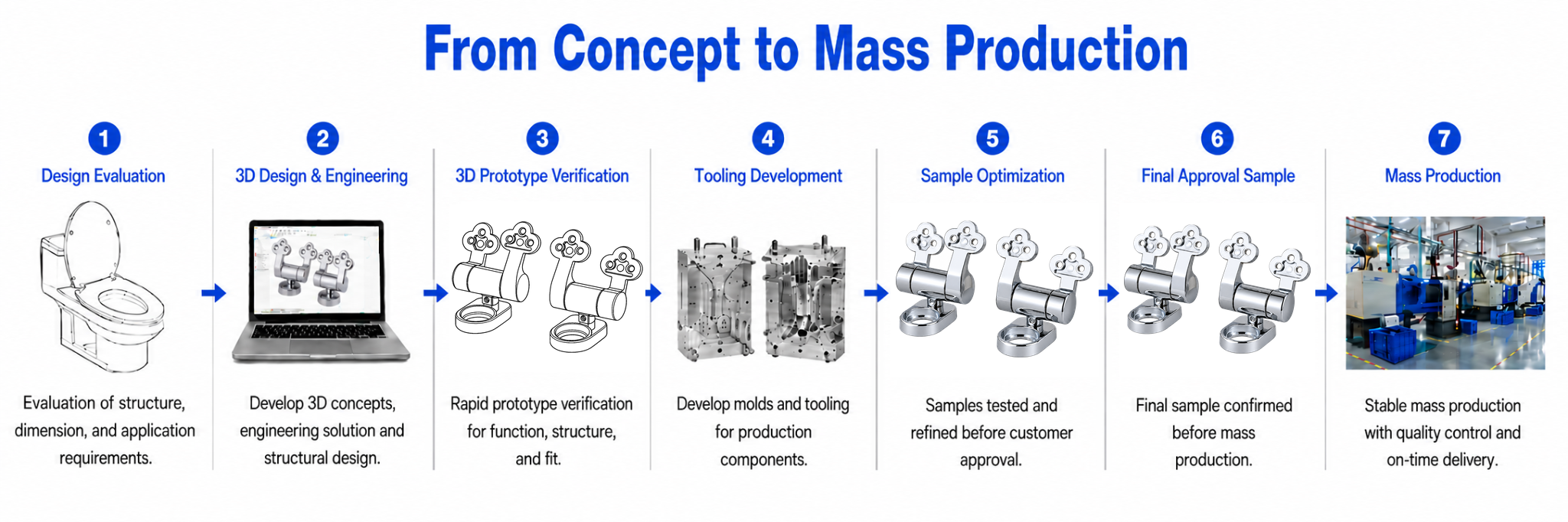

Development & Manufacturing Process

Development process for TY-S021 D-Shaped Base Zinc Alloy Soft-Closing Hinge for Wood and MDF Toilet Seats

Applications & Use Cases

Bamboo Toilet Seat
Bamboo Toilet Seat
MDF Toilet Seat
MDF Toilet Seat
Resin Toilet Seat
Resin Toilet Seat
Wood Toilet Seat
Wood Toilet Seat
