Home Products MDF / Metal Damper Two Piece TY-P029D Brushed Stainless Steel Two-Button Quick Release Toilet Seat Hinges with Soft Close and Adjustable Top Fixing

TY-P029D Brushed Stainless Steel Two-Button Quick Release Toilet Seat Hinges with Soft Close and Adjustable Top Fixing

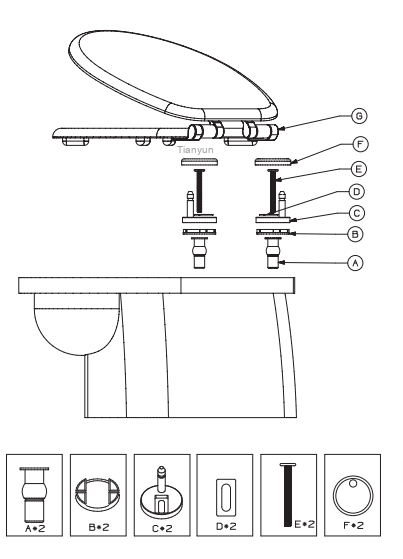

Choose TY-P029D for seat ranges with a brushed metal look. The stainless steel finish is less reflective than mirror polish, while integrated damping moderates seat and lid closure. For cleaning, press both release buttons and lift off the seat. Position-adjustable bases allow alignment before tightening, with top fixing from above the ceramic. Each pair comes with the TY-DM9 kit. MDF, wooden and resin seat manufacturers can specify dimensions, torque and fixing parts for OEM/ODM supply.
TY-P029D Brushed Stainless Steel Two-Button Quick Release Toilet Seat Hinges with Soft Close and Adjustable Top Fixing

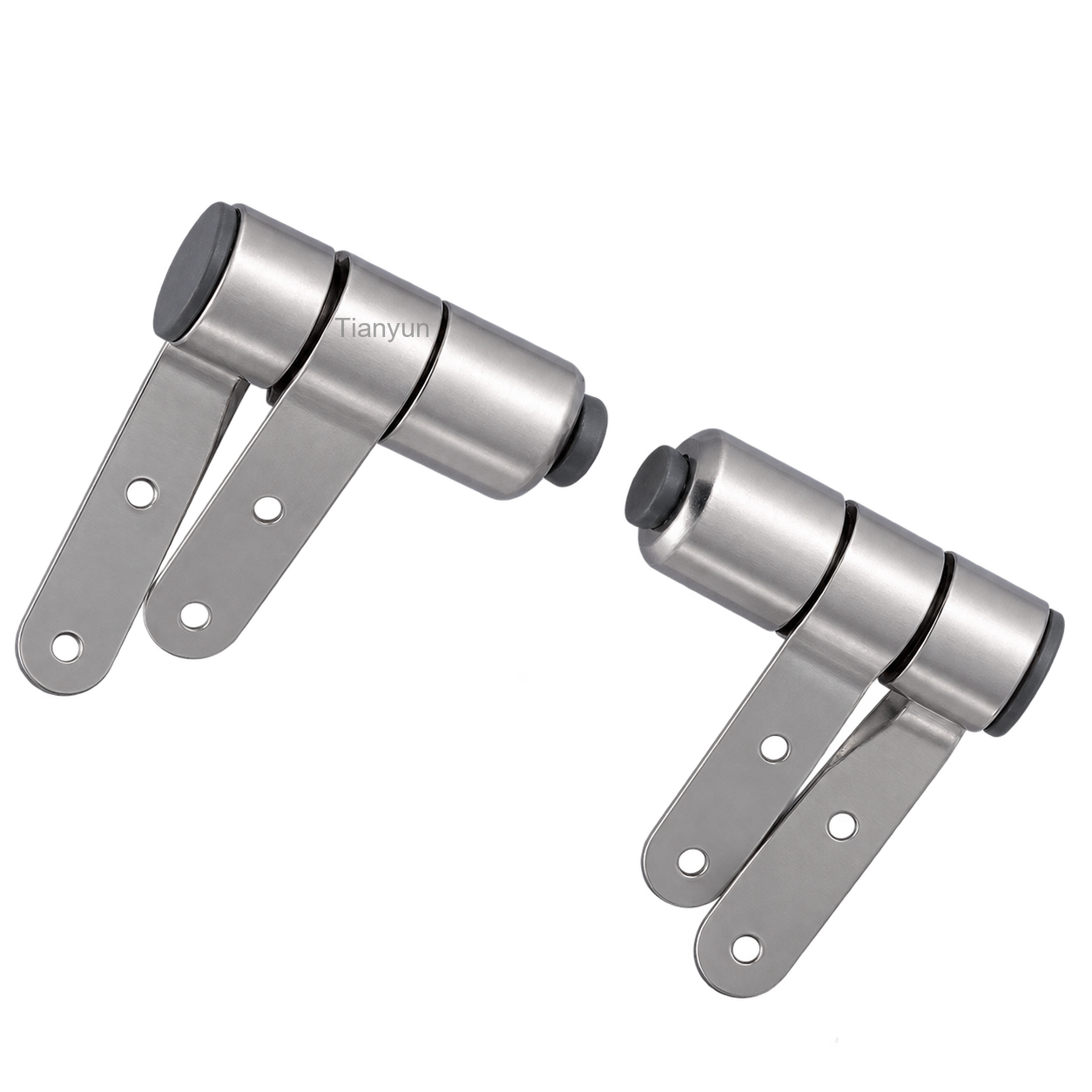

TY-P029D Brushed Stainless Steel Two-Button Quick Release Toilet Seat Hinges with Soft Close and Adjustable Top Fixing product view

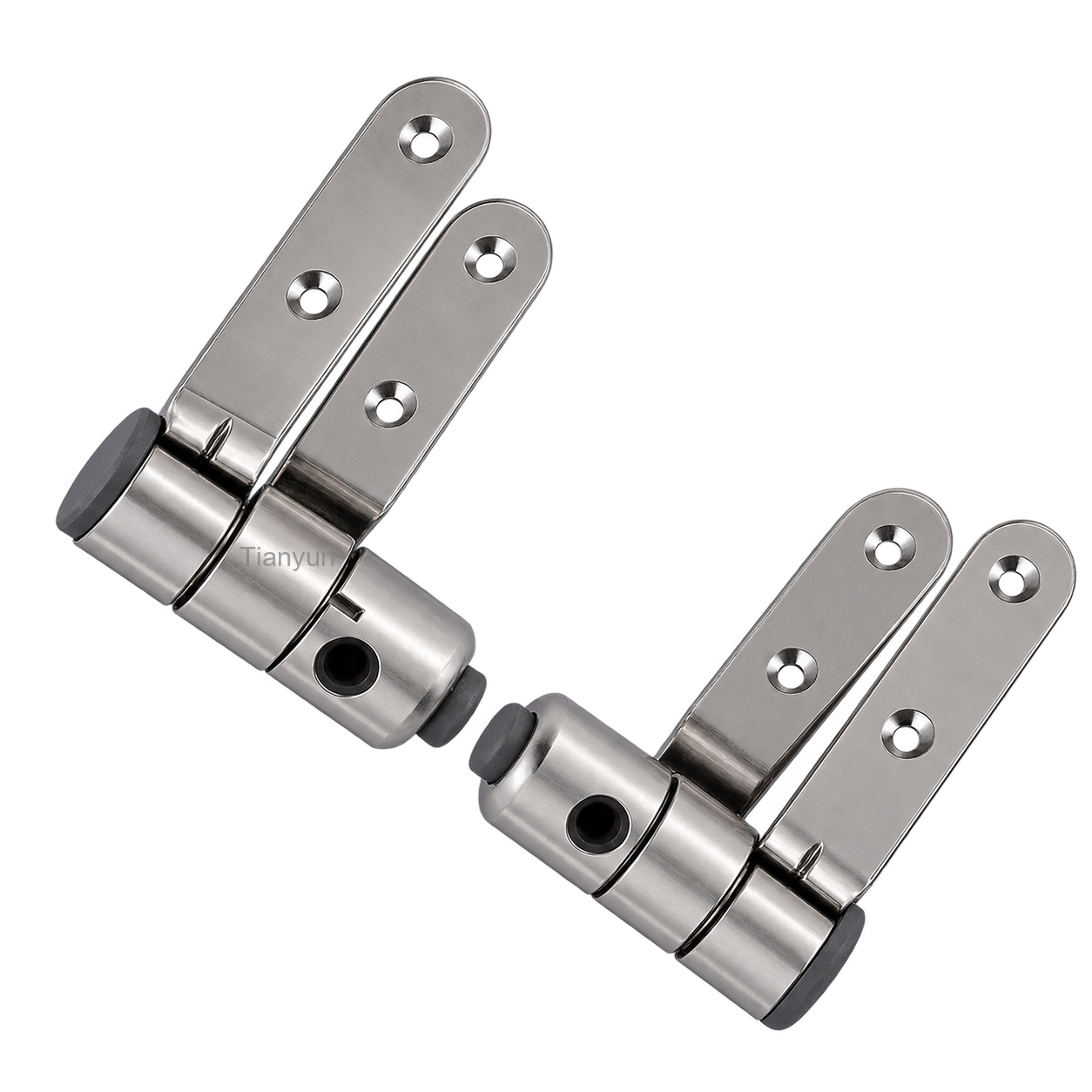

TY-P029D Brushed Stainless Steel Two-Button Quick Release Toilet Seat Hinges with Soft Close and Adjustable Top Fixing product view
TY-P029D Brushed Stainless Steel Two-Button Quick Release Toilet Seat Hinges with Soft Close and Adjustable Top Fixing product view
TY-P029D Brushed Stainless Steel Two-Button Quick Release Toilet Seat Hinges with Soft Close and Adjustable Top Fixing product view

Technical Specifications

Specification
Value
Quick Release Type
Click Pull-out Non
Installation
Bottom Top
Adjustable Or Not
Yes No
Pin Diameter
7mm 8mm 10mm Custom
Base Height
Custom
Base Shape
Round Teardrop Square Custom
Screw Thread
M5 M6 Custom
Screw Length
45mm 60mm 80mm Custom 55mm
Base&cover Diameter
45mm 50mm 55mm 60mm Custom 30mm
Base&cover Material
Full SUS304 Plastic+SUS304 Zinc Alloy
Surface Finish
Polished Brushed Matte Custom
Color
Custom
OEM / ODM Service
Available
Compatible Hinge
One Button Dual Button Keyless Traditional close
Seat Compatibility
UF PP MDF Wooden Resin

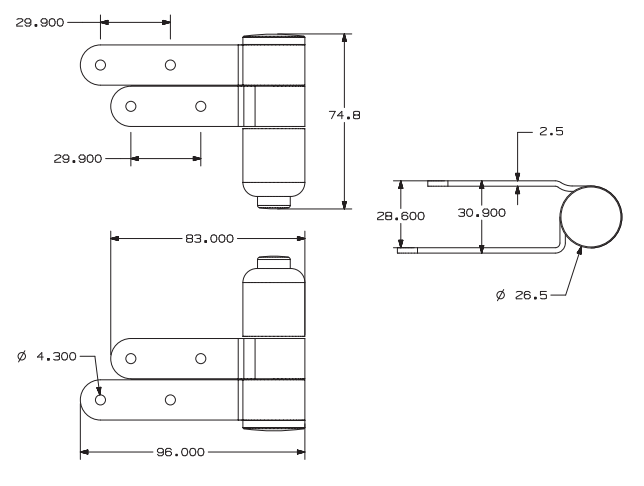

Dimensions & Technical Drawing

TY-P029D Brushed Stainless Steel Two-Button Quick Release Toilet Seat Hinges with Soft Close and Adjustable Top Fixing dimensions

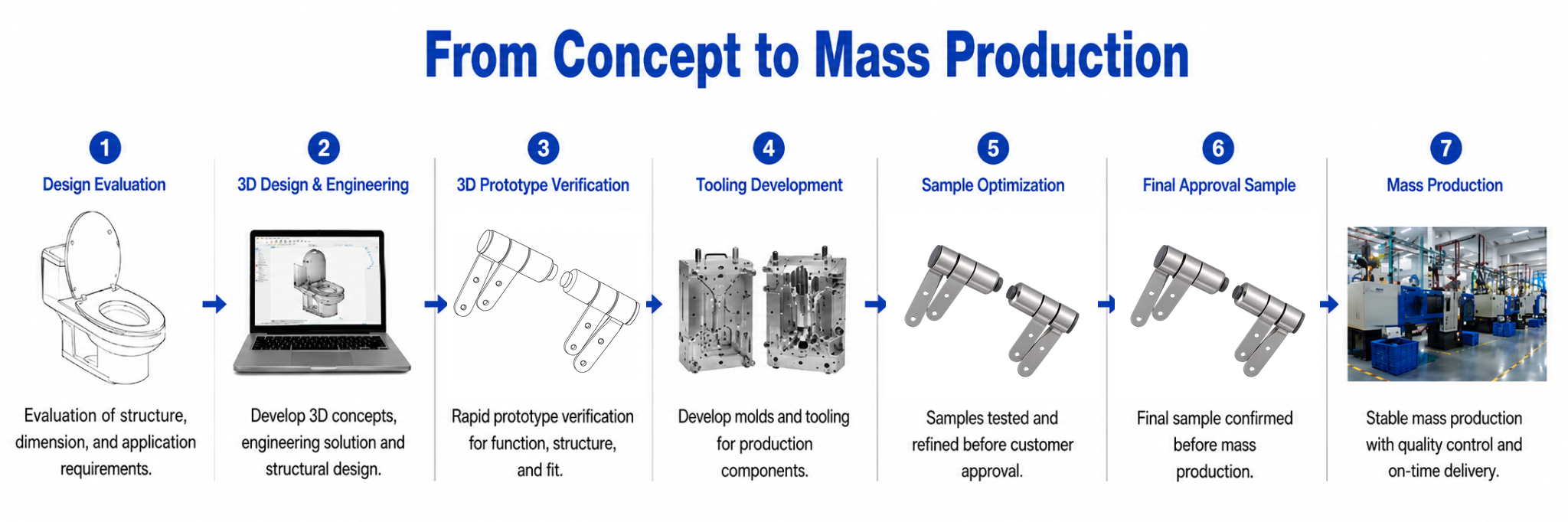

Development & Manufacturing Process

Development process for TY-P029D Brushed Stainless Steel Two-Button Quick Release Toilet Seat Hinges with Soft Close and Adjustable Top Fixing

Applications & Use Cases

Bamboo Toilet Seat
Bamboo Toilet Seat
MDF Toilet Seat
MDF Toilet Seat
Resin Toilet Seat
Resin Toilet Seat
Wooden Toilet Seat
Wooden Toilet Seat
