TY-P029C Mirror Polished Two-Button Quick Release Stainless Steel Bottom Fixing Soft Close Toilet Seat Hinges with Adjustable Bases

TY-P029C uses bottom fixing for ceramics with access beneath the mounting holes. Its adjustable bases help set the seat position before securing the fixings from below. Mirror-polished stainless steel adds a reflective finish, while two-button quick release makes the seat removable for cleaning. Soft-close damping controls seat and lid descent. Supplied as a pair with theTY-DM15 kit. Custom mounting dimensions and torque are available for MDF, wooden and resin seats through OEM/ODM development.
TY-P029C Mirror Polished Two-Button Quick Release Stainless Steel Bottom Fixing Soft Close Toilet Seat Hinges with Adjustable Bases

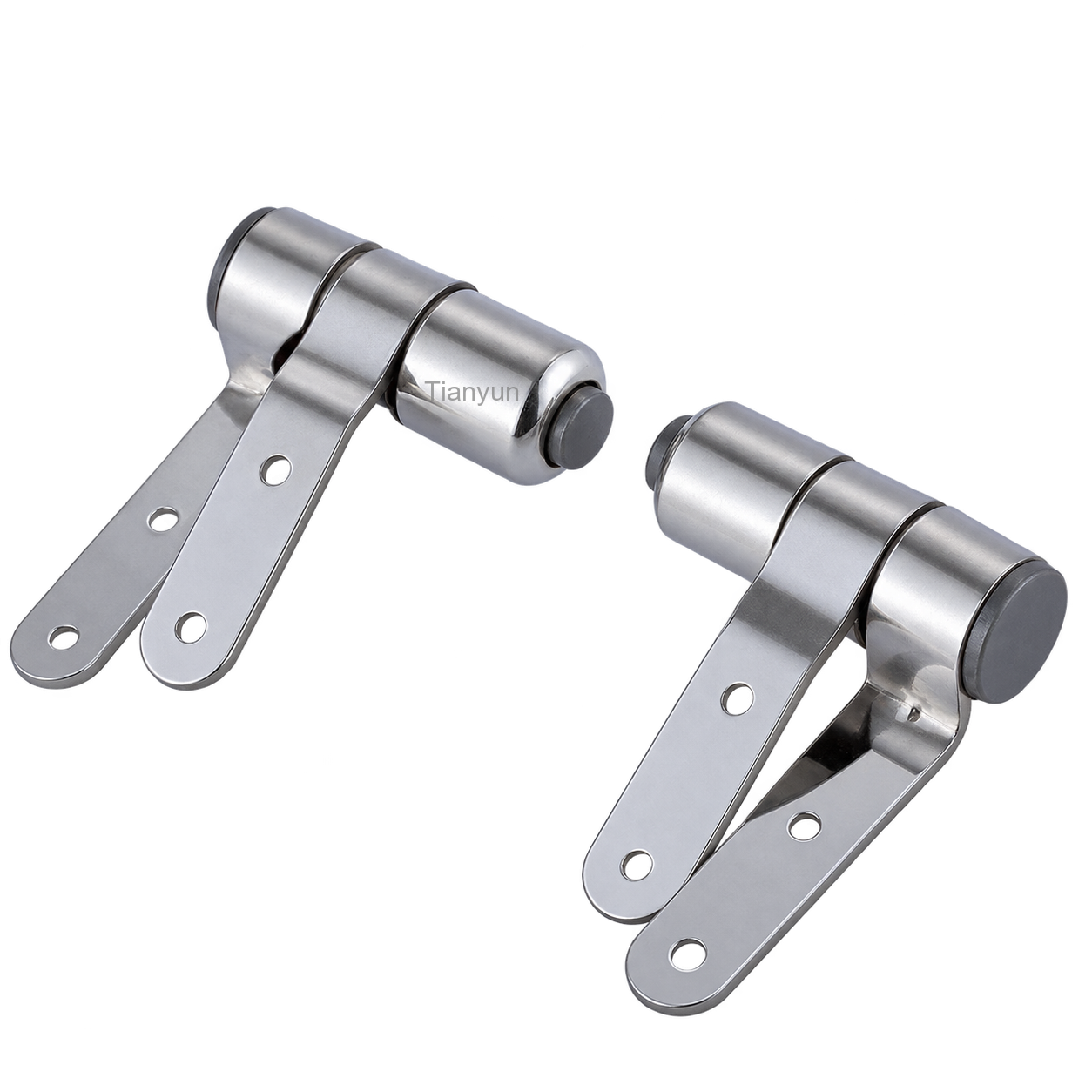

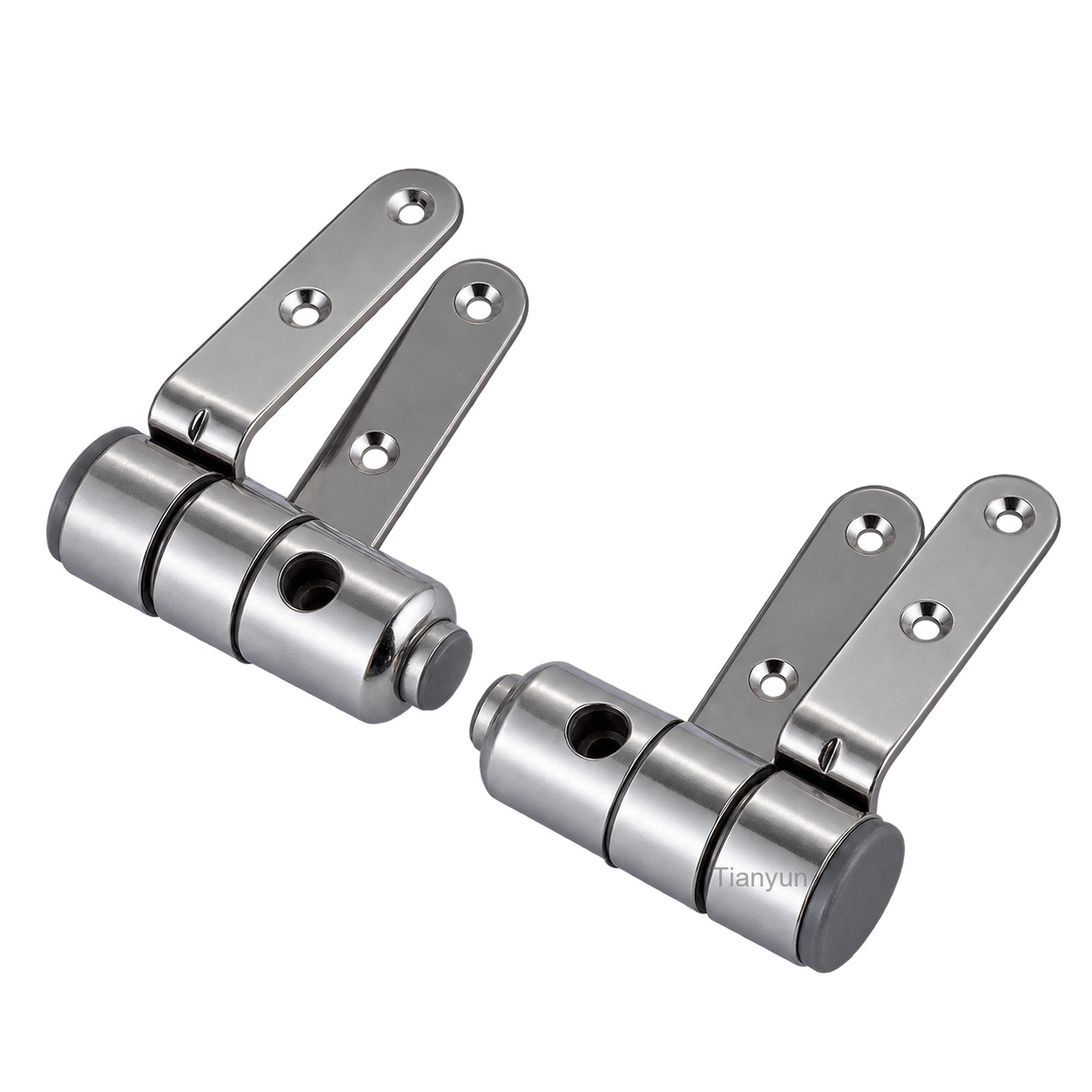

TY-P029C Mirror Polished Two-Button Quick Release Stainless Steel Bottom Fixing Soft Close Toilet Seat Hinges with Adjustable Bases product view
TY-P029C Mirror Polished Two-Button Quick Release Stainless Steel Bottom Fixing Soft Close Toilet Seat Hinges with Adjustable Bases product view
TY-P029C Mirror Polished Two-Button Quick Release Stainless Steel Bottom Fixing Soft Close Toilet Seat Hinges with Adjustable Bases product view
TY-P029C Mirror Polished Two-Button Quick Release Stainless Steel Bottom Fixing Soft Close Toilet Seat Hinges with Adjustable Bases product view

Technical Specifications

Specification
Value
Quick Release Type
Click Pull-out Non
Installation
Bottom Top
Adjustable Or Not
Yes No
Pin Diameter
7mm 8mm 10mm Custom
Base Height
Custom
Base Shape
Round Teardrop Square Custom
Screw Thread
M5 M6 Custom
Screw Length
45mm 60mm 80mm Custom 55mm
Base&cover Diameter
45mm 50mm 55mm 60mm Custom 30mm
Base&cover Material
Full SUS304 Plastic+SUS304 Zinc Alloy
Surface Finish
Polished Brushed Matte Custom
Color
Custom
OEM / ODM Service
Available
Compatible Hinge
One Button Dual Button Keyless Traditional close
Seat Compatibility
UF PP MDF Wooden Resin

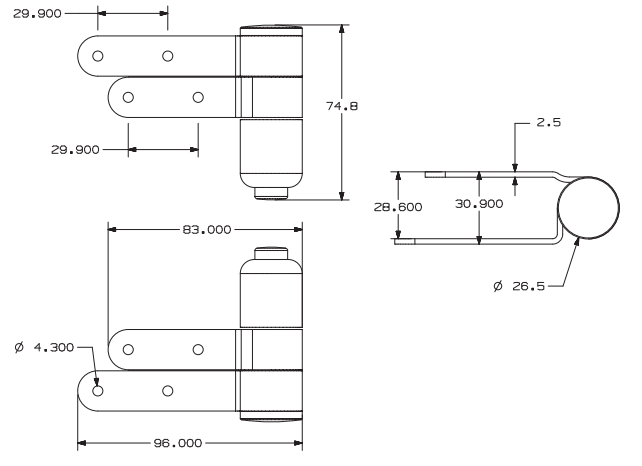

Dimensions & Technical Drawing

TY-P029C Mirror Polished Two-Button Quick Release Stainless Steel Bottom Fixing Soft Close Toilet Seat Hinges with Adjustable Bases dimensions

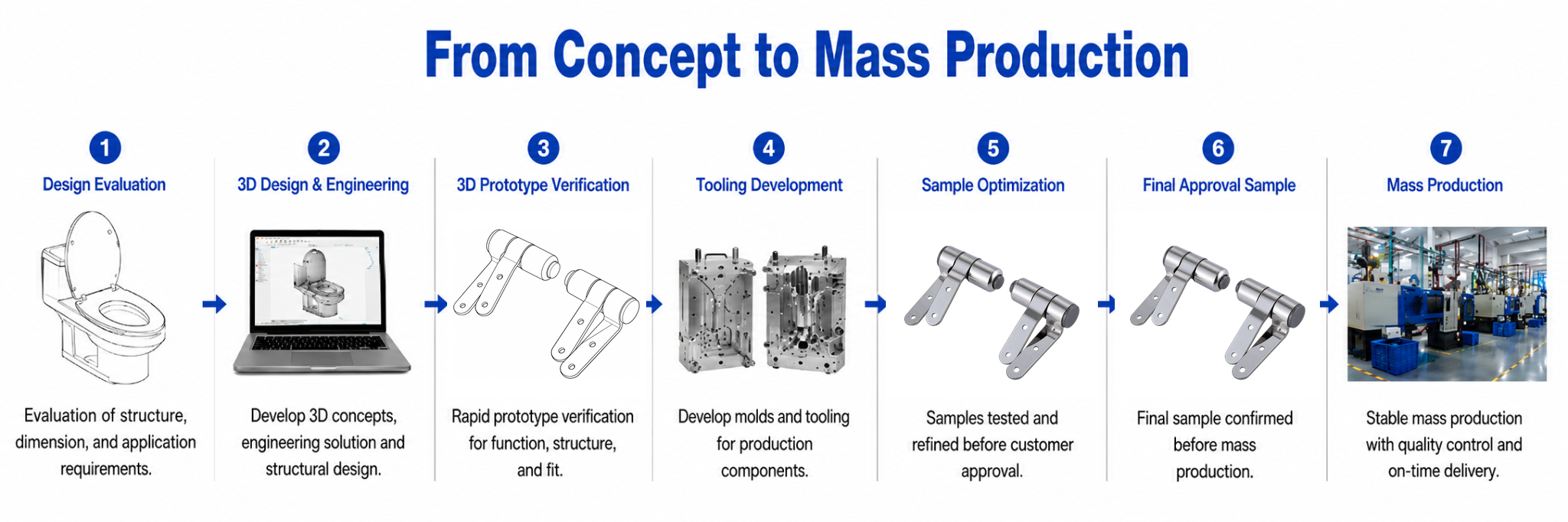

Development & Manufacturing Process

Development process for TY-P029C Mirror Polished Two-Button Quick Release Stainless Steel Bottom Fixing Soft Close Toilet Seat Hinges with Adjustable Bases

Applications & Use Cases

Bamboo Toilet Seat
Bamboo Toilet Seat
MDF Toilet Seat
MDF Toilet Seat
Resin Toilet Seat
Resin Toilet Seat
Wooden Toilet Seat
Wooden Toilet Seat
