Home Products MDF / Metal Damper Two Piece TY-K028 Tool-Free Pull-Out Quick Release Toilet Seat Soft Close Hinges Chrome Round Base

TY-K028 Tool-Free Pull-Out Quick Release Toilet Seat Soft Close Hinges Chrome Round Base

This metal soft-close toilet seat hinge features a tool-free, pull-off quick release. Simply lift the seat off for thorough cleaning. An integrated rotary damper provides a quiet, controlled close. The chrome-plated zinc alloy hinge has a round base for bottom fixing. Dimensions, damping torque and mounting components can be customized to your specifications or samples. Factory-direct OEM/ODM production is available.
TY-K028 Tool-Free Pull-Out Quick Release Toilet Seat Soft Close Hinges Chrome Round Base

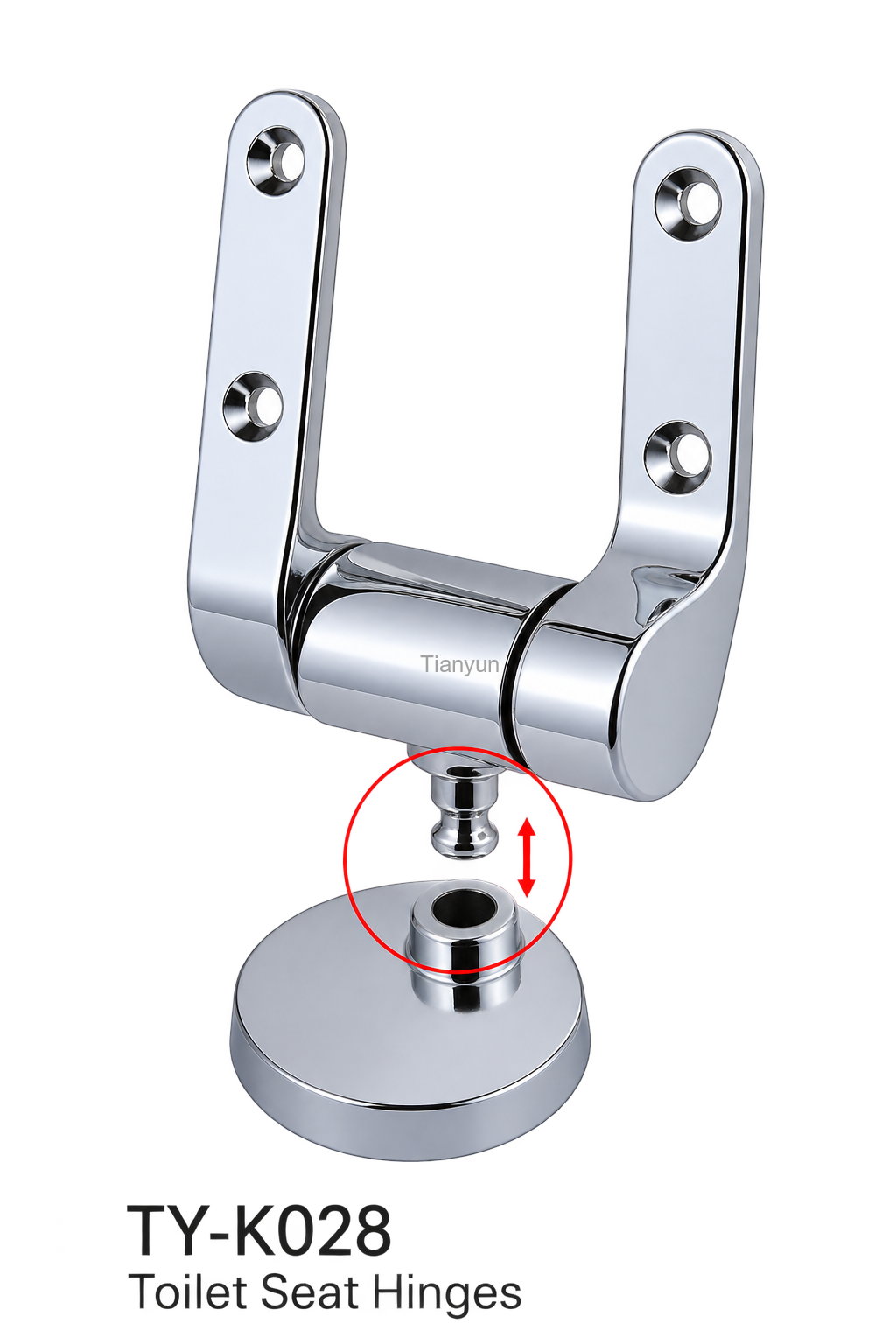

TY-K028 Tool-Free Pull-Out Quick Release Toilet Seat Soft Close Hinges Chrome Round Base product view

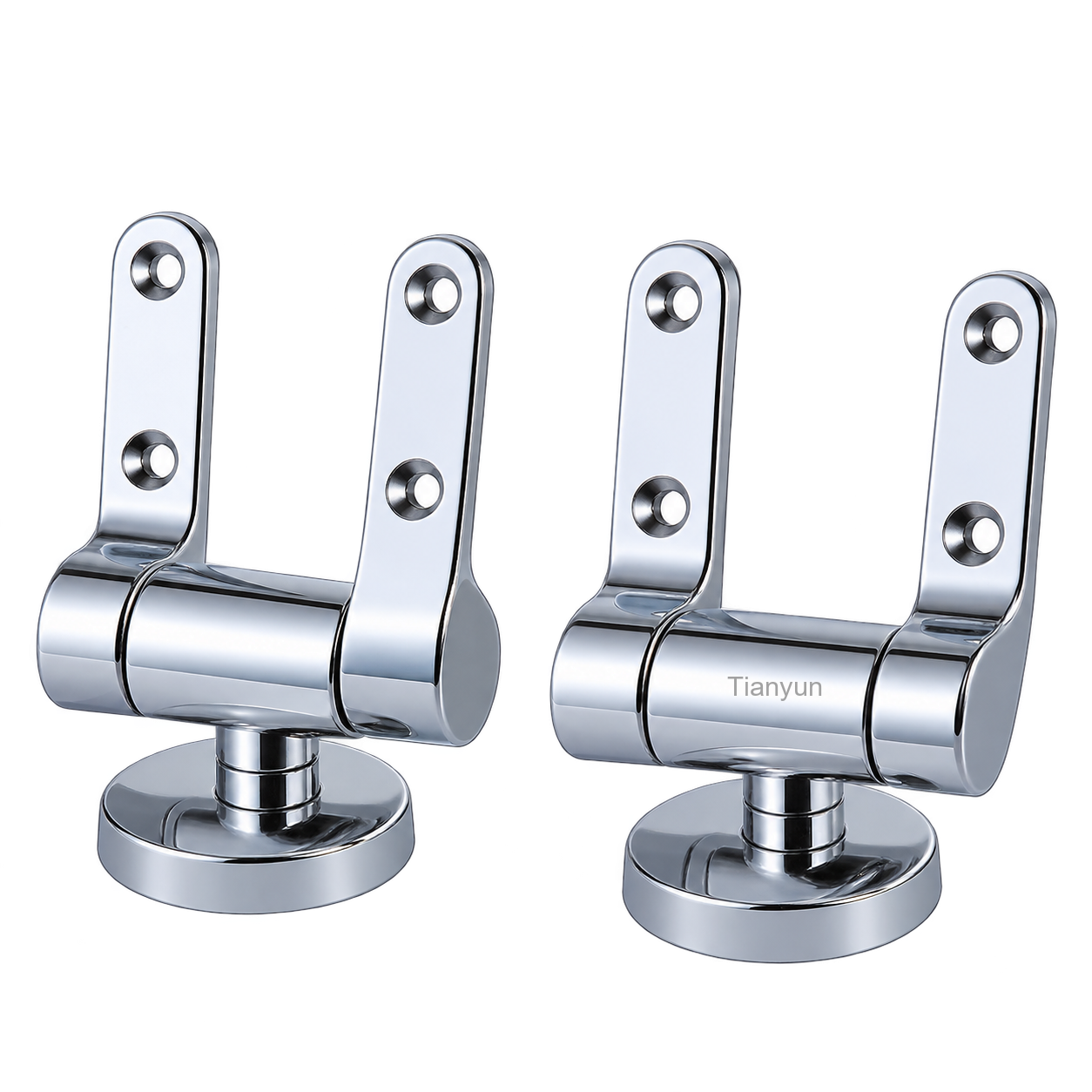

TY-K028 Tool-Free Pull-Out Quick Release Toilet Seat Soft Close Hinges Chrome Round Base product view

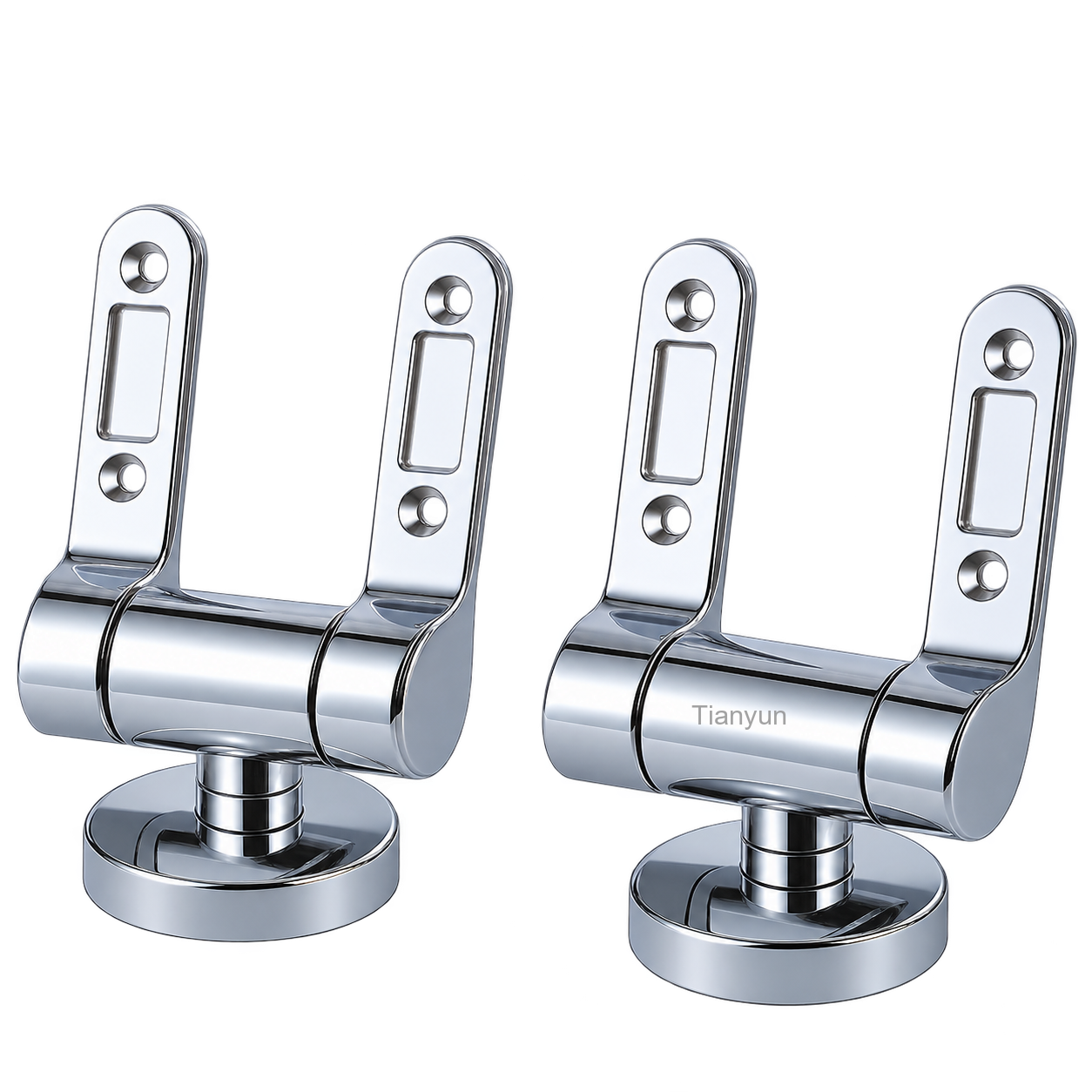

TY-K028 Tool-Free Pull-Out Quick Release Toilet Seat Soft Close Hinges Chrome Round Base product view
TY-K028 Tool-Free Pull-Out Quick Release Toilet Seat Soft Close Hinges Chrome Round Base product view
TY-K028 Tool-Free Pull-Out Quick Release Toilet Seat Soft Close Hinges Chrome Round Base product view

Technical Specifications

Specification
Value
Quick Release Type
Click Pull-out Non
Installation
Bottom Top
Adjustable Or Not
Yes No
Pin Diameter
7mm 8mm 10mm Custom
Base Height
Custom
Base Shape
Round Teardrop Square Custom
Screw Thread
M5 M6 Custom
Screw Length
45mm 60mm 80mm Custom 55mm
Base&cover Diameter
45mm 50mm 55mm 60mm Custom 30mm
Base&cover Material
Full SUS304 Plastic+SUS304 Zinc Alloy
Surface Finish
Polished Brushed Matte Custom
Color
Custom
OEM / ODM Service
Available
Compatible Hinge
One Button Dual Button Keyless Traditional close
Seat Compatibility
UF PP MDF Wooden Resin

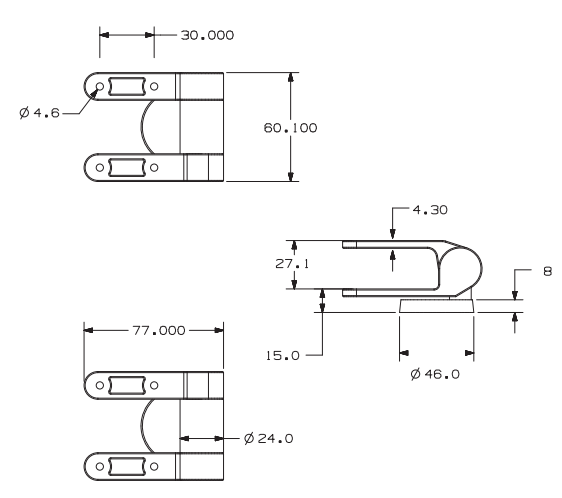

Dimensions & Technical Drawing

TY-K028 Tool-Free Pull-Out Quick Release Toilet Seat Soft Close Hinges Chrome Round Base dimensions

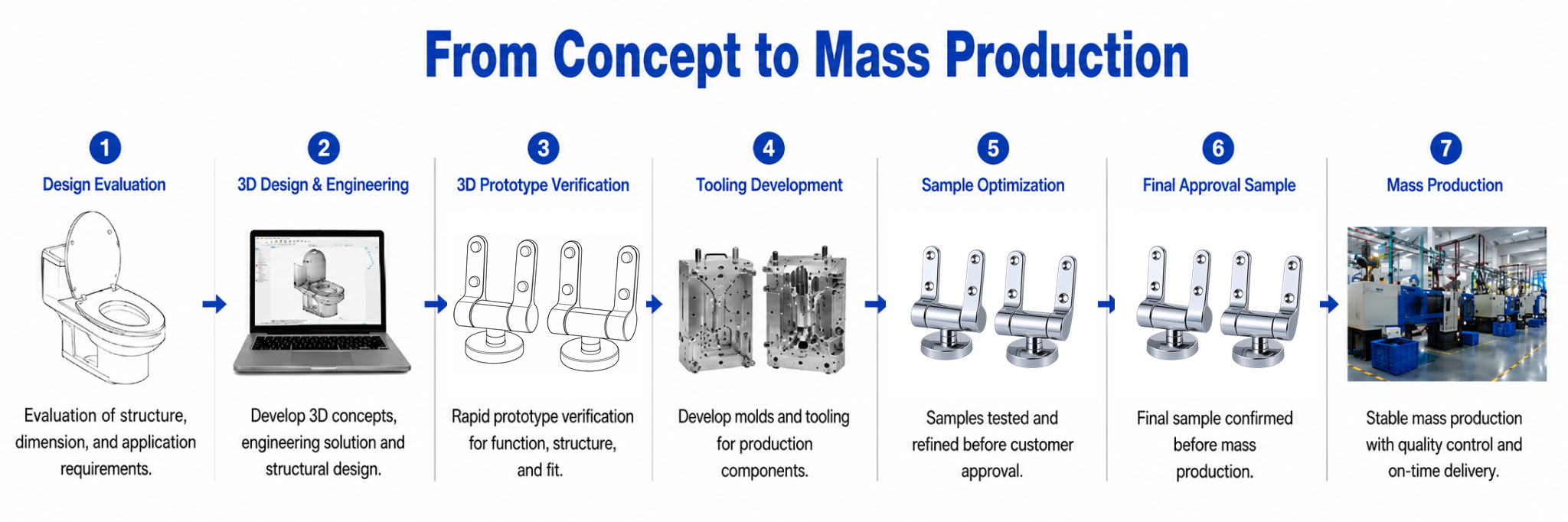

Development & Manufacturing Process

Development process for TY-K028 Tool-Free Pull-Out Quick Release Toilet Seat Soft Close Hinges Chrome Round Base

Applications & Use Cases

Wooden Toilet Seat
Wooden Toilet Seat
MDF Toilet Seat
MDF Toilet Seat
Resin Toilet Seat
Resin Toilet Seat
Bamboo Toilet Seat
Bamboo Toilet Seat
