Home Products MDF / Metal Damper Two Piece TY-K021 Zinc Alloy Soft-Close Quick-Release Hinge for Wood, MDF and Resin Toilet Seats

TY-K021 Zinc Alloy Soft-Close Quick-Release Hinge for Wood, MDF and Resin Toilet Seats

Designed for wood, MDF and resin toilet seats, this zinc alloy hinge combines controlled soft closing with a convenient quick-release structure. Its metal body provides stable support for heavier seat and lid assemblies, while the multi-point screw connection helps secure the hinge to compatible cover structures. Hinge dimensions, damping torque, mounting components and surface finishes can be developed for OEM and ODM projects based on drawings or samples.
TY-K021 Zinc Alloy Soft-Close Quick-Release Hinge for Wood, MDF and Resin Toilet Seats

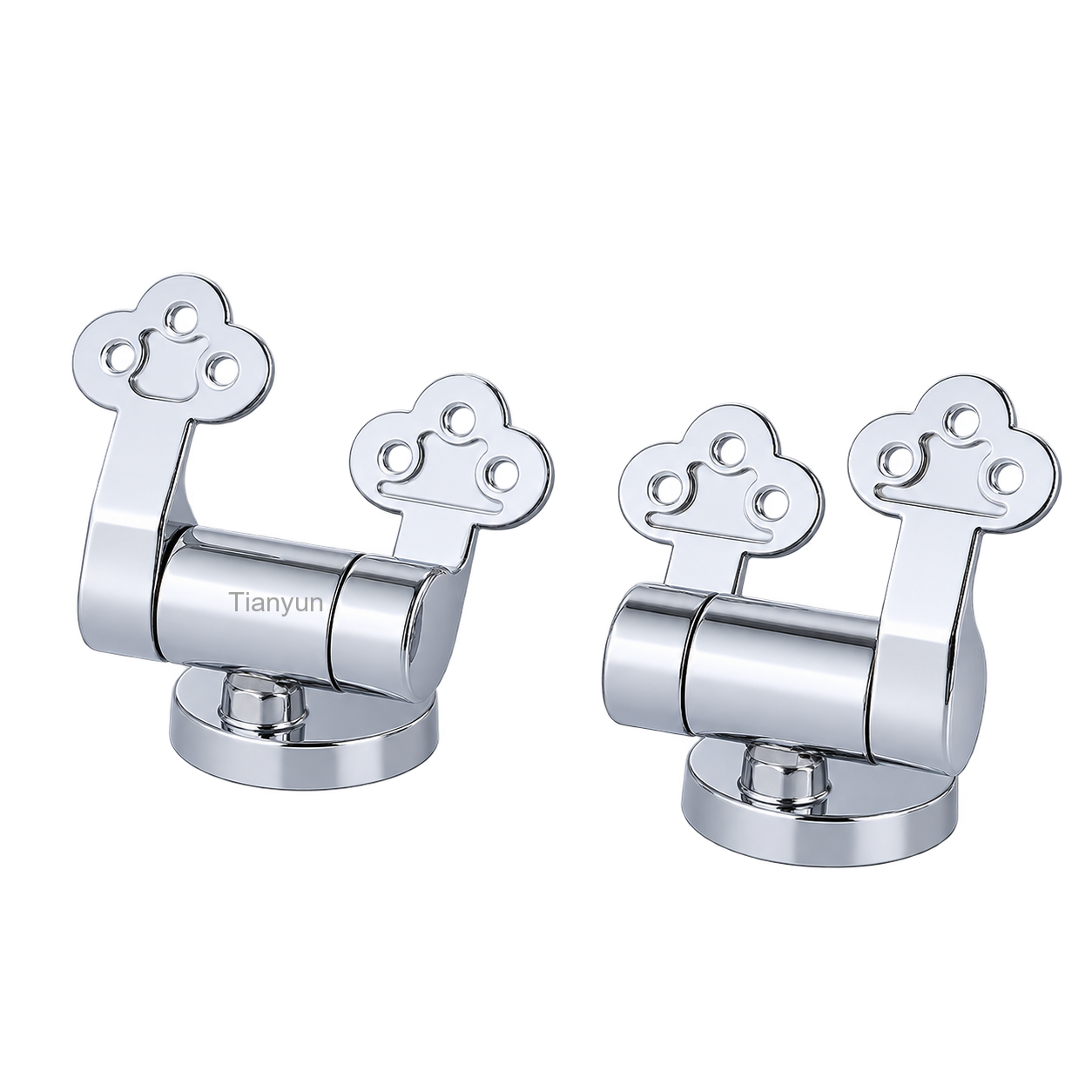

TY-K021 Zinc Alloy Soft-Close Quick-Release Hinge for Wood, MDF and Resin Toilet Seats product view

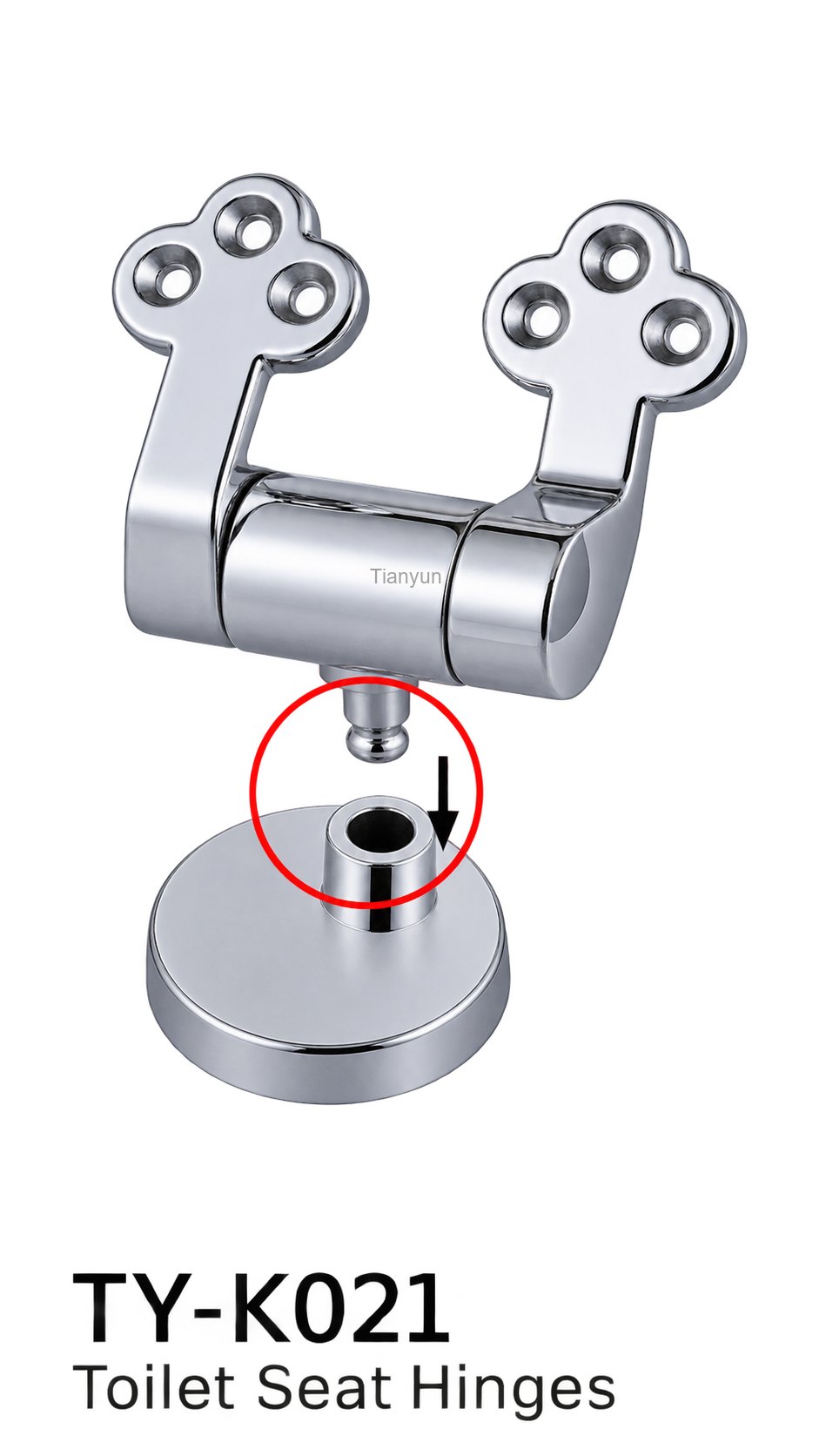

TY-K021 Zinc Alloy Soft-Close Quick-Release Hinge for Wood, MDF and Resin Toilet Seats product view

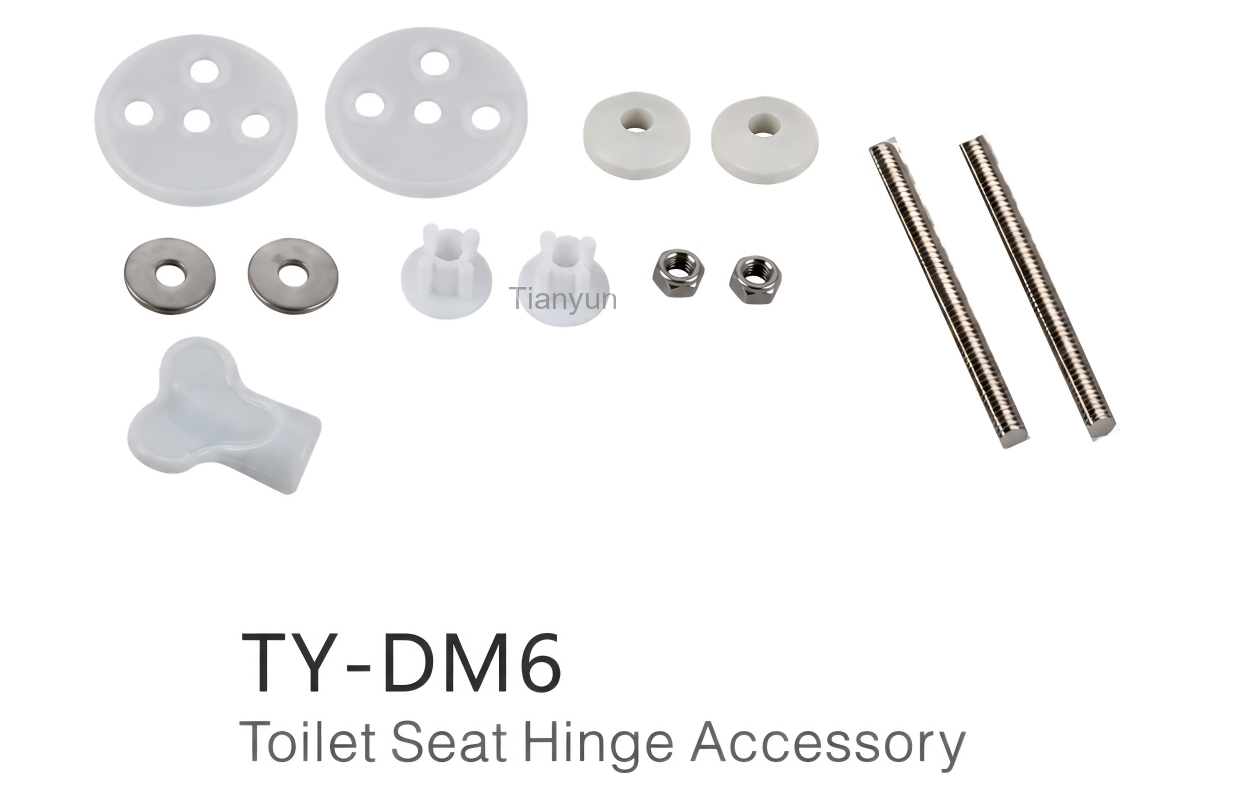

TY-K021 Zinc Alloy Soft-Close Quick-Release Hinge for Wood, MDF and Resin Toilet Seats product view

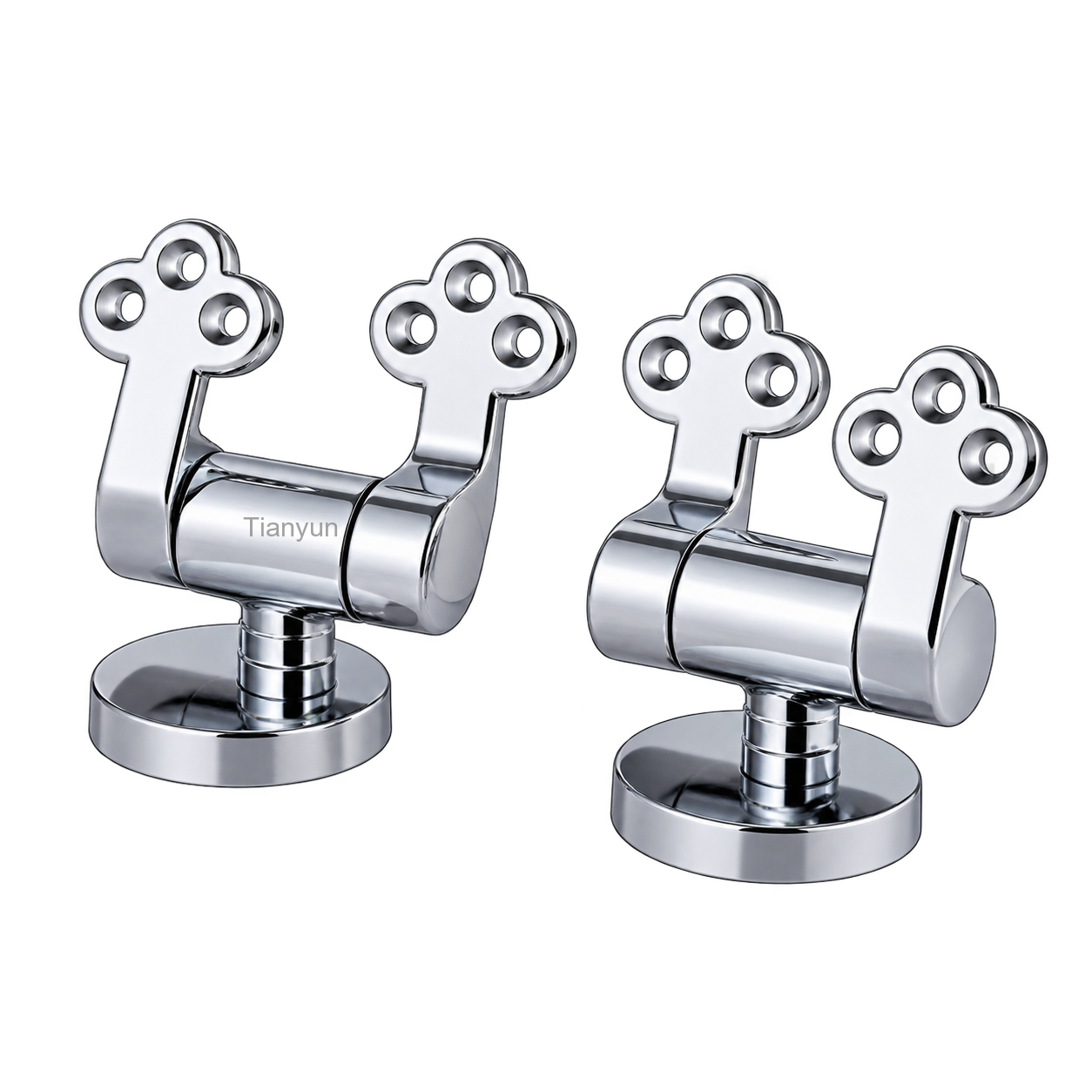

TY-K021 Zinc Alloy Soft-Close Quick-Release Hinge for Wood, MDF and Resin Toilet Seats product view
TY-K021 Zinc Alloy Soft-Close Quick-Release Hinge for Wood, MDF and Resin Toilet Seats product view

Technical Specifications

Specification
Value
Quick Release Type
Click Pull-out Non
Installation
Bottom Top
Adjustable Or Not
Yes No
Pin Diameter
7mm 8mm 10mm Custom
Base Height
Custom
Base Shape
Round Teardrop Square Custom
Screw Thread
M5 M6 Custom
Screw Length
45mm 60mm 80mm Custom 55mm
Base&cover Diameter
45mm 50mm 55mm 60mm Custom 30mm
Base&cover Material
Full SUS304 Plastic+SUS304 Zinc Alloy
Surface Finish
Polished Brushed Matte Custom
Color
Custom
OEM / ODM Service
Available
Compatible Hinge
One Button Dual Button Keyless Traditional close
Seat Compatibility
UF PP MDF Wooden Resin

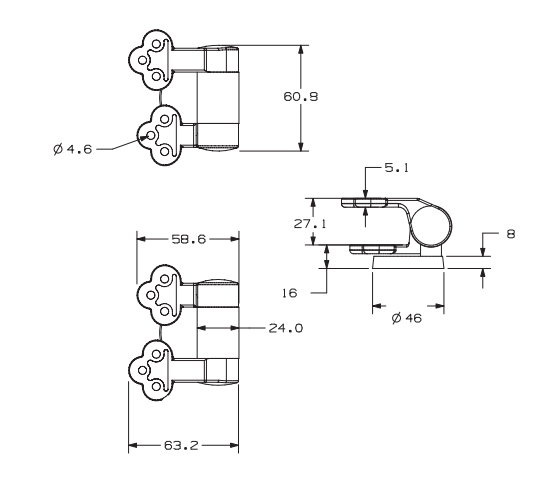

Dimensions & Technical Drawing

TY-K021 Zinc Alloy Soft-Close Quick-Release Hinge for Wood, MDF and Resin Toilet Seats dimensions

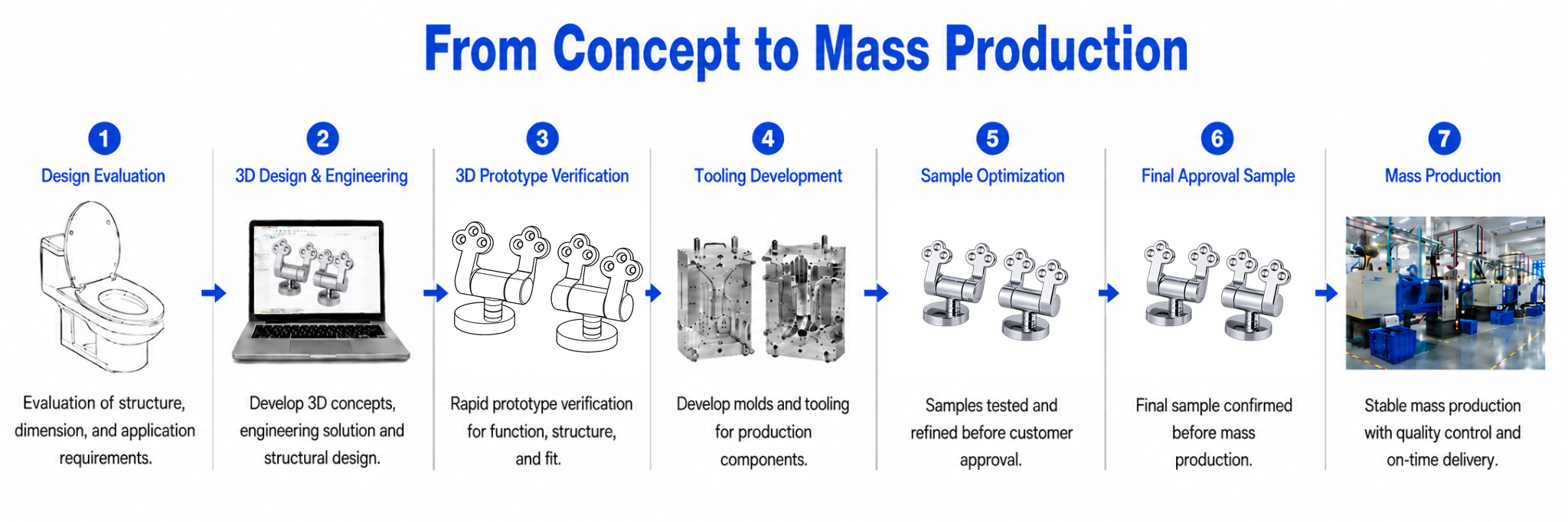

Development & Manufacturing Process

Development process for TY-K021 Zinc Alloy Soft-Close Quick-Release Hinge for Wood, MDF and Resin Toilet Seats

Applications & Use Cases

Bamboo Toilet Seat
Bamboo Toilet Seat
MDF Toilet Seat
MDF Toilet Seat
Resin Toilet Seat
Resin Toilet Seat
Wood Toilet Seat
Wood Toilet Seat
