23 mm Diameter Two-Button Quick-Release Soft-Close Toilet Seat Damper

Designed for PP and UF toilet seats, TY-D13-232K combines a 23 mm diameter soft-close damper with a two-button quick-release system. Pressing both buttons unlocks the seat from the hinge assembly for fast removal, making cleaning around the mounting area easier. The damper controls lid descent, while factory-customized torque options from 1.5 to 3.5 N·m support different seat weights and hinge designs.
23 mm Diameter Two-Button Quick-Release Soft-Close Toilet Seat Damper

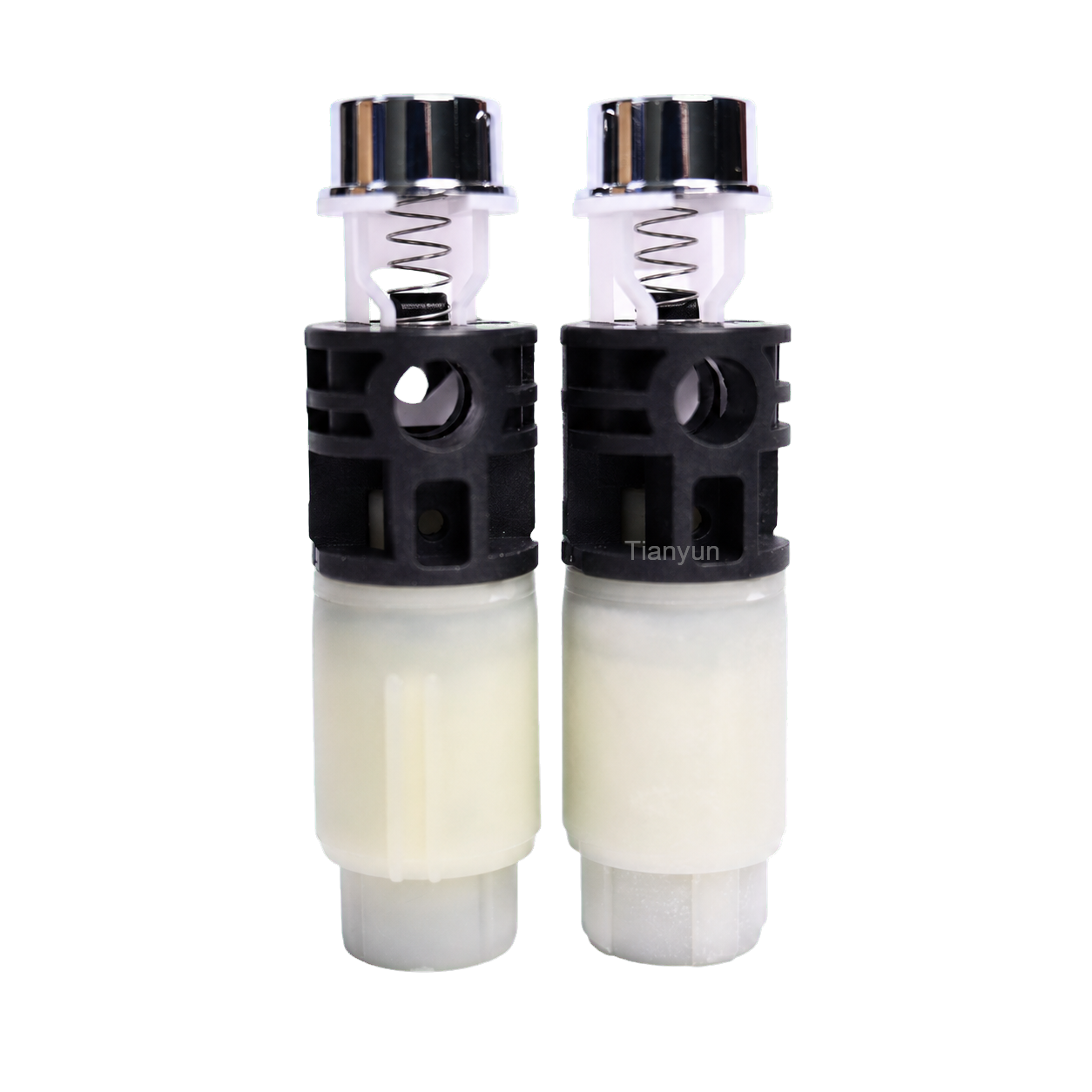

23 mm Diameter Two-Button Quick-Release Soft-Close Toilet Seat Damper product view

Technical Specifications

Specification
Value
Product CODE
TY-D13-232K
Product Type
Vane Damper One Button Damper Dual Button Damper Rotary Damper Pull-Out Damper
Slow Close Time
10-20S
Silicone Oil
Imported
Core / Shaft Material
PA66 + 50% GF Zinc Alloy POM+30%GF
Housing Material
POM+30%GF PA66+30%GF PBT PA66+50%GF
Opening Angle
110°
Rotation Direction
One-way Two-way
Adjustable Torque Or Not
Yes No
Torque Range
1.5-3.5 N·m 1.5-4 N·m 1.5-4.5 N·m Custom Torque
Color
Custom
Working Temperature
-10℃-50℃
Application
Toilet Seat Rice Cooker Air Cooler Washing Machine Air Purifier Coffee Machine Smart Trash Can Vacuum Dust Bin Other Home Appliances
OEM / ODM Service
Available

Dimensions & Technical Drawing

23 mm Diameter Two-Button Quick-Release Soft-Close Toilet Seat Damper dimensions

Development & Manufacturing Process

Development process for 23 mm Diameter Two-Button Quick-Release Soft-Close Toilet Seat Damper

Applications & Use Cases

Two Button Quick Release Toilet Seat
Two Button Quick Release Toilet Seat
Soft Close Toilet Seat
Soft Close Toilet Seat
PP Toilet Seat
PP Toilet Seat
UF Toilet Seat
UF Toilet Seat
