20 mm Diameter 2-Button Quick-Release Soft-Close Hinge Damper

Developed for removable PP and UF toilet seats, TY-D10-202K2 integrates soft-close damping with a two-button quick-release interface. Pressing both buttons releases the seat from its hinge mounts, providing clear access around the fixing area for easier cleaning. Factory-customized torque from 1.5 to 3.5 N·m helps the damper match different lid weights and hinge designs.
20 mm Diameter 2-Button Quick-Release Soft-Close Hinge Damper

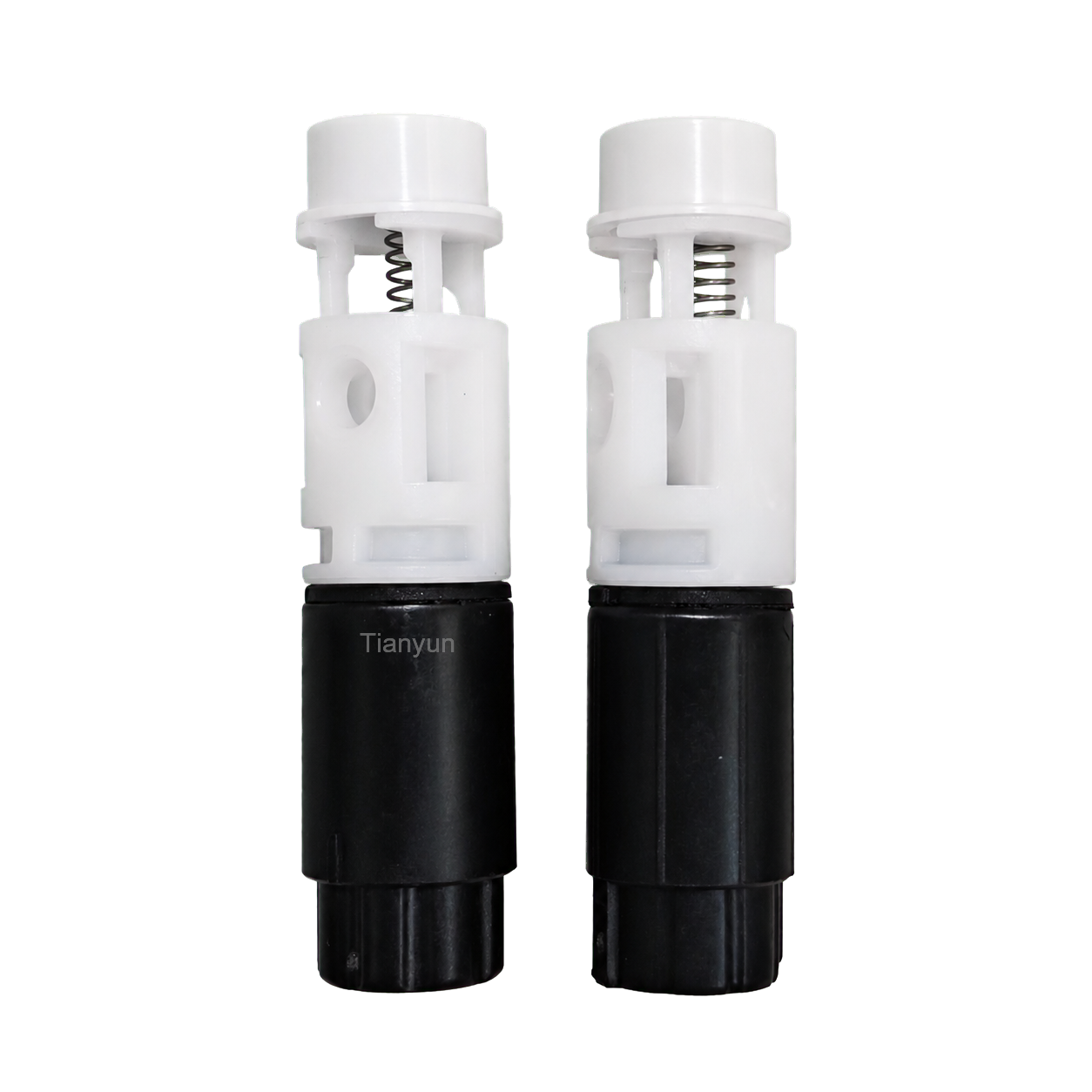

20 mm Diameter 2-Button Quick-Release Soft-Close Hinge Damper product view

Technical Specifications

Specification
Value
Product CODE
TY-D10-202K2
Product Type
Vane Damper One Button Damper Dual Button Damper Rotary Damper Pull-Out Damper
Slow Close Time
10-20S
Silicone Oil
Imported
Core / Shaft Material
PA66 + 50% GF Zinc Alloy POM+30%GF
Housing Material
POM+30%GF PA66+30%GF PBT PA66+50%GF
Opening Angle
110°
Rotation Direction
One-way Two-way
Adjustable Torque Or Not
Yes No
Torque Range
1.5-3.5 N·m 1.5-4 N·m 1.5-4.5 N·m Custom Torque
Color
Custom
Working Temperature
-10℃-50℃
Application
Toilet Seat Rice Cooker Air Cooler Washing Machine Air Purifier Coffee Machine Smart Trash Can Vacuum Dust Bin Other Home Appliances
OEM / ODM Service
Available

Dimensions & Technical Drawing

20 mm Diameter 2-Button Quick-Release Soft-Close Hinge Damper dimensions

Development & Manufacturing Process

Development process for 20 mm Diameter 2-Button Quick-Release Soft-Close Hinge Damper

Applications & Use Cases

Two Button Quick Release Toilet Seat
Two Button Quick Release Toilet Seat
Soft Close Toilet Seat
Soft Close Toilet Seat
PP Toilet Seat
PP Toilet Seat
UF Toilet Seat
UF Toilet Seat
