24 mm Diameter Two-Button Quick-Release Toilet Seat Damper

TY-D1-242K is a 24 mm diameter two-button quick-release damper developed for PP and UF soft-close toilet seats. Its Two Click mechanism allows the seat to be detached by pressing the two release buttons, providing easier access around the hinge area for cleaning and maintenance. Factory-customized torque options from 1.5 to 4 N·m help match different seat weights and closing requirements.
24 mm Diameter Two-Button Quick-Release Toilet Seat Damper

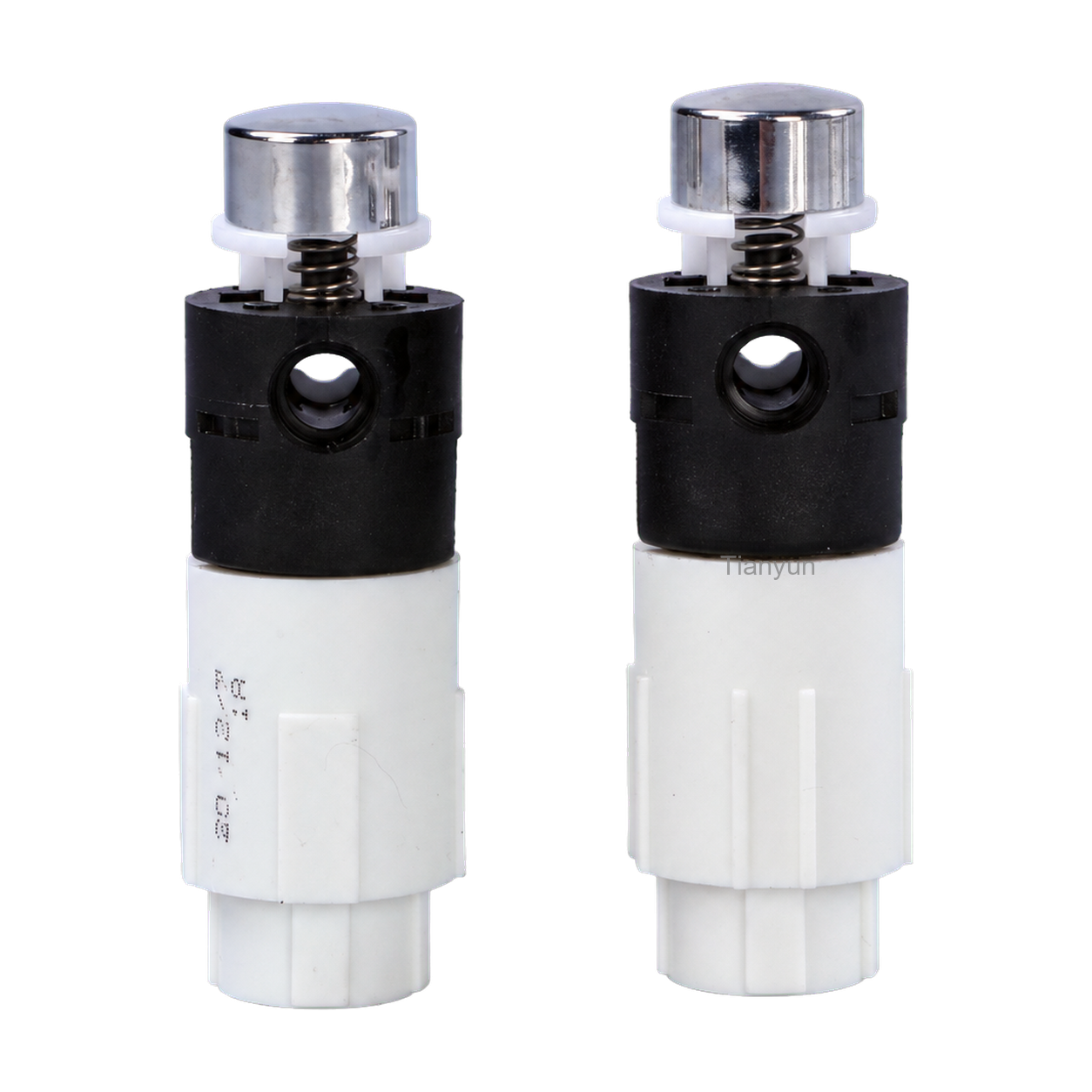

24 mm Diameter Two-Button Quick-Release Toilet Seat Damper product view

Technical Specifications

Specification
Value
Product CODE
TY-D1-242K
Product Type
Vane Damper One Button Damper Dual Button Damper Rotary Damper Pull-Out Damper
Slow Close Time
10-20S
Silicone Oil
Imported
Core / Shaft Material
PA66 + 50% GF Zinc Alloy POM+30%GF
Housing Material
POM+30%GF PA66+30%GF PBT PA66+50%GF
Opening Angle
110°
Rotation Direction
One-way Two-way
Adjustable Torque Or Not
Yes No
Torque Range
1.5-3.5 N·m 1.5-4 N·m 1.5-4.5 N·m Custom Torque
Color
Custom
Working Temperature
-10℃-50℃
Application
Toilet Seat Rice Cooker Air Cooler Washing Machine Air Purifier Coffee Machine Smart Trash Can Vacuum Dust Bin Other Home Appliances
OEM / ODM Service
Available

Dimensions & Technical Drawing

24 mm Diameter Two-Button Quick-Release Toilet Seat Damper dimensions

Development & Manufacturing Process

Development process for 24 mm Diameter Two-Button Quick-Release Toilet Seat Damper

Applications & Use Cases

Two Button Quick Release Toilet Seat
Two Button Quick Release Toilet Seat
Soft Close Toilet Seat
Soft Close Toilet Seat
PP Toilet Seat
PP Toilet Seat
UF Toilet Seat
UF Toilet Seat
