138mm Heavy Duty Stainless Steel Soft Close Hinge for MDF,Wood and Resin Soft Close Toilet Seats

Designed for MDF, wood and resin soft-close toilet seats, this 138.5 mm stainless steel hinge combines controlled closing with one-button quick release. Pressing the center button allows the seat to detach for easier cleaning and maintenance. Its reinforced metal structure suits heavier decorative seats, with customized damping torque available to match different seat weights and hinge requirements.

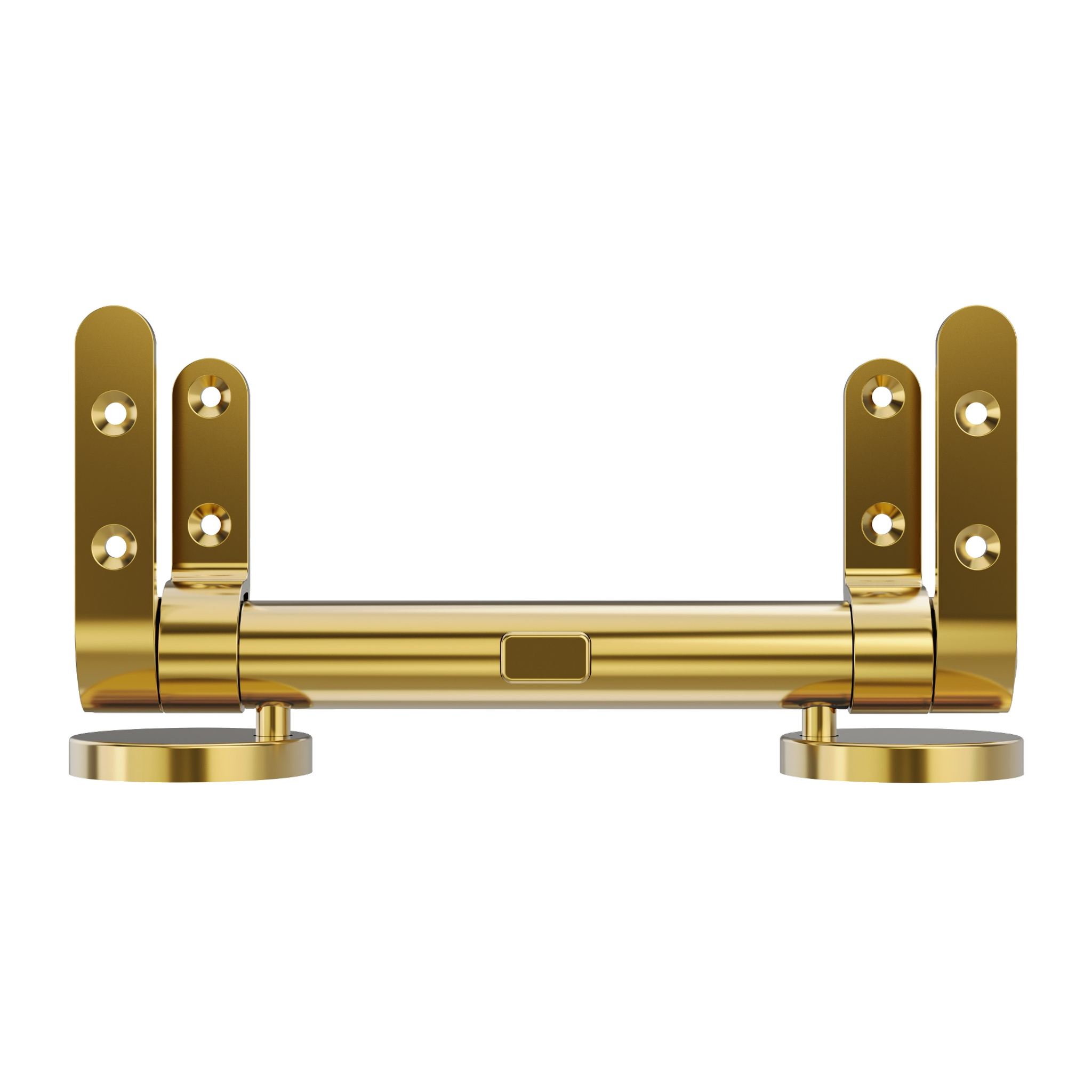

138mm Heavy Duty Stainless Steel Soft Close Hinge for MDF,Wood and Resin Soft Close Toilet Seats

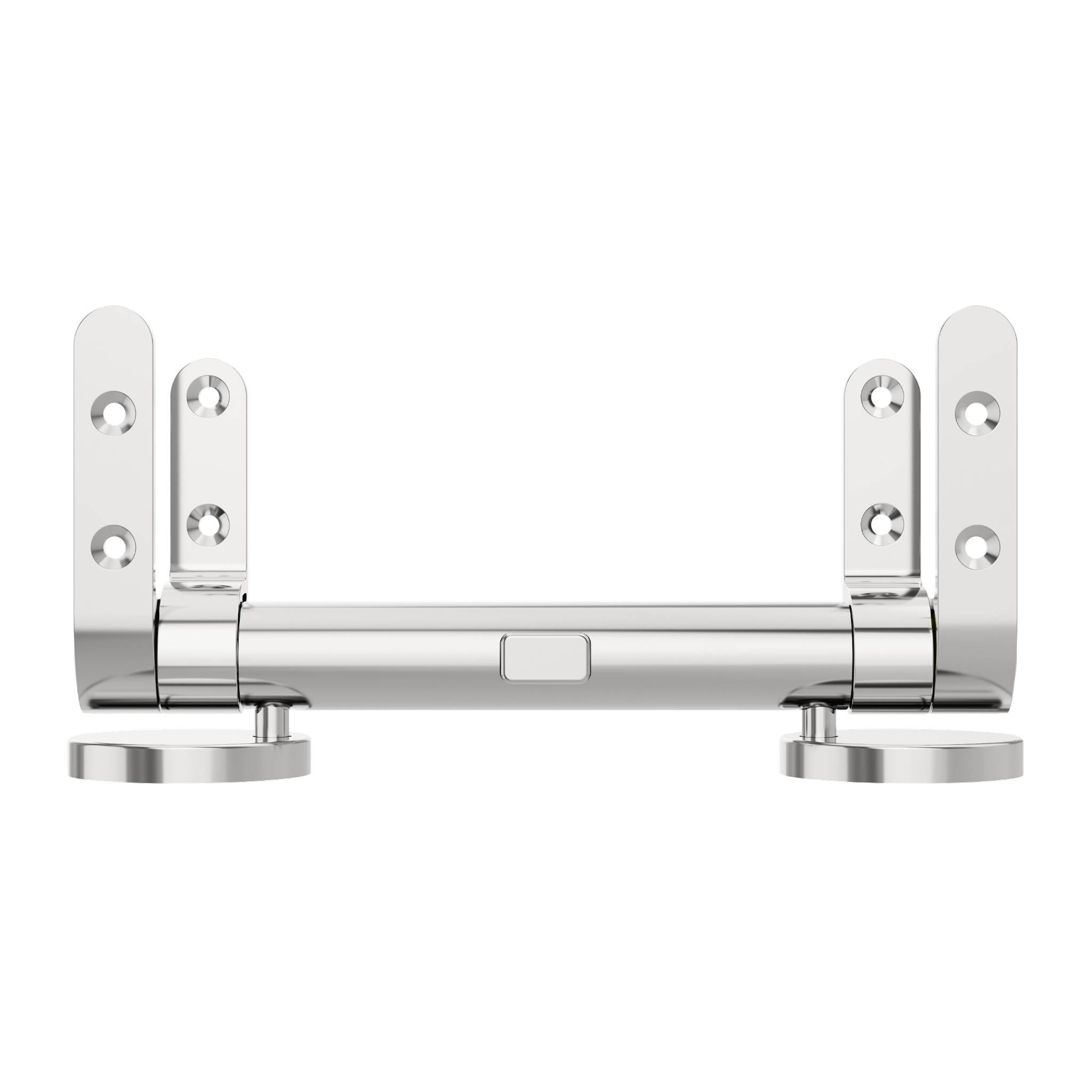

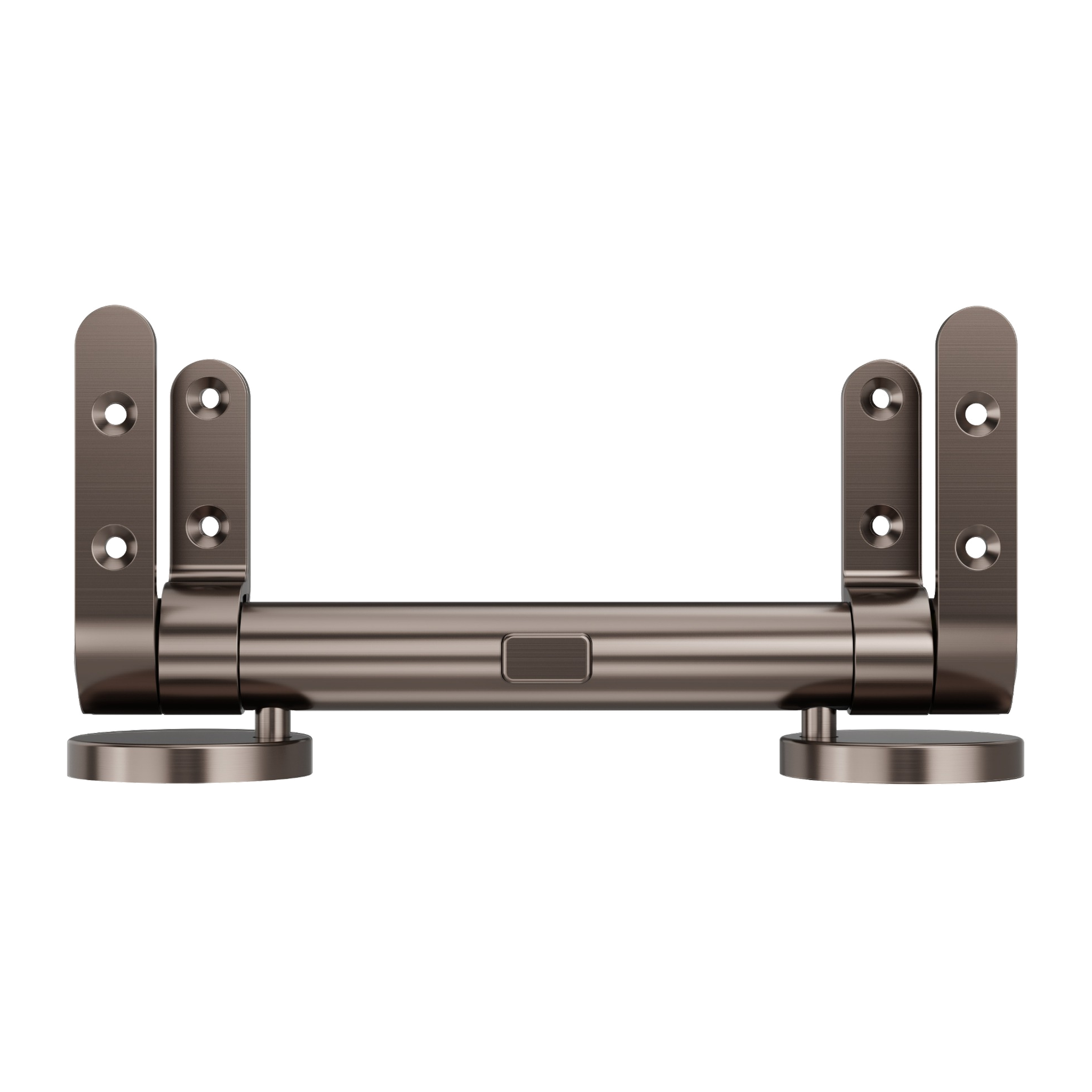

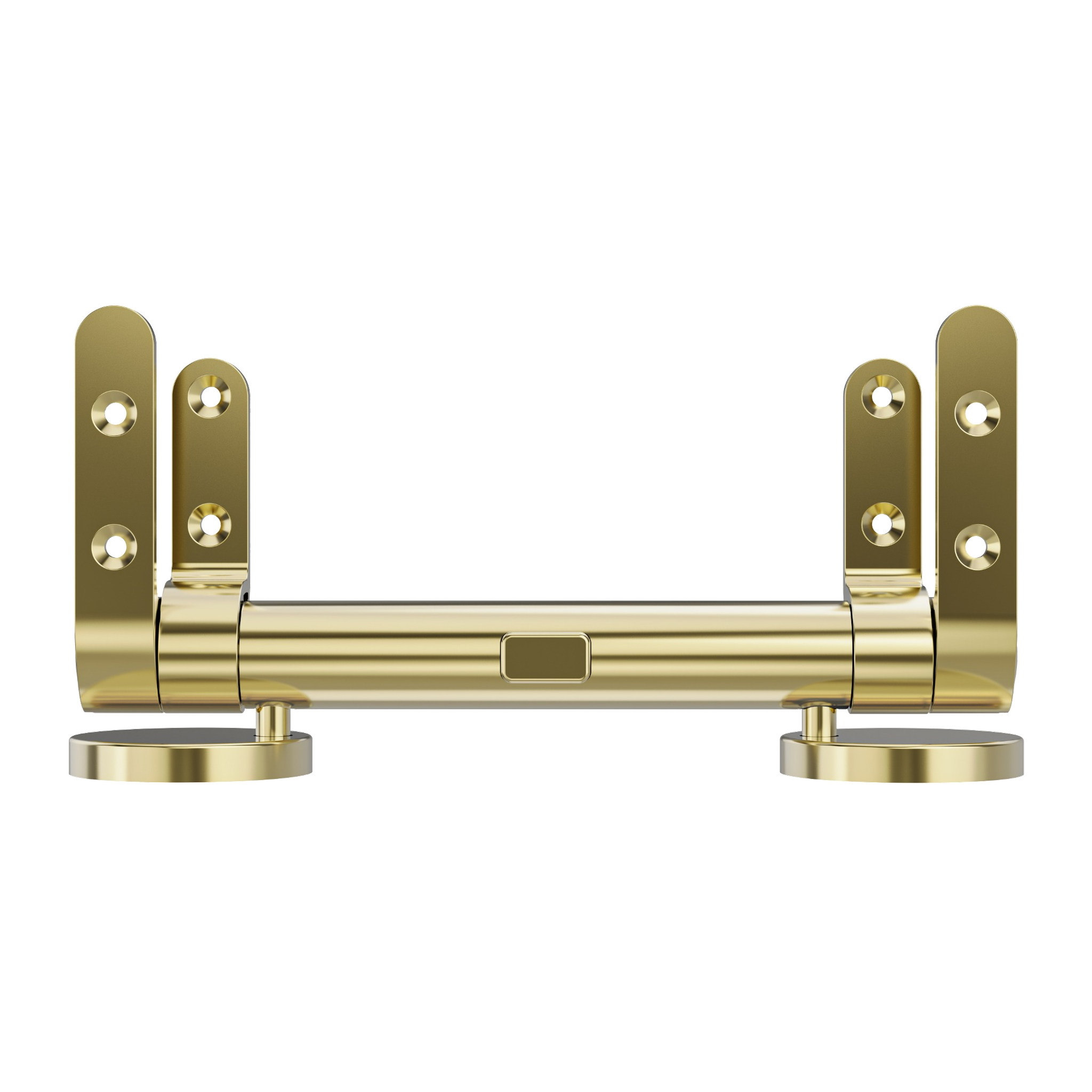

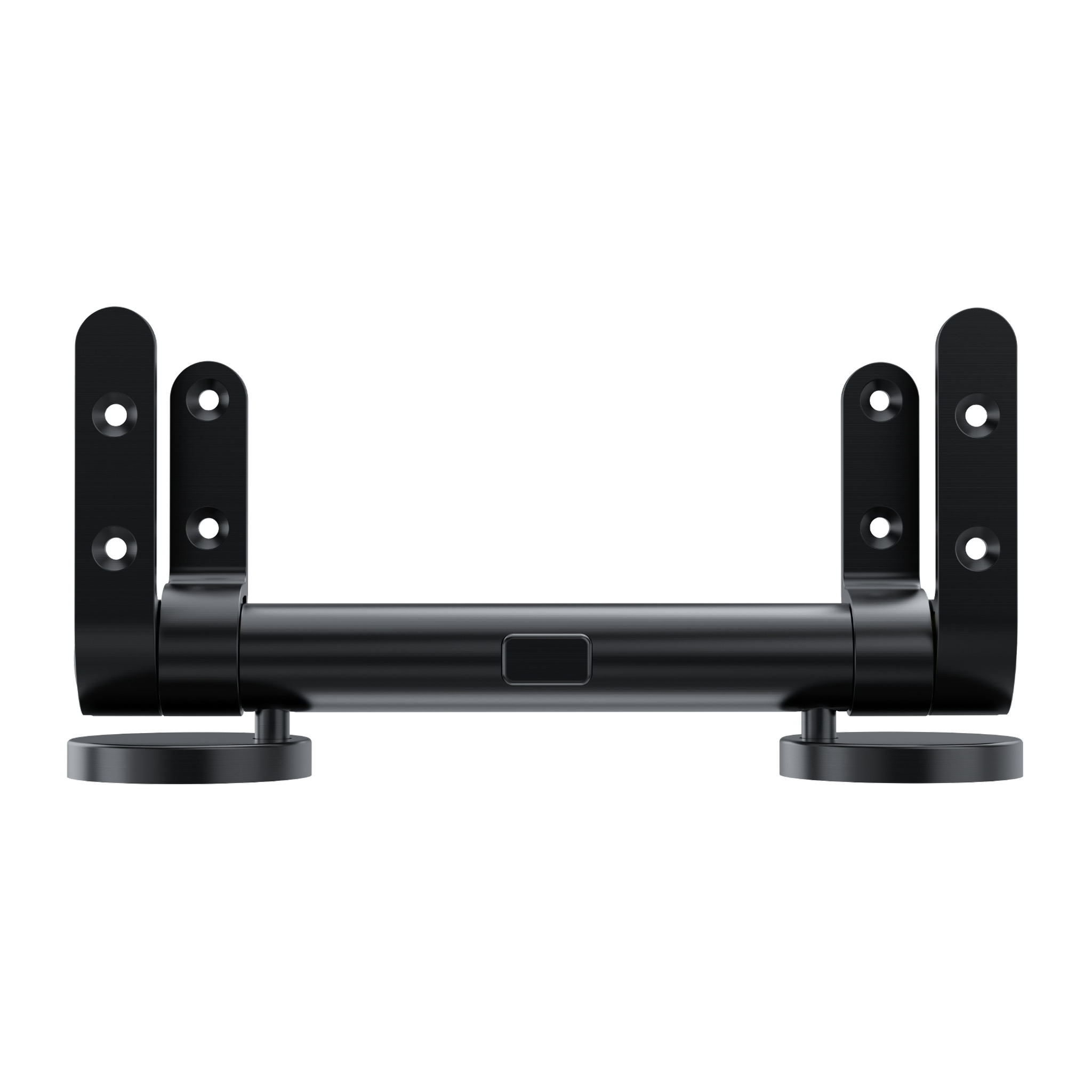

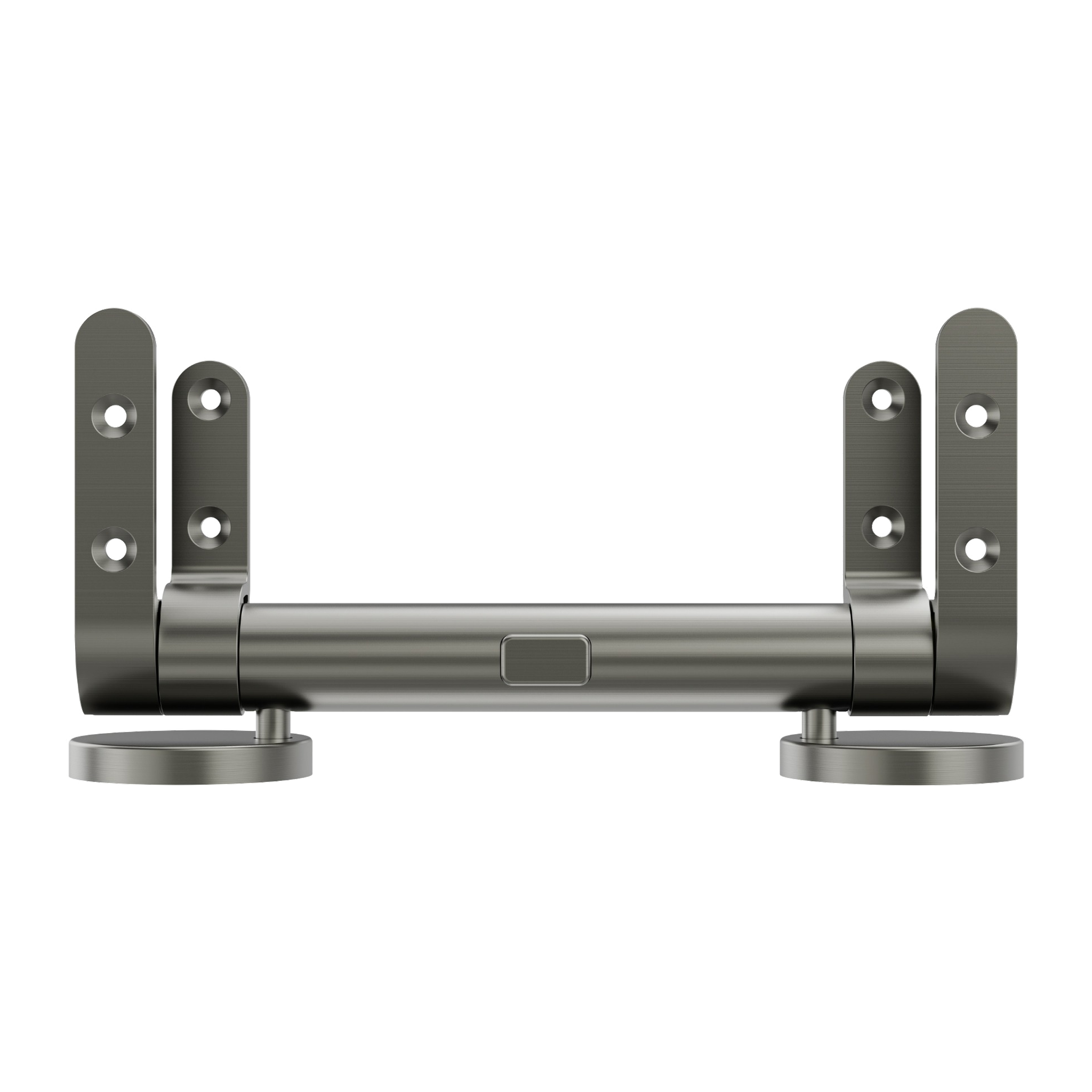

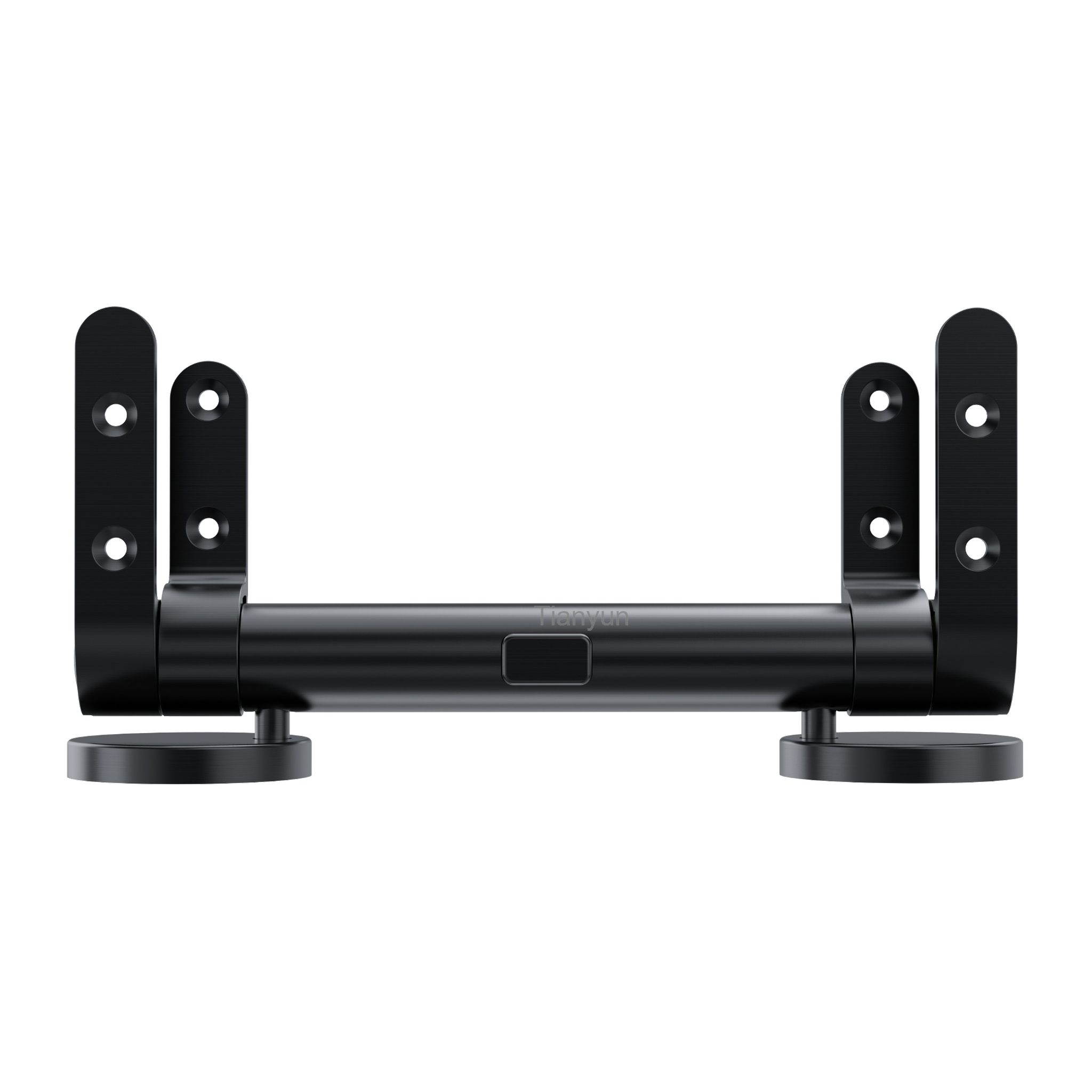

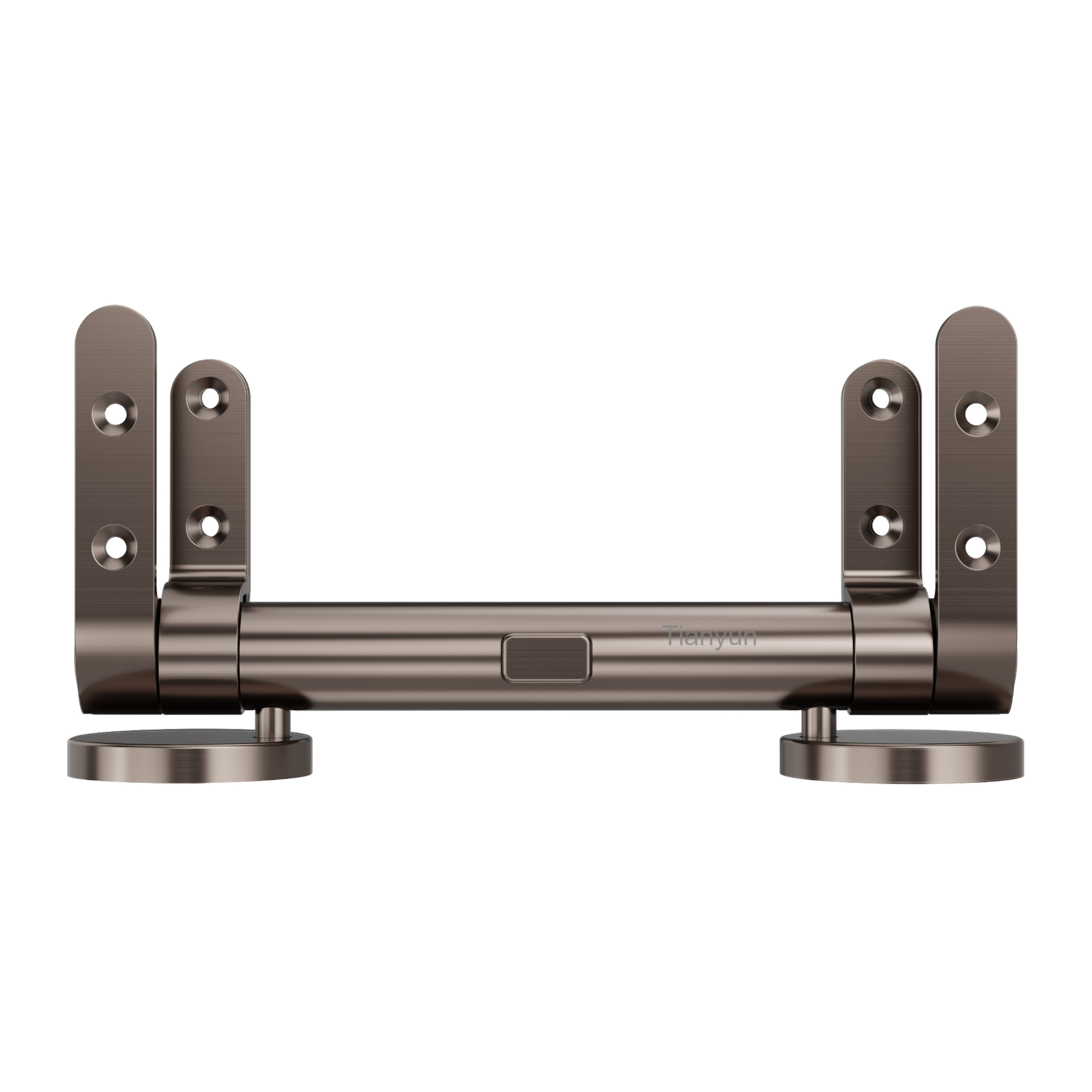

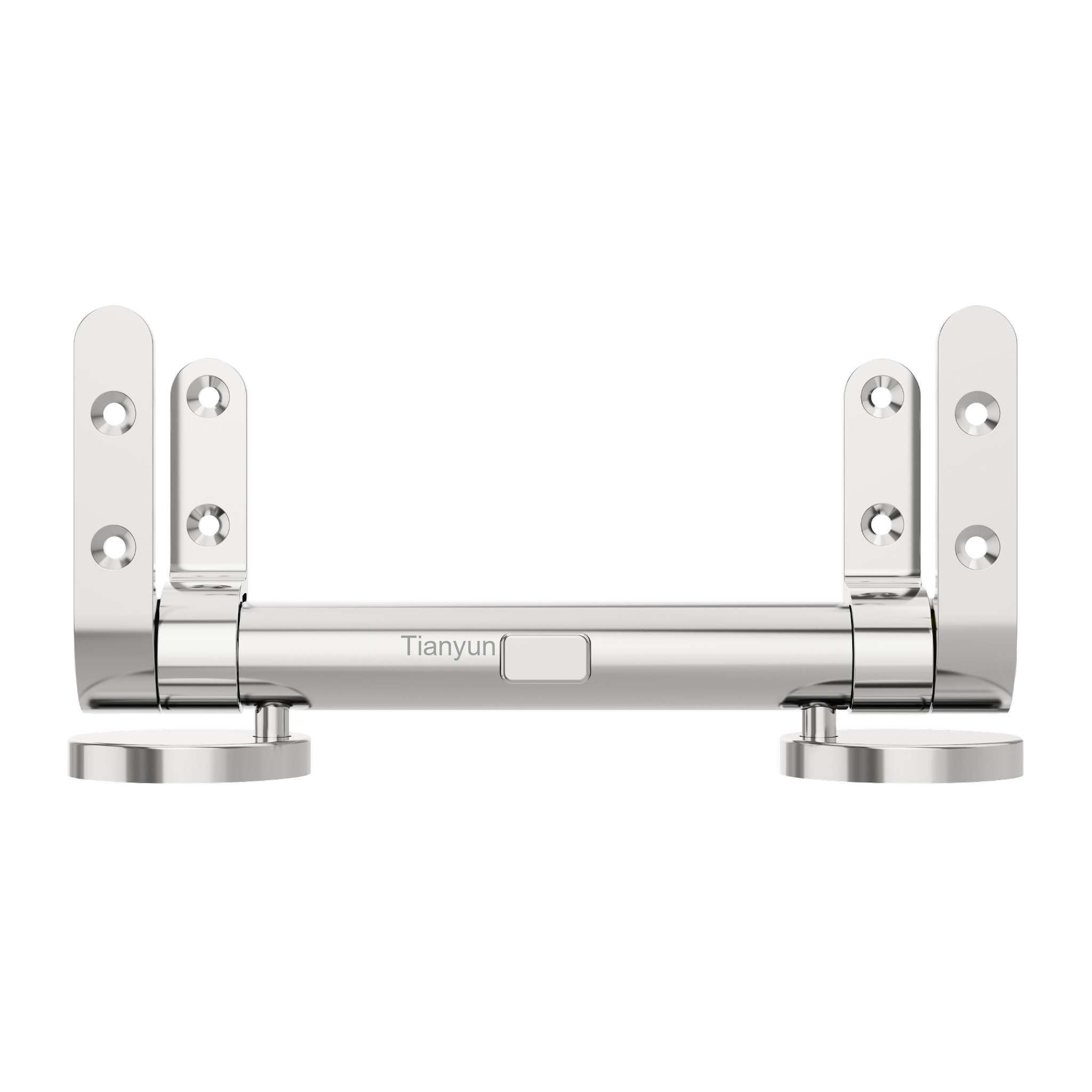

138mm Heavy Duty Stainless Steel Soft Close Hinge for MDF,Wood and Resin Soft Close Toilet Seats product view
138mm Heavy Duty Stainless Steel Soft Close Hinge for MDF,Wood and Resin Soft Close Toilet Seats product view
138mm Heavy Duty Stainless Steel Soft Close Hinge for MDF,Wood and Resin Soft Close Toilet Seats product view
138mm Heavy Duty Stainless Steel Soft Close Hinge for MDF,Wood and Resin Soft Close Toilet Seats product view
138mm Heavy Duty Stainless Steel Soft Close Hinge for MDF,Wood and Resin Soft Close Toilet Seats product view
138mm Heavy Duty Stainless Steel Soft Close Hinge for MDF,Wood and Resin Soft Close Toilet Seats product view
138mm Heavy Duty Stainless Steel Soft Close Hinge for MDF,Wood and Resin Soft Close Toilet Seats product view

Technical Specifications

Specification
Value
Product CODE
TY-D25/L138
Product Type
Vane Damper One Button Damper Dual Button Damper Rotary Damper Pull-Out Damper
Slow Close Time
10-20S
Silicone Oil
Imported
Core / Shaft Material
PA66 + 50% GF Zinc Alloy POM+30%GF
Housing Material
POM+30%GF PA66+30%GF PBT PA66+50%GF
Opening Angle
110°
Rotation Direction
One-way Two-way
Adjustable Torque Or Not
Yes No
Torque Range
1.5-3.5 N·m 1.5-4 N·m 1.5-4.5 N·m Custom Torque
Color
Custom
Working Temperature
-10℃-50℃
Application
Toilet Seat Rice Cooker Air Cooler Washing Machine Air Purifier Coffee Machine Smart Trash Can Vacuum Dust Bin Other Home Appliances
OEM / ODM Service
Available

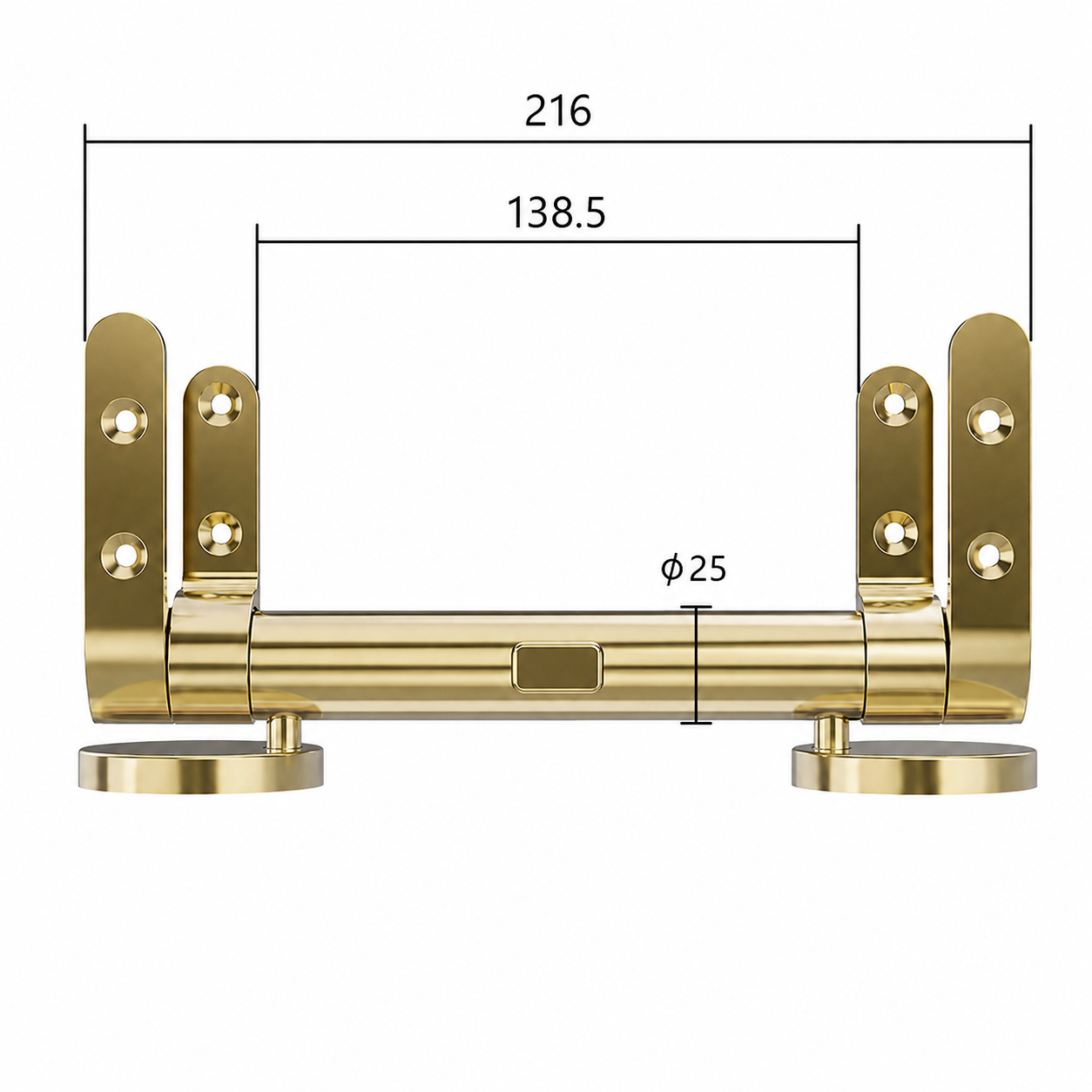

Dimensions & Technical Drawing

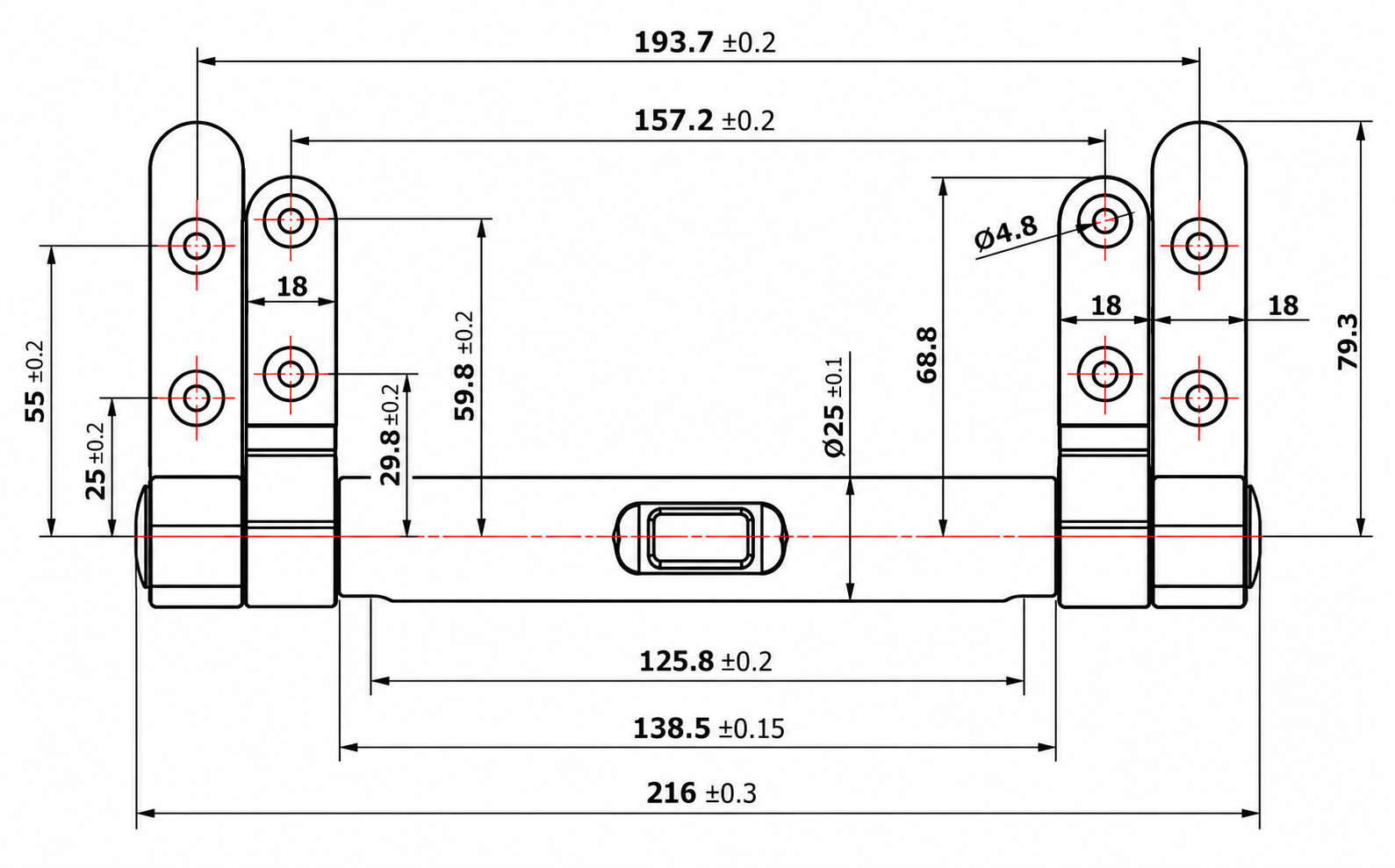

138mm Heavy Duty Stainless Steel Soft Close Hinge for MDF,Wood and Resin Soft Close Toilet Seats dimensions

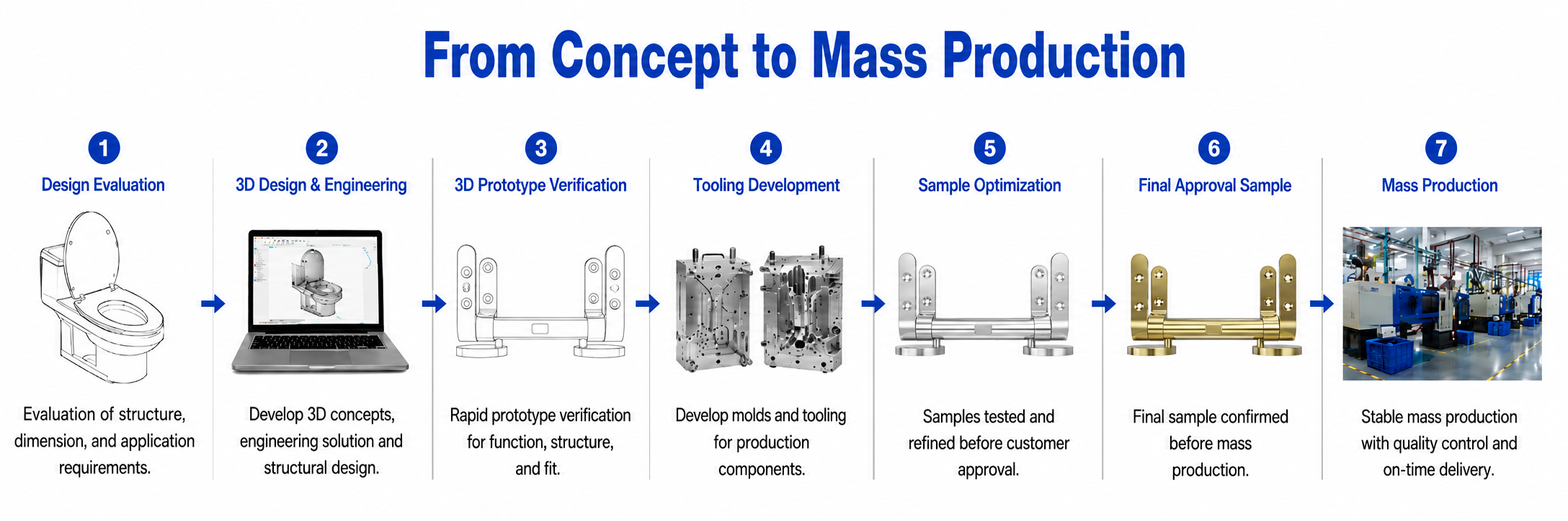

Development & Manufacturing Process

Development process for 138mm Heavy Duty Stainless Steel Soft Close Hinge for MDF,Wood and Resin Soft Close Toilet Seats

Applications & Use Cases

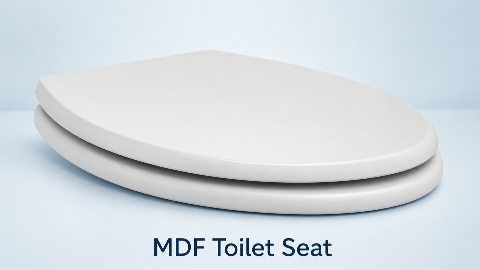

MDF Toilet Seat
MDF Toilet Seat

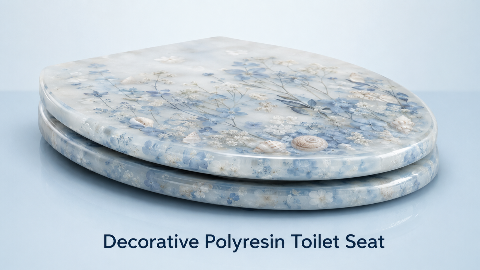

Resin toilet seat
Resin toilet seat

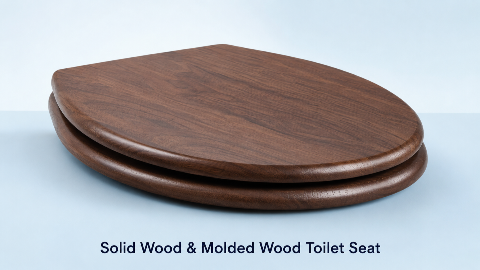

Wooden toilet seat
Wooden toilet seat
Bamboo toilet seat
Bamboo toilet seat
