130mm Gold One-Button Quick Release Soft Close Toilet Seat Hinge for Heavy Wooden and MDF Seats

This 130 mm gold-finish integrated hinge combines an ABS damper bar with zinc alloy mounting arms for MDF, solid wood, molded wood and resin toilet seat projects. The central button allows tool-free seat removal for cleaning. Built-in rotary damping controls seat and lid descent to reduce impact and noise. Mounting arms attach to the seat and lid with screws. Damping torque, mounting dimensions, fixing components and finishes can be customized to drawings or samples for OEM/ODM production.
130mm Gold One-Button Quick Release Soft Close Toilet Seat Hinge for Heavy Wooden and MDF Seats

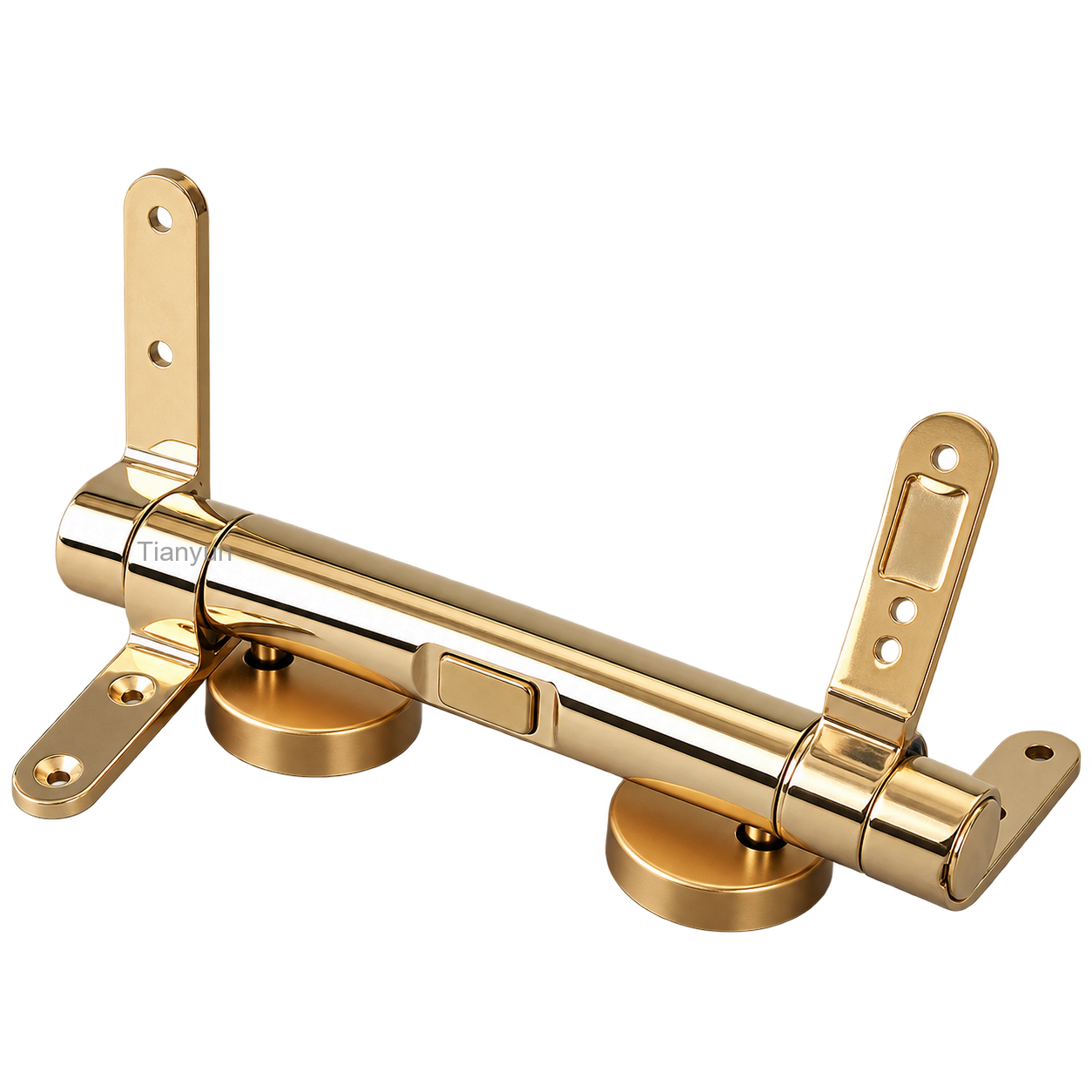

130mm Gold One-Button Quick Release Soft Close Toilet Seat Hinge for Heavy Wooden and MDF Seats product view
130mm Gold One-Button Quick Release Soft Close Toilet Seat Hinge for Heavy Wooden and MDF Seats product view

Technical Specifications

Specification
Value
Product CODE
TY-D25/L130
Product Type
Vane Damper One Button Damper Dual Button Damper Rotary Damper Pull-Out Damper
Slow Close Time
10-20S
Silicone Oil
Imported
Core / Shaft Material
PA66 + 50% GF Zinc Alloy POM+30%GF
Housing Material
POM+30%GF PA66+30%GF PBT PA66+50%GF
Opening Angle
110°
Rotation Direction
One-way Two-way
Adjustable Torque Or Not
Yes No
Torque Range
1.5-3.5 N·m 1.5-4 N·m 1.5-4.5 N·m Custom Torque
Color
Custom
Working Temperature
-10℃-50℃
Application
Toilet Seat Rice Cooker Air Cooler Washing Machine Air Purifier Coffee Machine Smart Trash Can Vacuum Dust Bin Other Home Appliances
OEM / ODM Service
Available

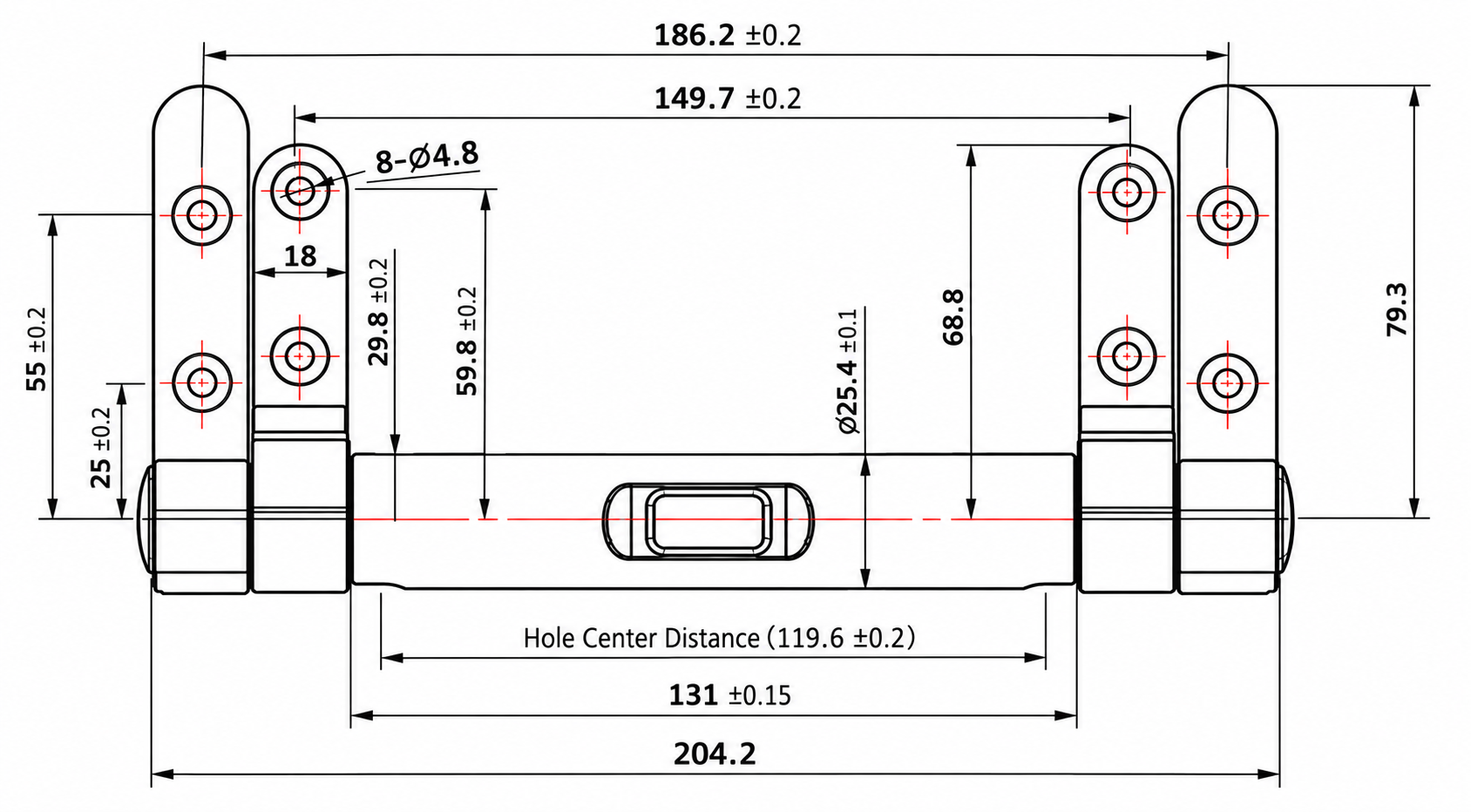

Dimensions & Technical Drawing

130mm Gold One-Button Quick Release Soft Close Toilet Seat Hinge for Heavy Wooden and MDF Seats dimensions

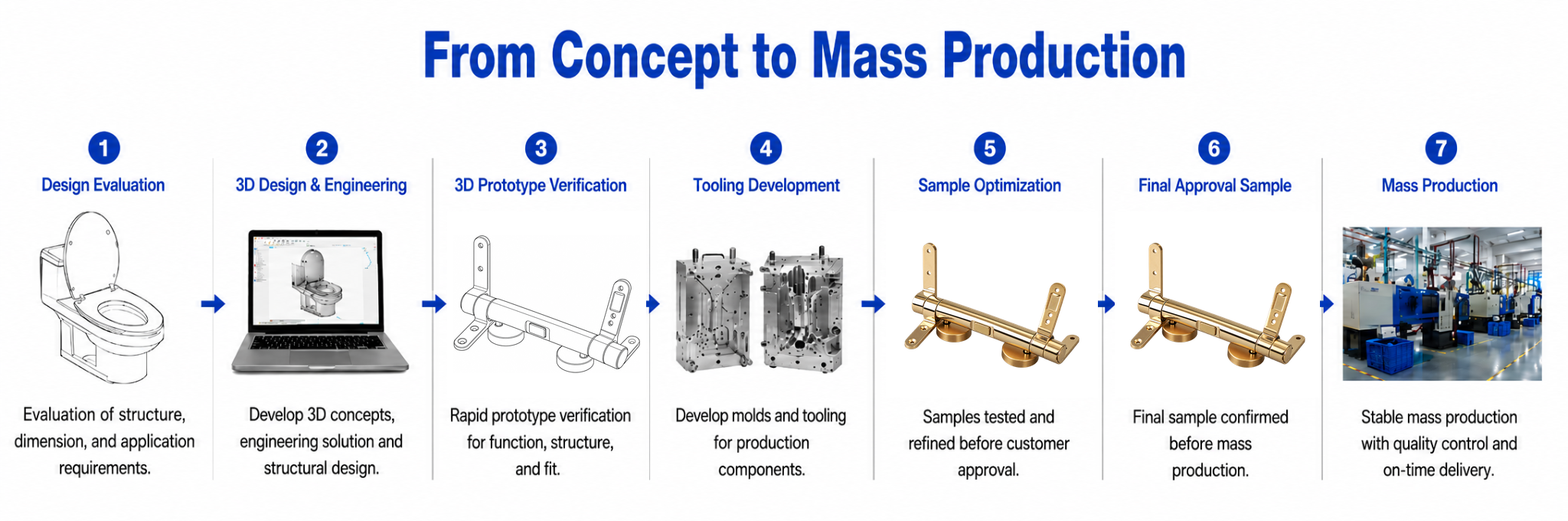

Development & Manufacturing Process

Development process for 130mm Gold One-Button Quick Release Soft Close Toilet Seat Hinge for Heavy Wooden and MDF Seats

Applications & Use Cases

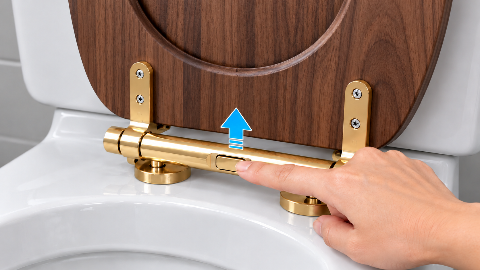

Wooden Toilet Seat
Wooden Toilet Seat

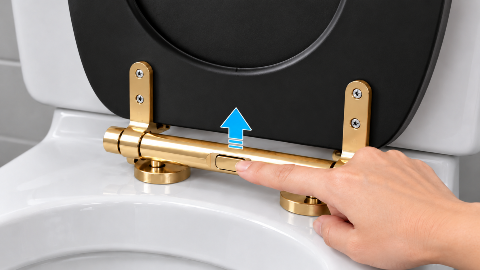

MDF Toilet Seat
MDF Toilet Seat

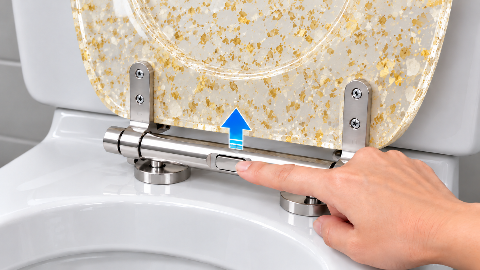

Resin Toilet Seat
Resin Toilet Seat

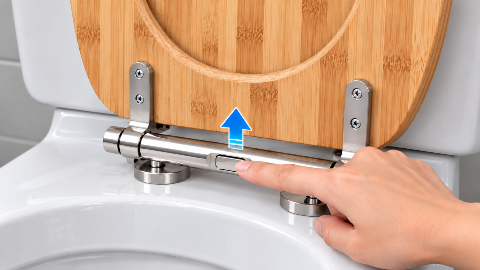

Bamboo Toilet Seat
Bamboo Toilet Seat
