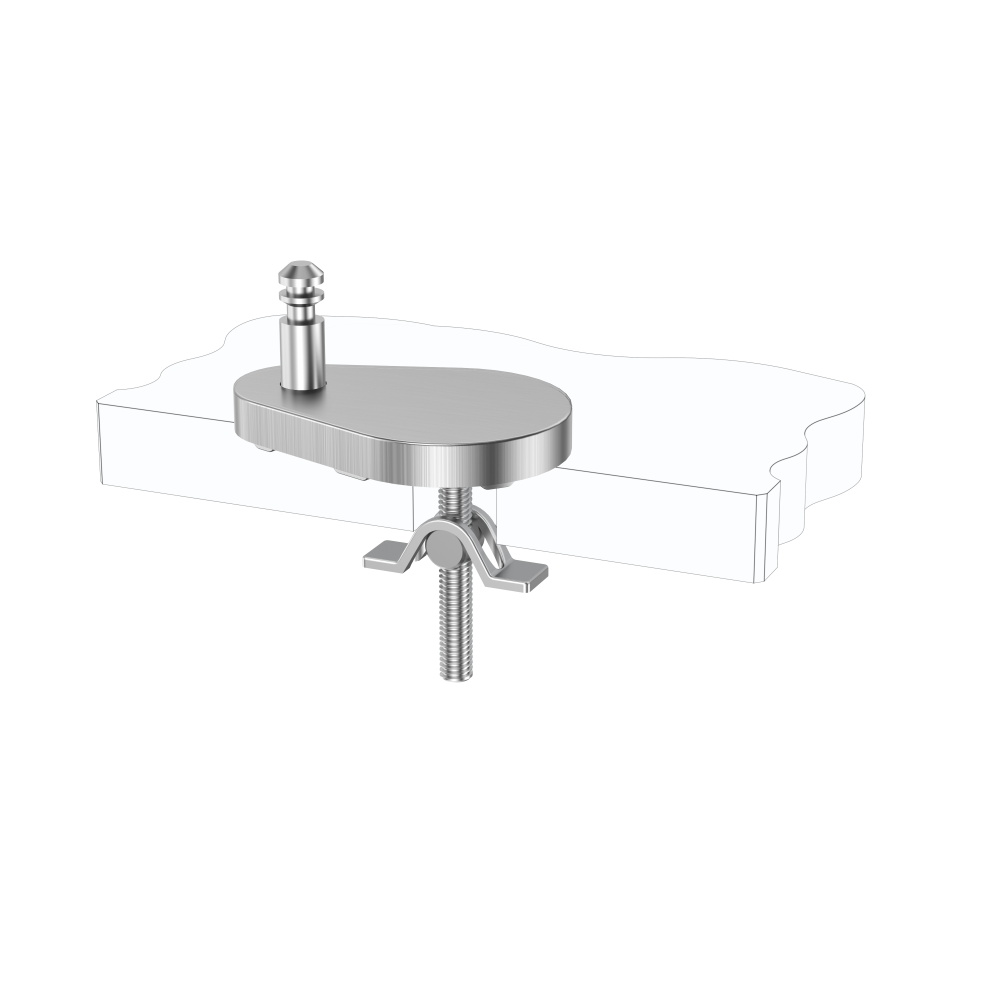

The Arch Top Fixing Base Set is a complete toilet seat mounting solution consisting of the upper decorative base system and lower top fixing components. The arch-type locking structure allows installation entirely from the top side of the ceramic bowl, eliminating the need to access the underside during assembly.
Compared with traditional bottom fixing systems, this solution offers faster installation, improved user convenience, and greater compatibility with modern toilet designs. The stainless steel cover enhances product appearance while protecting internal mounting components.
The system can be customized with different base diameters, cover finishes, hinge pin structures, screw specifications, and fixing configurations to match various toilet seat hinge and damper systems.
| Item | Specification |
| Product Type | Toilet Seat Base Set |
| Installation Method | Top Fixing |
| Cover Material | Stainless Steel / Plastic Optional |
| Base Type | Adjustable or Fixed |
| Base Shape | Round, Teardrop, Oval, Custom |
| Screw Specification | M5 / M6 |
| Compatible Seat Types | UF, PP, MDF, Wooden, Resin |
| Quick Release Compatibility | Dual Button, Single Button, Keyless |
| OEM Customization | Available |
| Surface Finish | Polished, Brushed, PVD Coating |
| Application | Soft Close Toilet Seat Systems |
The arch top fixing design allows installation from above the ceramic surface, reducing installation time and improving user convenience.
The stainless steel cover provides a modern and high-end appearance suitable for premium toilet seat projects.
Base diameter, cover material, pin structure, screw length, and mounting configurations can be customized according to customer requirements.
Suitable for button-release, keyless pull-out, and soft-close hinge applications.
The arch fixing structure provides reliable clamping force and long-term stability during daily use.
Ideal for toilet seat manufacturers, sanitary ware factories, and OEM bathroom hardware projects.
This Stainless Steel Arch Top Fixing Base Set is widely used in:
Designed for toilet seat manufacturers seeking reliable installation performance, premium appearance, and efficient mass-production compatibility.
