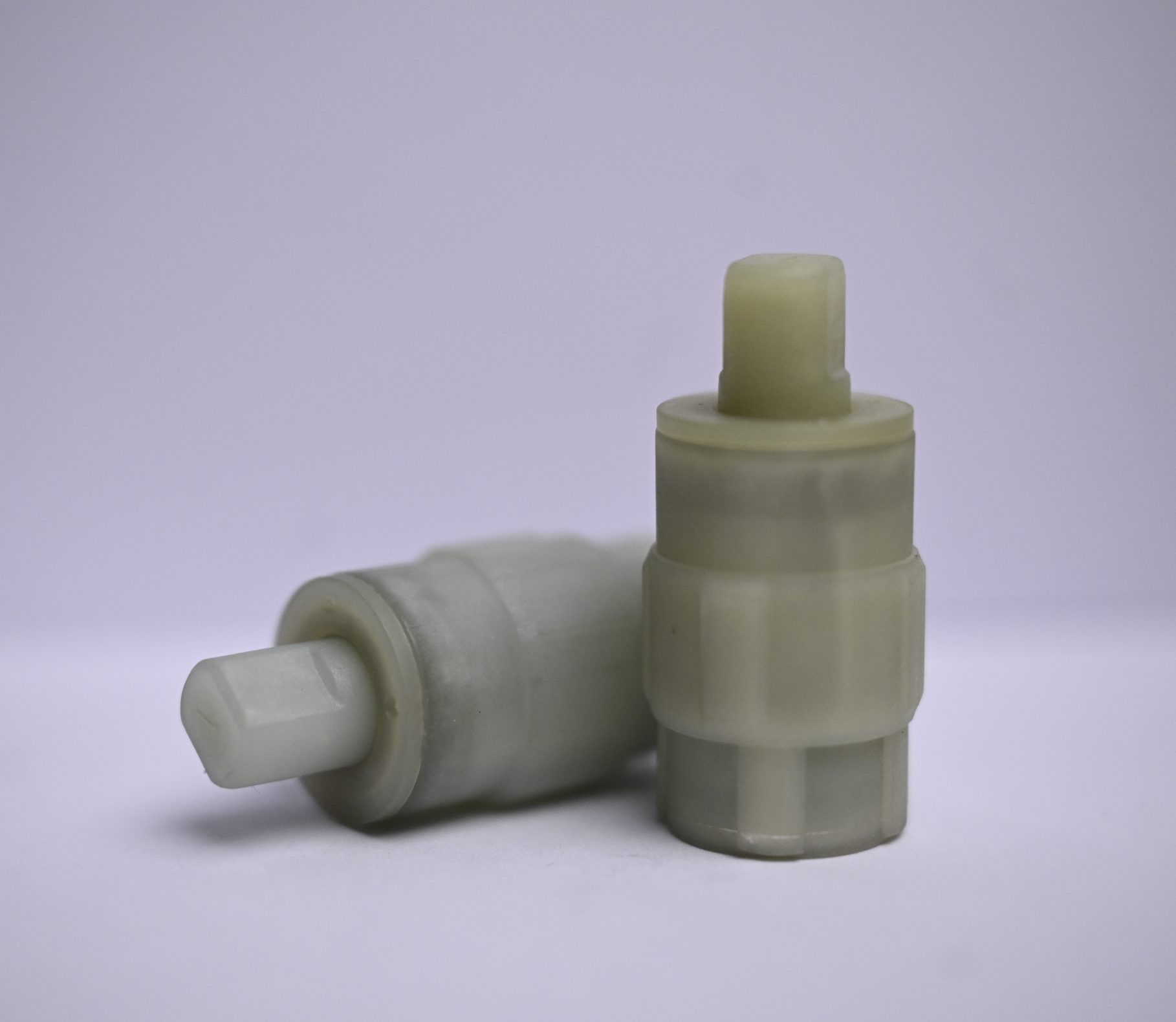

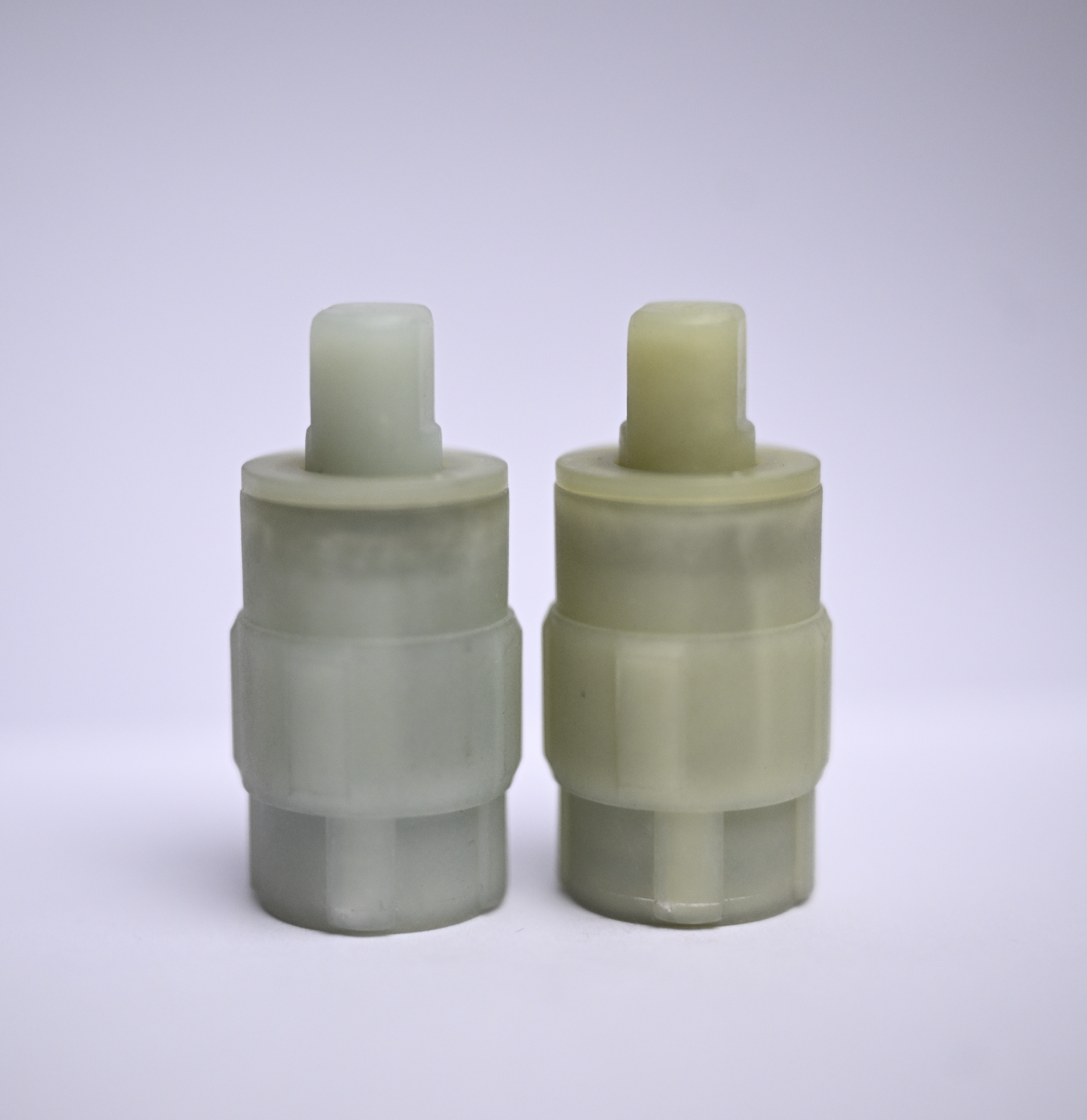

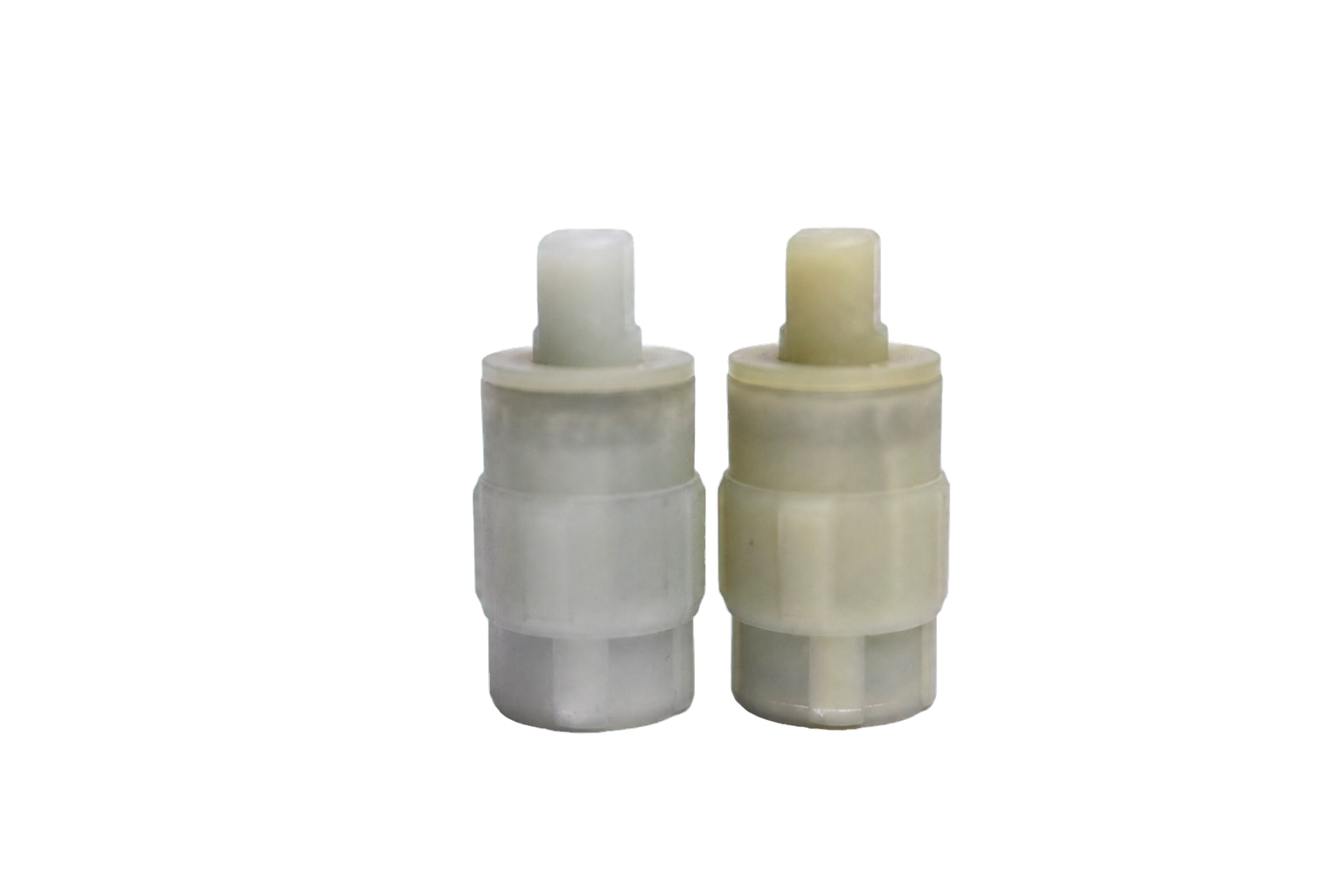

| Model | Diameter | Torque |

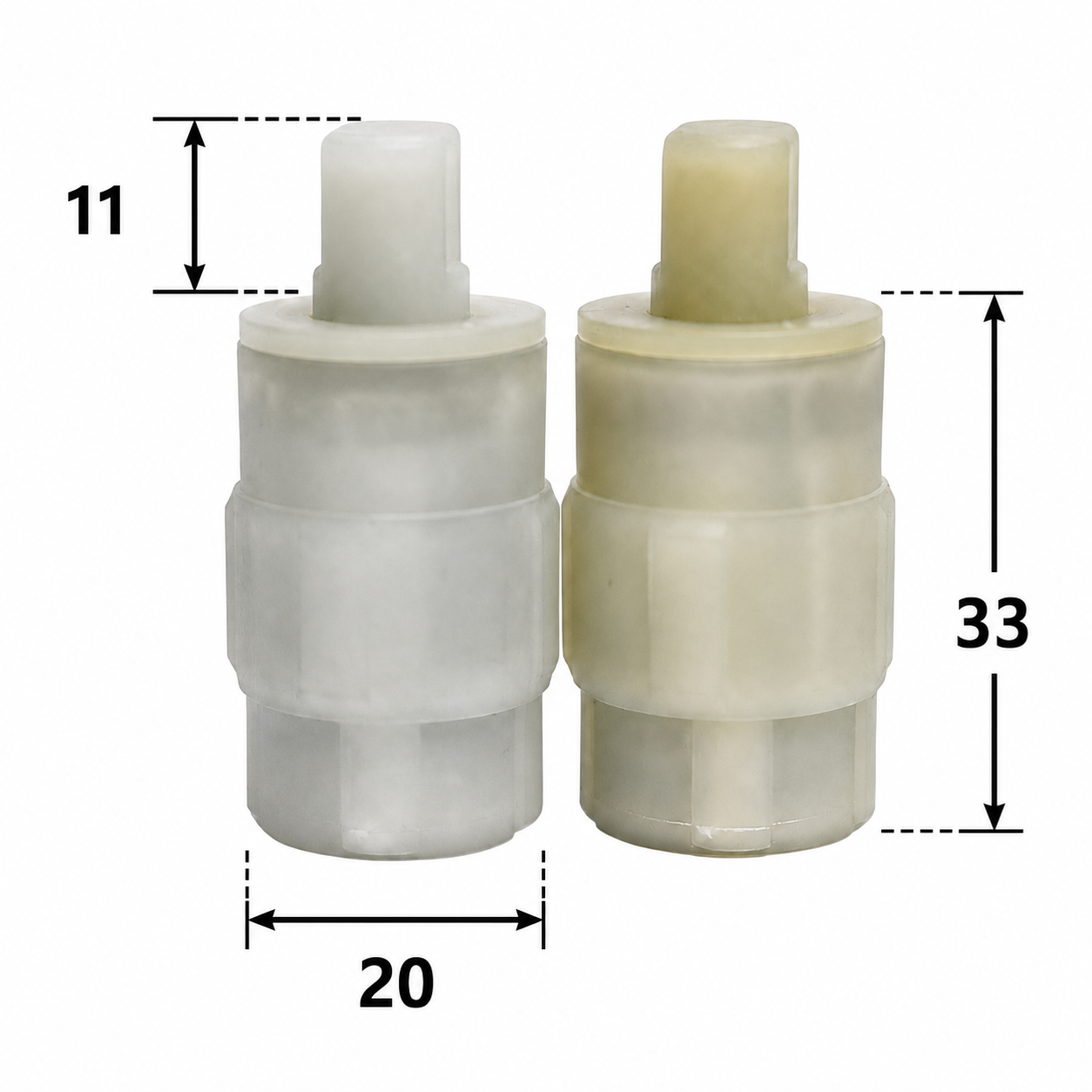

| TY-D4-20 | Ø20mm | 1.5 - 3.5 N·m |
Rotation Direction
Counterclockwise rotation: marked as “CCW”
Clockwise rotation: marked as “CW”
The product is adjustble torque design.
Specifications
| Slow Drop Parameter | |
| Max.Angle | 110° |
| Closing Time | 10s - 20s - from 70° to 0° under standard test conditions |
| Durability Cycles | 50,000 times |
| Static Load Test | 15,000 times |
| Torque Range | 1.5 - 3.5 N·m |
| Torque type | Adjusteble Troque |
| Main Material | |
| Housing | PA66+50%GF |
| shaft | PA66+50%GF |
| Temperature and Humidity | |
| Temperature | -5°C ~ 50°C |
| Humidity | 30% - 90% RH |
Speed Characteristics
The damping torque is proportional to the angular velocity. The actual torque may differ from the nominal value depending on operating conditions.
Temperature Characteristics
The damping torque decreases as ambient temperature increases, and increases as ambient temperature decreases.
