Action angle: 110°

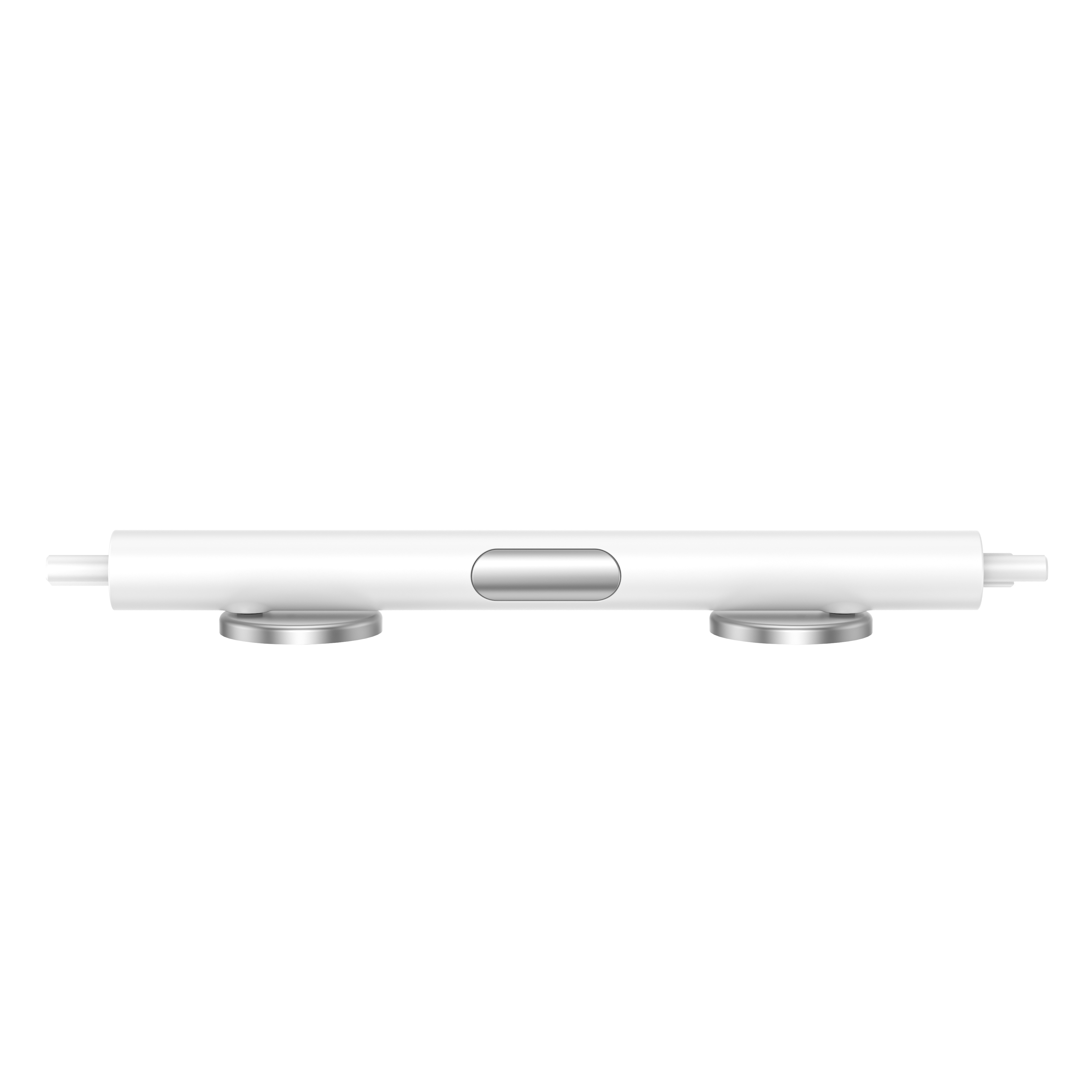

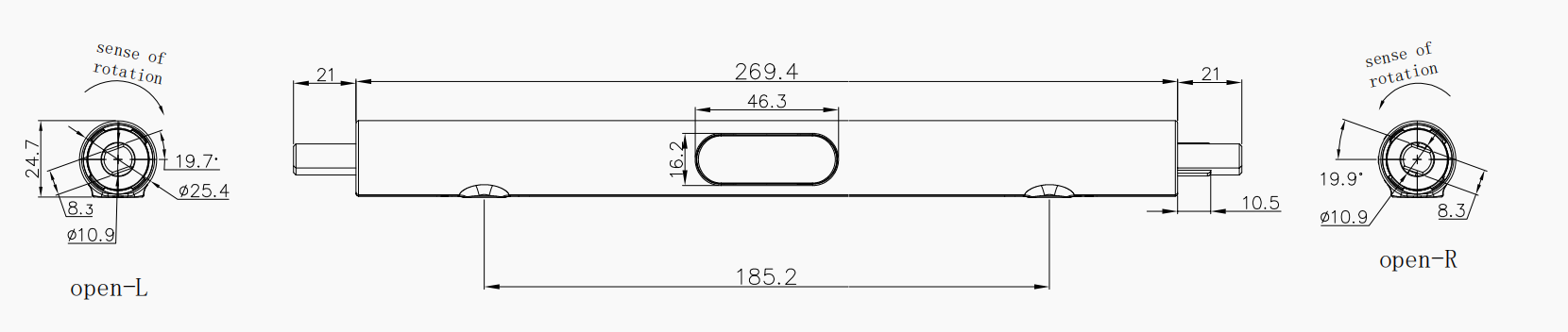

| Model | Diameter | Torque |
| TY - L270D25 | Ø25 mm | 5-20KGF.CM |
Counter clockwisc rotation, the productis labeicd as "CCW"
Clockwise rotation, the product is labeled as"CW"
The productis a fixed torque type damper, and the torque can not be adjusted.
| Project | Parameter |
| Maximum usage angle | 110° |
| Operating temperature | -5-50C |
| Product shell material | PA66 |
| Rotating shaft material | PA66 |
| Lubricating oil | Silicone oil |
Torque and speed is proportional to the speed increases or decreases, the static torque and the standard value is dfferent.
The temperature characteristic the ervirorment temperature increaseswhen the torque drops, the ervironment temperature drops thetorque to rise.
